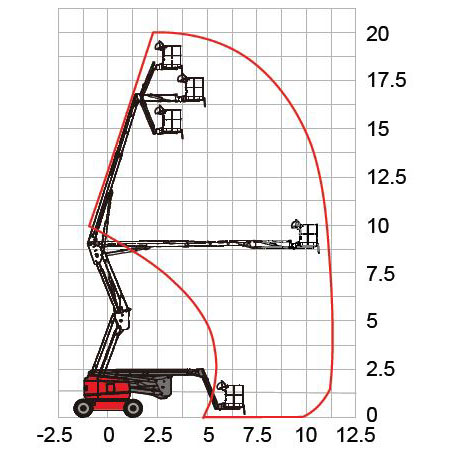

Working height max H1 | 20m |
---|---|
Platform height max H2 | 18m |
Max range | 11.1m |
Max. up and over clearance | 8.9m |
Lifting capacity | 230kg |
Platform dimension B*C*A | 2.4m × 0.9m × 1.1m |
Height D | 2.50m |
Length E | 8.60m |
Width F | 2.50m |
Wheelbase G | 2.50m |
Ground clearance H | 0.35m |
Rotation | 360° discontinuously |
Rear swing | |
Platform rotation | 0/180° |
Jib swing | 0/137° |
Platform level | Hydraulic level |
Speed, platform down | 4.8km/h |
Speed, platform up | 1.0km/h |
Gradeability | 30%(45%4WD) |
Drive wheel | 2/4WD |
Steering wheel | 2 |
Voltage | DC12V |
Controller | Electrical proportional control |
Turning radius outside | 5.4m |
Turning radius inside | 2.2m |
Lateral force N max | 400N |
Tilt angle max | 3° |
Wind speed allowed max | 12.5m/s |

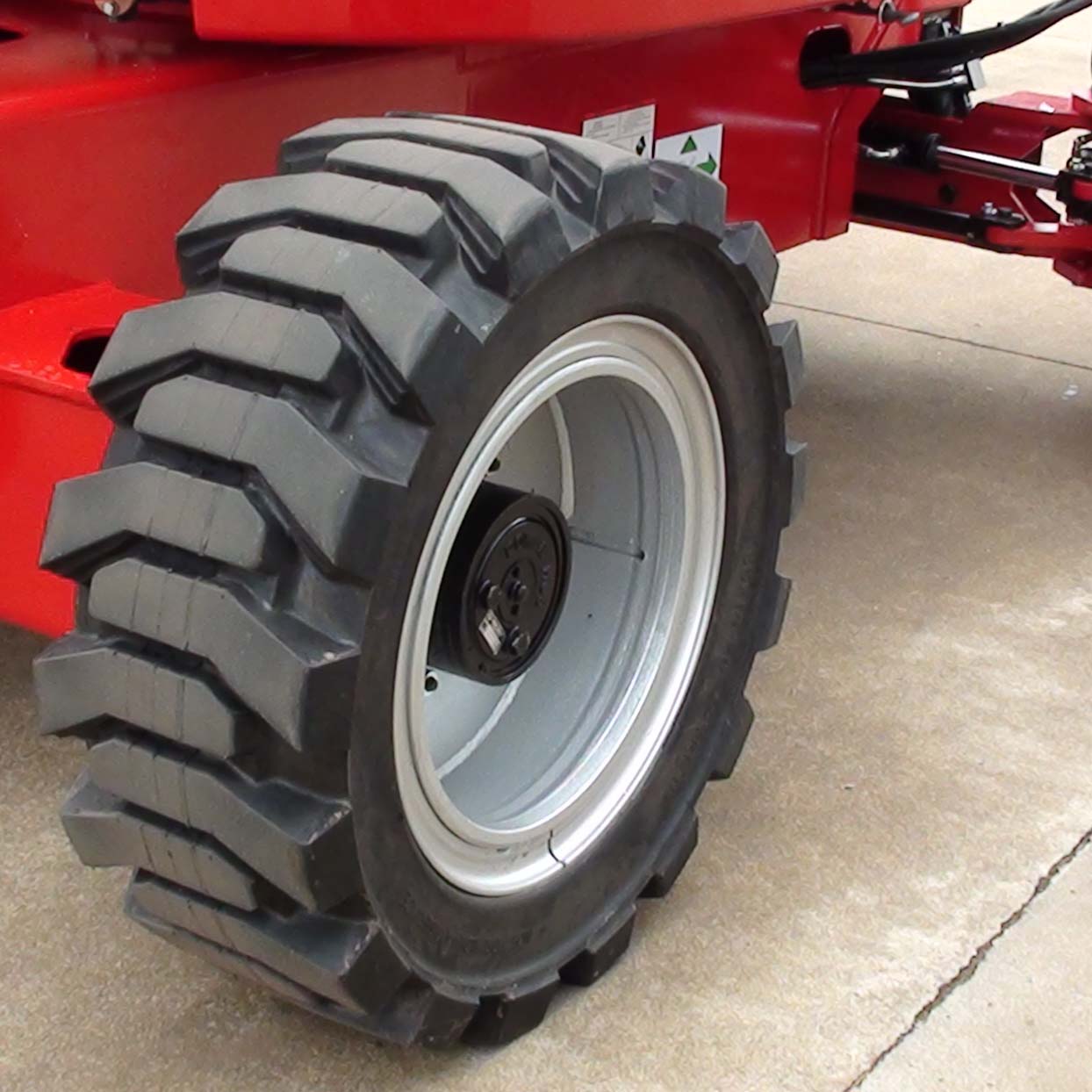

Tire | 355/55D-625 |
Power source | Yanmar 4TNV88 |
Weight | 11985 kg |
Dimensions | 860 × 250 × 250 cm |

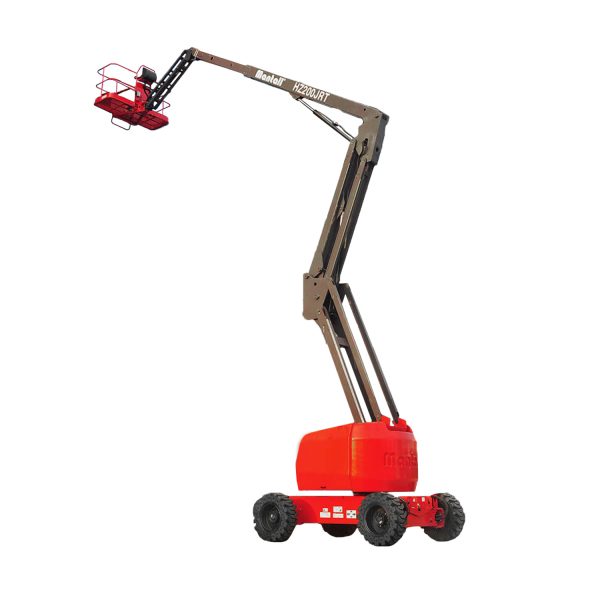

Mantall HZ200JRT – 20m

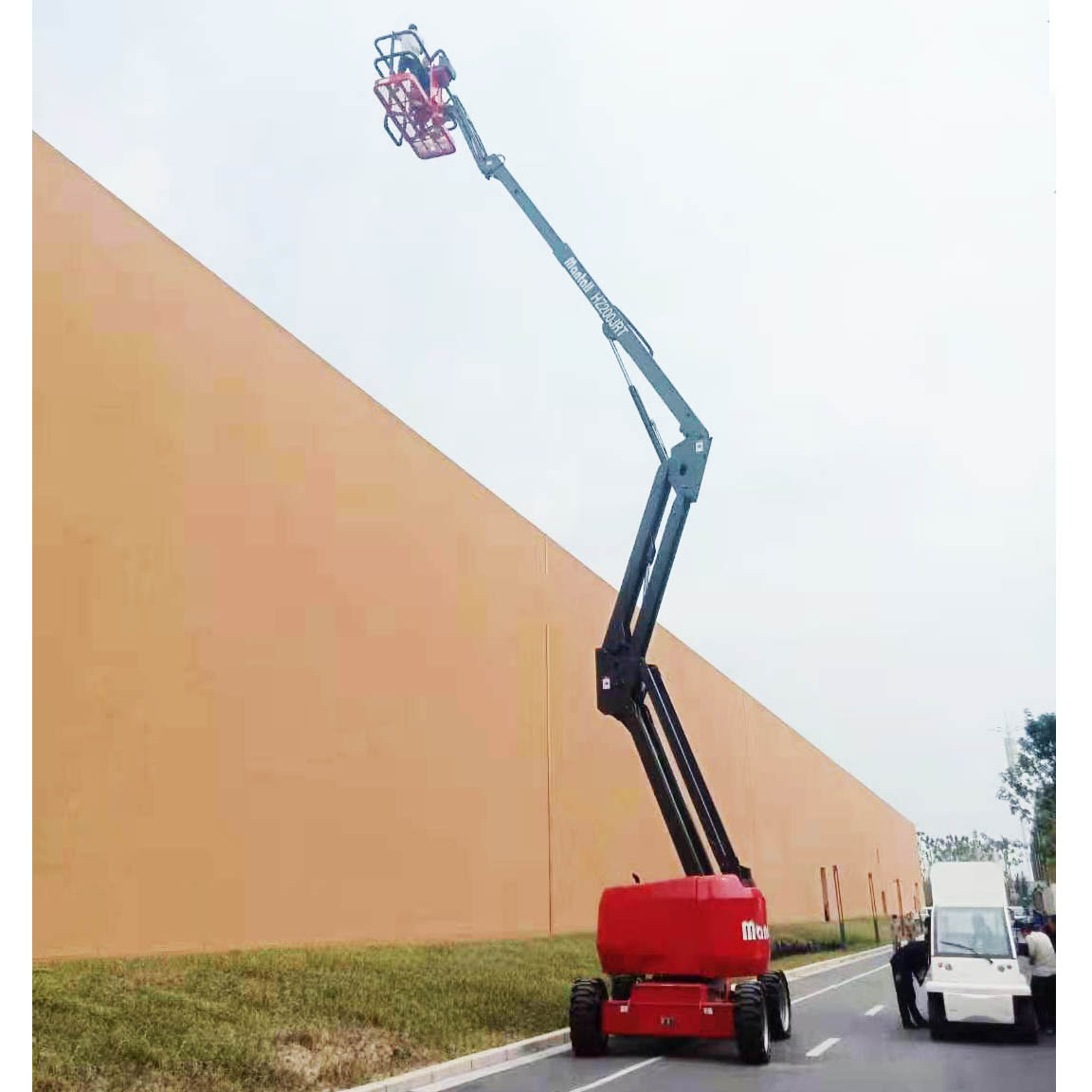

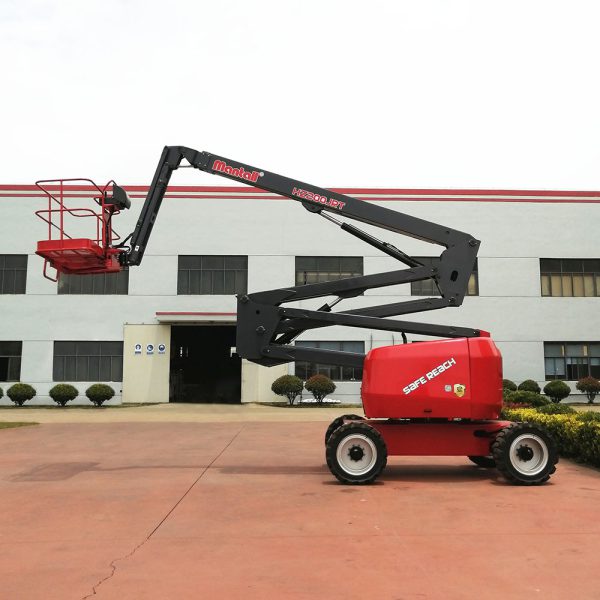

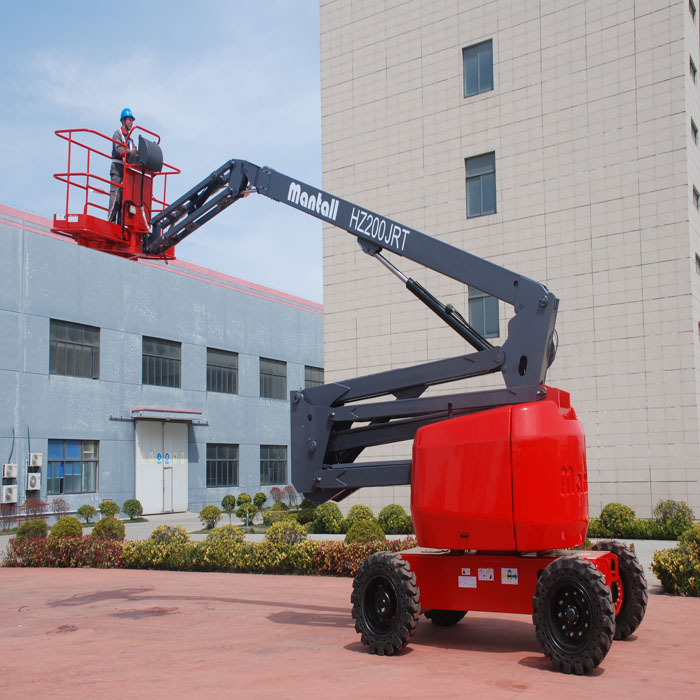

Our HZ200JRT self-propelled articulated boom lifts are designed to support working heights up to 20 meters, they are suited for multi-directional precise positioning and lifting operations and enable workers to reach work areas that are difficult to access while avoiding obstructions.
The self-propelled articulated boom lift makes it easier for workers to accomplish their tasks because of its 360-degree rotating turntable and working platform that can move up, down, left and right. It is also perfect for indoor applications and can protect flooring thanks to its ultra-quiet non-marking tires.

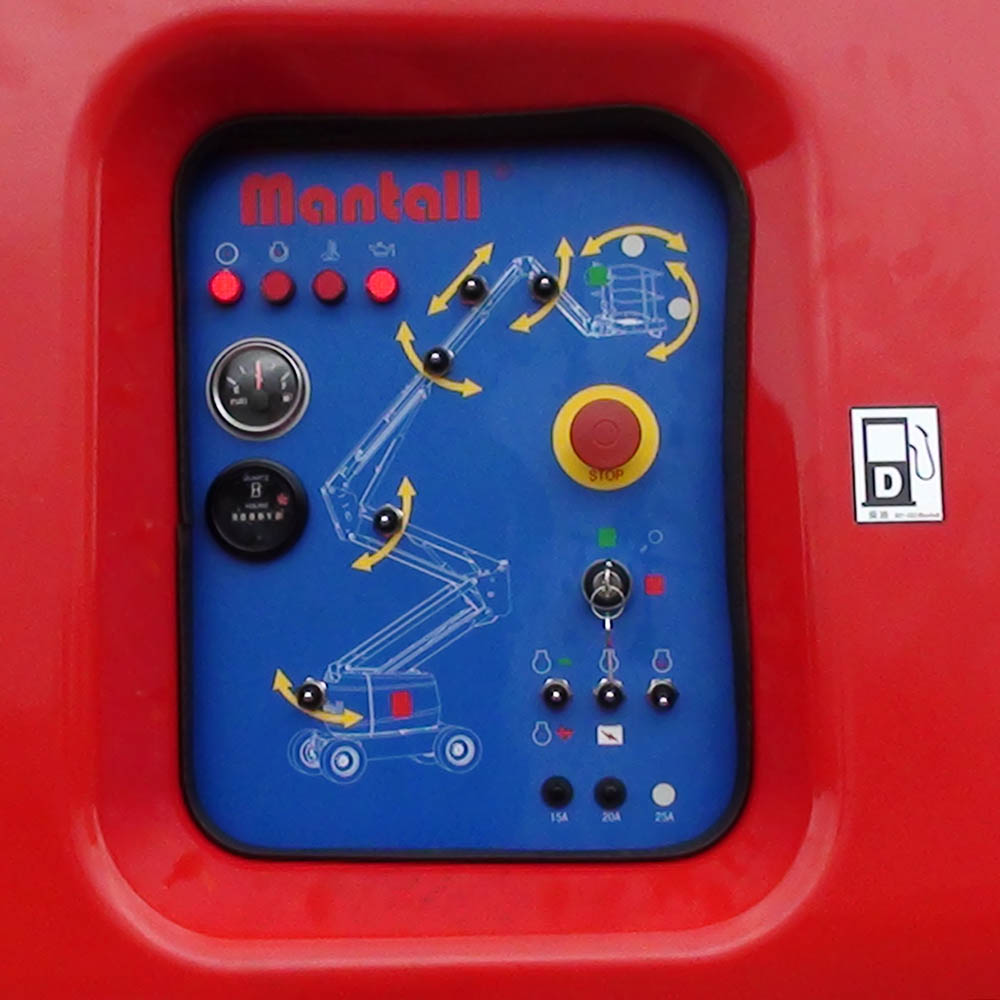

Our HZ200JRT self-propelled articulated boom lifts have a fully proportional Hall effect joystick and CAN intelligent control system, making maintenance and upgrading simpler while performing multiple actions simultaneously.
Call for Price
Saada taotlus- Self-leveling platform
- Hydraulic rotation platform
- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
Optional
- 2.4m platform
- Platform swing gate
- Platform alternate leverage
- Airline to platform
- Hydraulic oil cooler
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
