| Working height max H1 | 21.5m |
|---|---|
| Platform height max H2 | 19.5m |

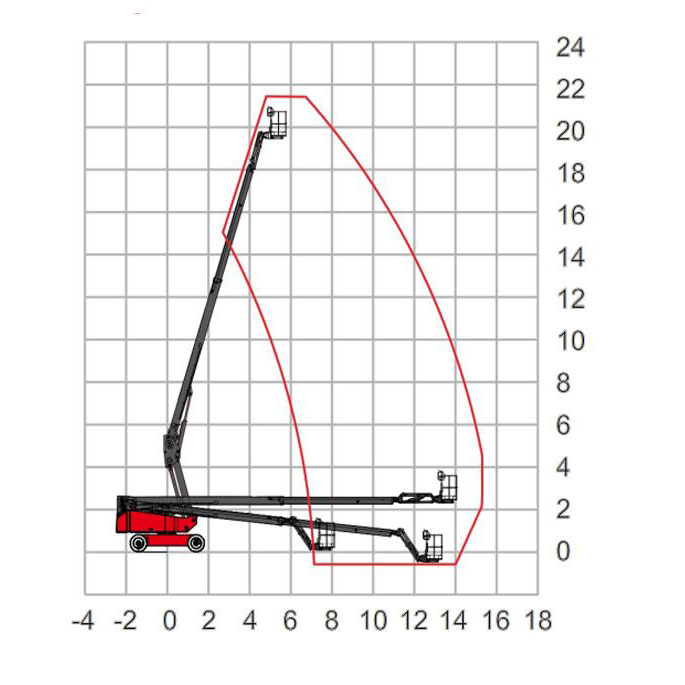

| Max range | 14.65m |
| Lifting capacity | 230kg |
| Platform dimension B*C*A | 1.8 * 0.76 * 1.1m |
| Height D | 2.5m |
| Length E | 10.6m |
| Width F | 2.5m |
| Wheelbase G | 2.8m |
| Ground clearance H | 0.3m |
| Rotation° | 360° |
| Rear swing | 1.2m |
| Platform rotation | 180° |
| Jib swing | 130°(+75°/-55°） |
| Speed, platform down | 5.1km/h |
| Speed, platform up | 1km/h |
| Max gradeability (4WD) | 45% |
| Turning radius inside | 2.9m |
| Turning radius outside | 6.12m |
| Drive wheel | 4 |
| Steering wheel | 2 |

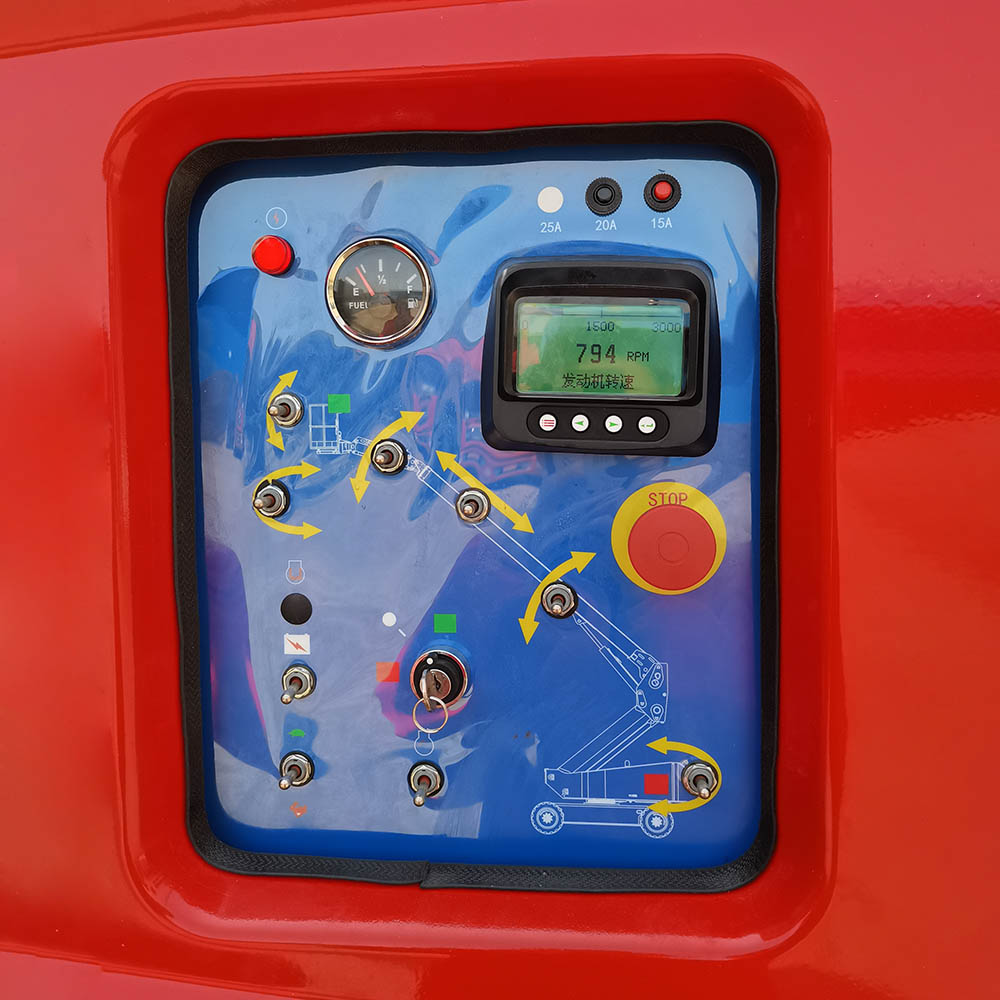

| Controller | Electro hydraulic proportional control |
| Voltage | DC 12V |

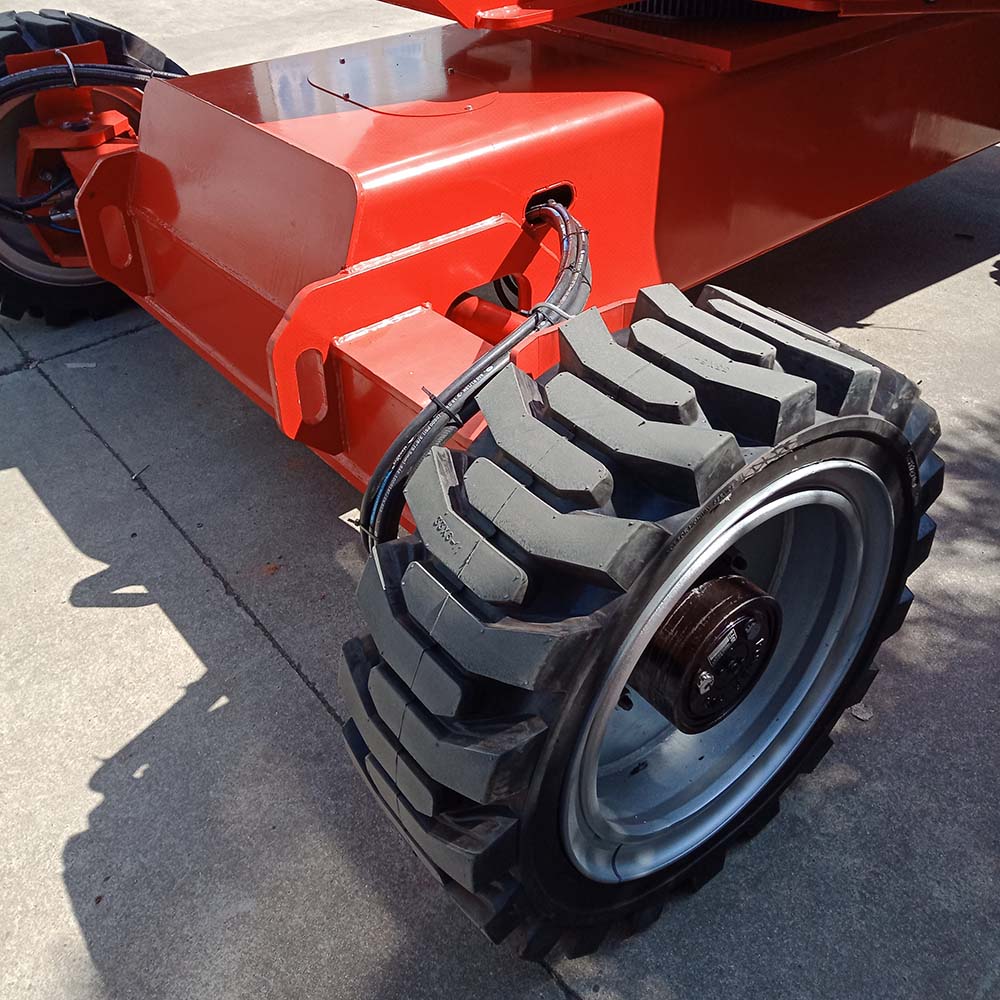

| Tire | 36*14-20; Rubber solid tires |

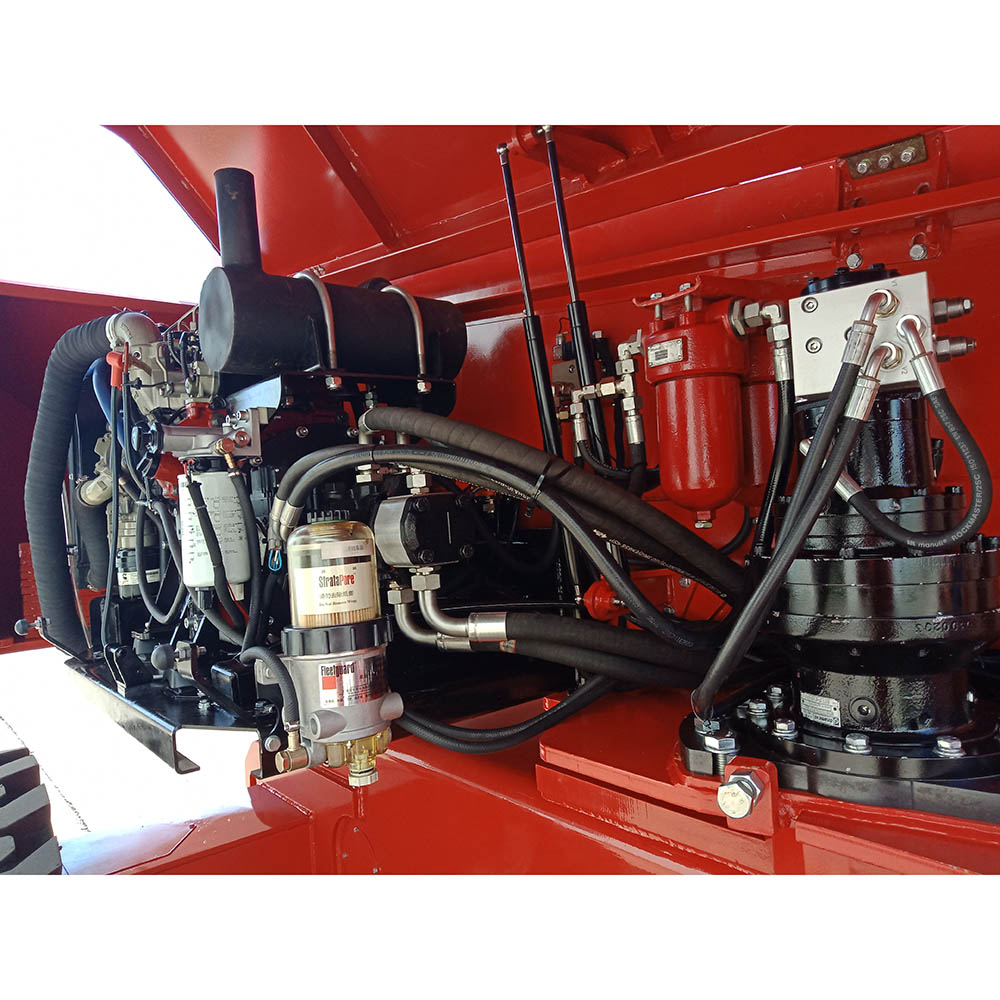

| Power source | Cummins engine QSF2.8T3 43kw |
| Kaal | 9510 kg |
| Mõõtmed | 1060 × 250 × 250 cm |

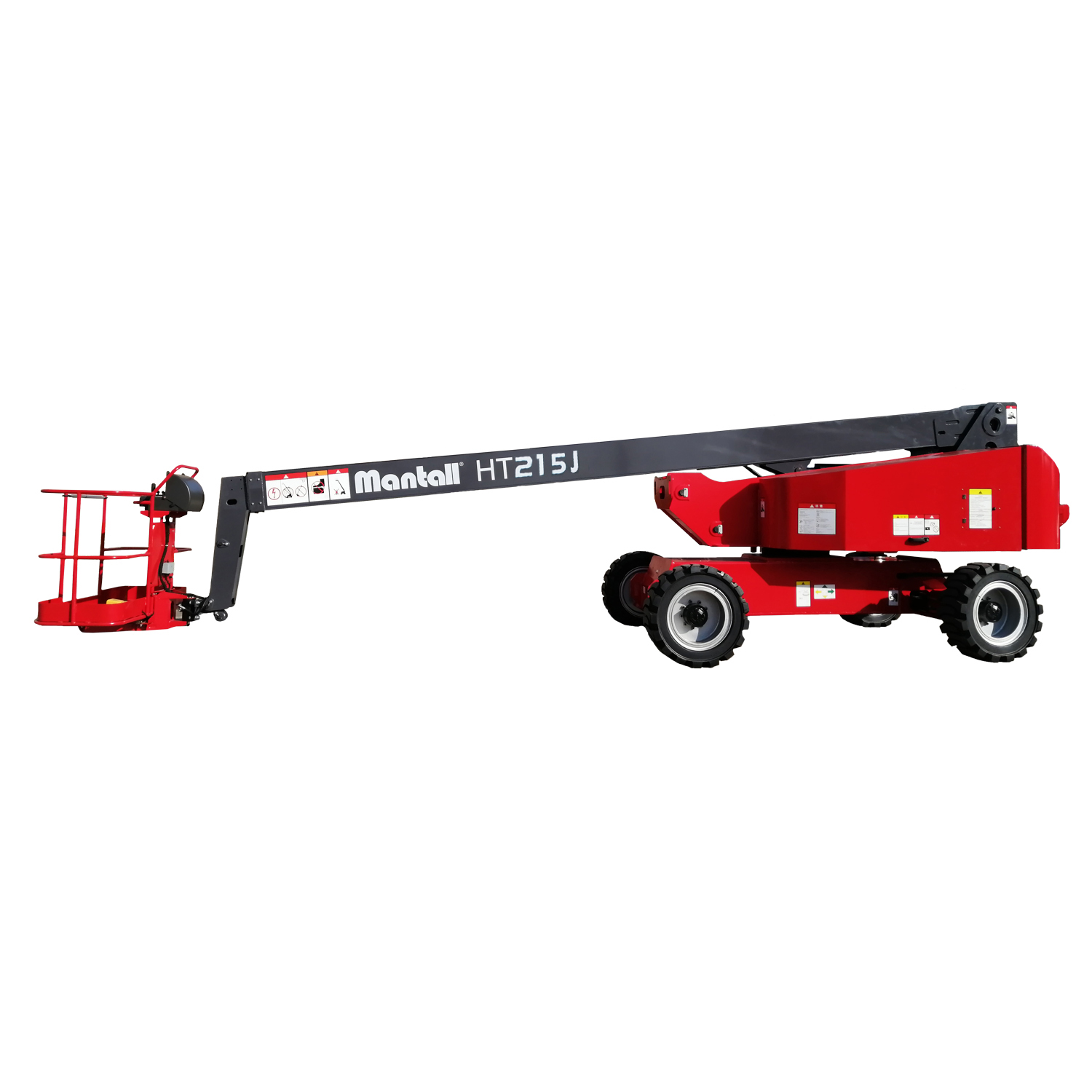

Mantall HT215J – 21.5m

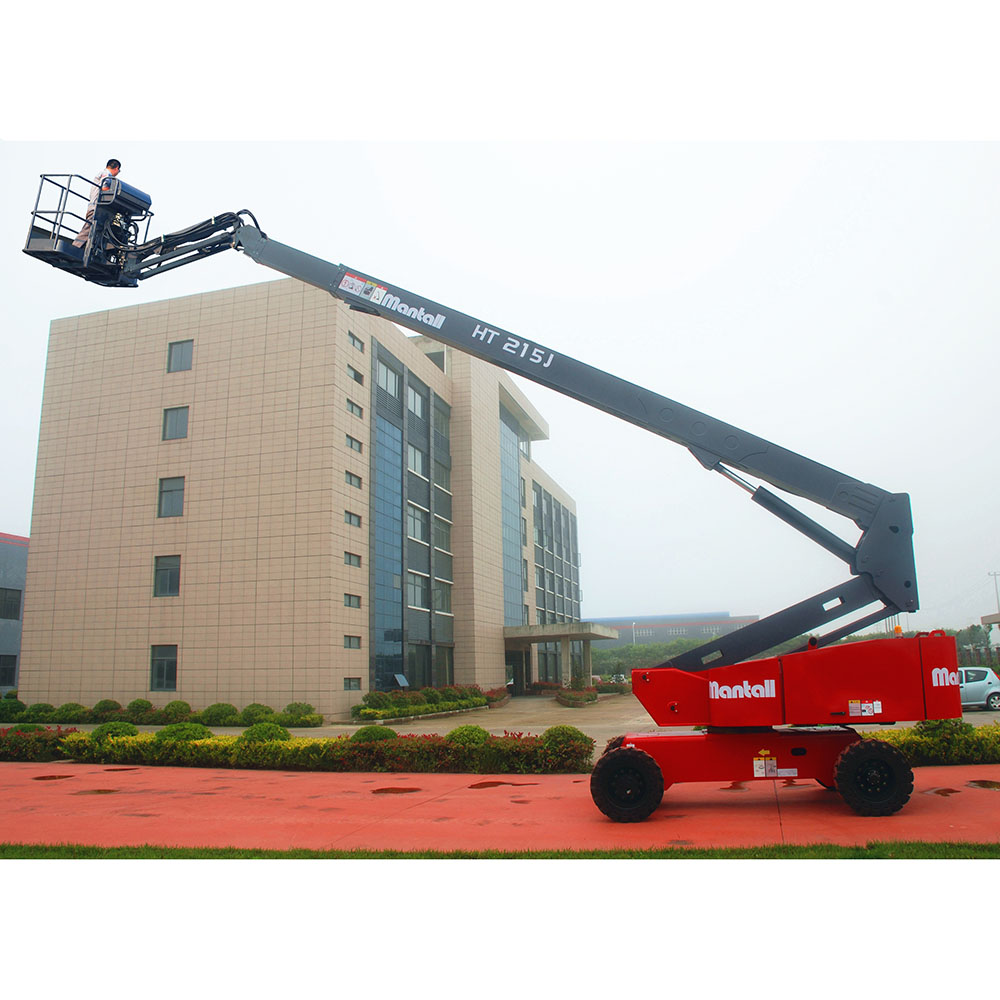

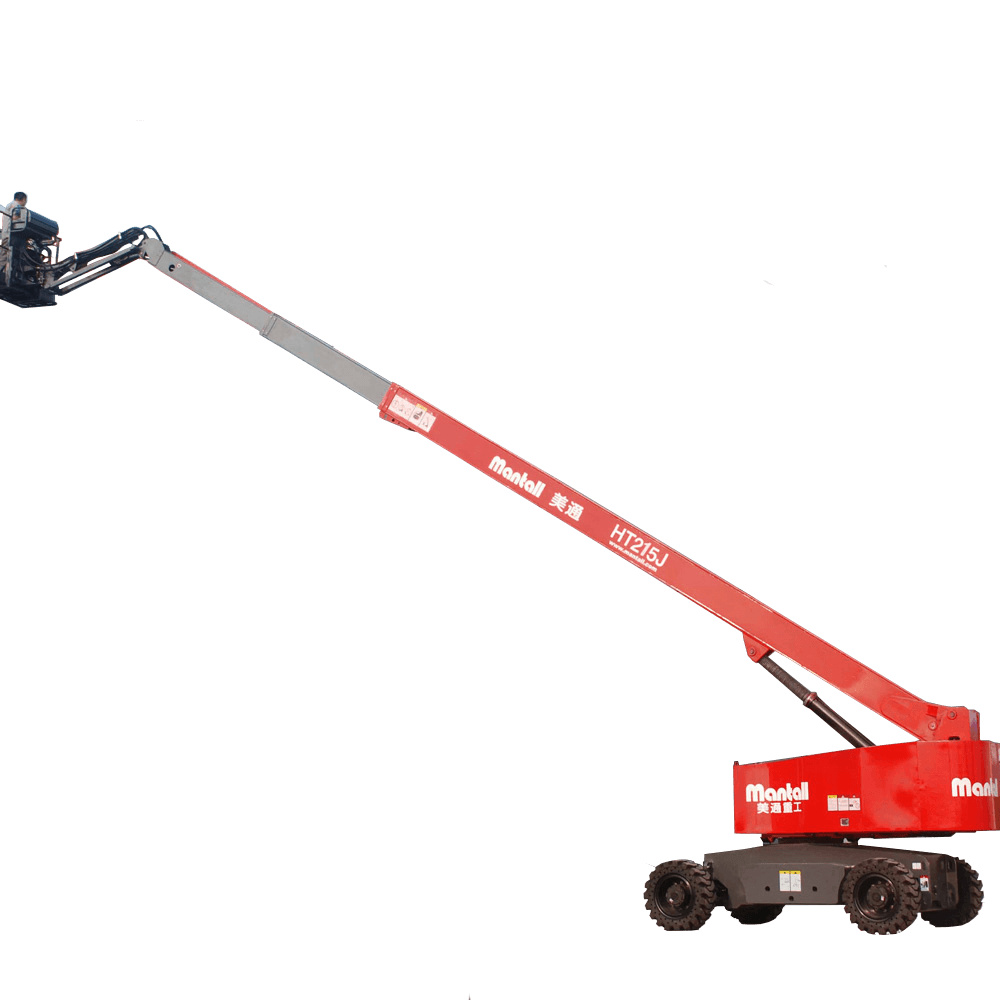

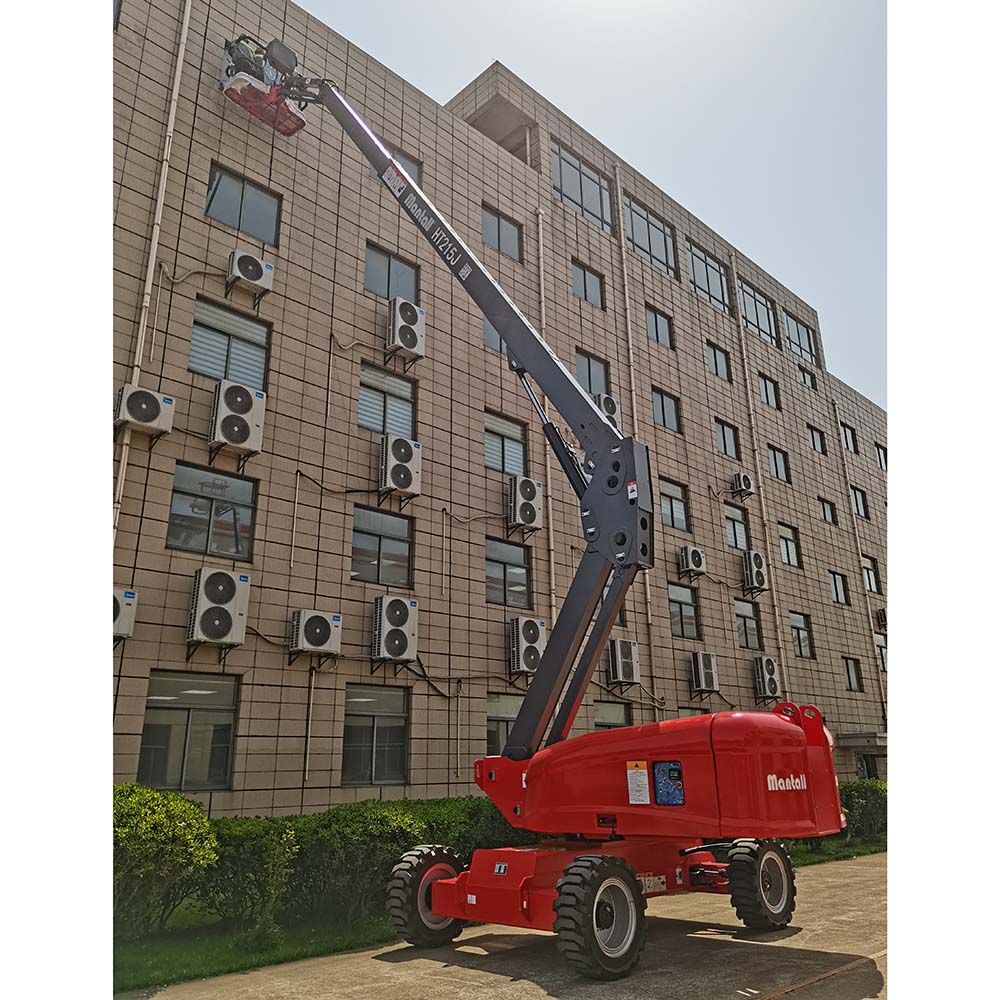

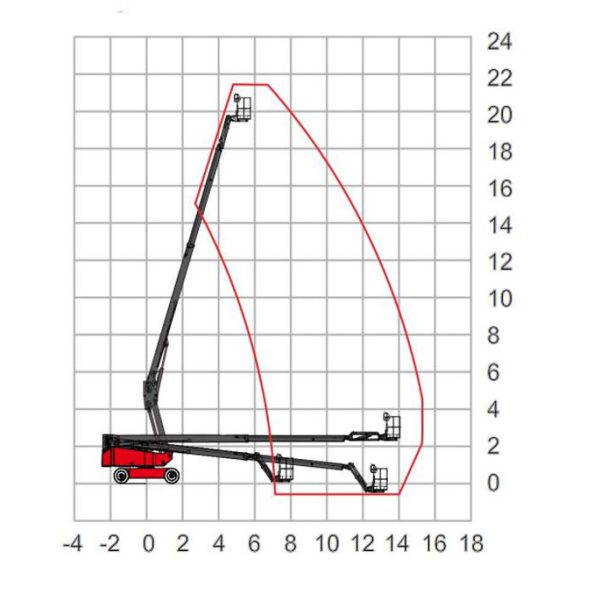

Mantall HT215J telescopic boom lift has a working height of up to 21.5m and a maximum horizontal working range of 14.65m, and is equipped with a large platform that can accommodate three workers and tools.

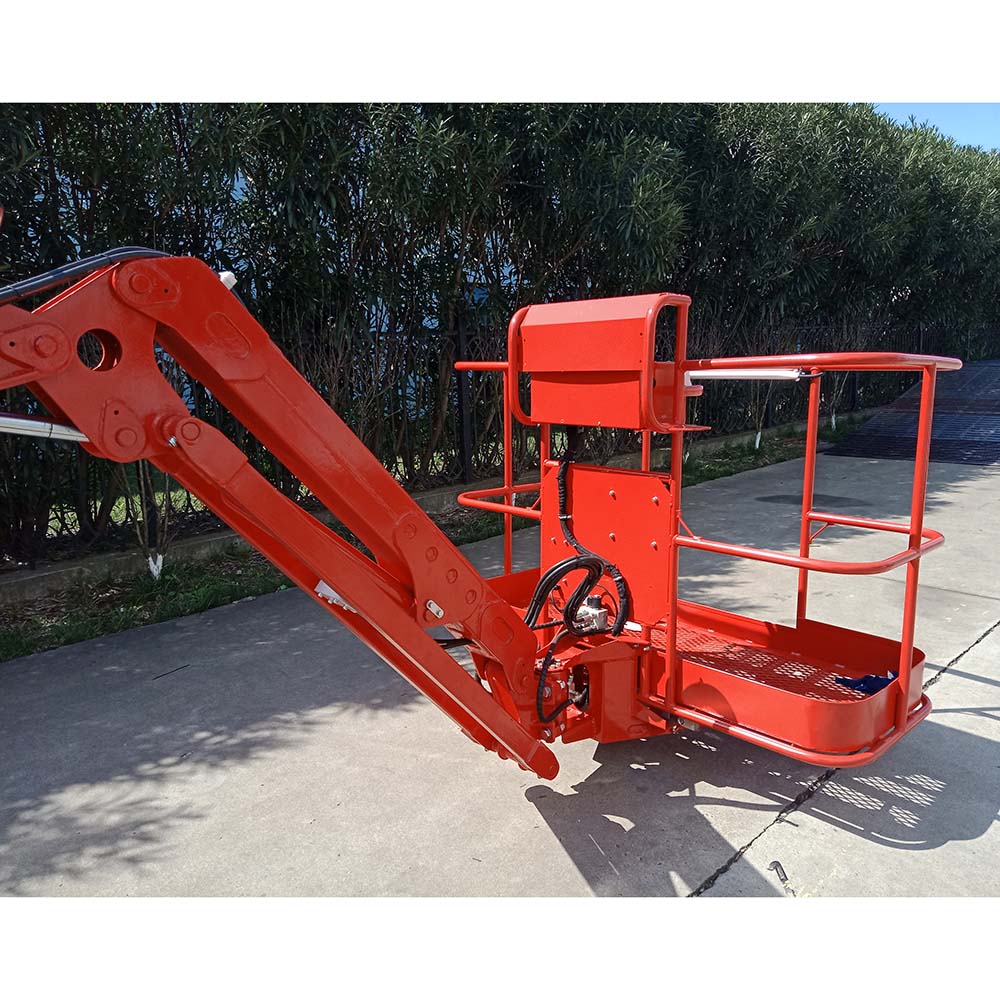

HT215J is equipped with a jib and a 180-degree rotating platform, which provides better flexibility for various field applications. HT215J telescopic boom lift is driven by a diesel engine and has a variable speed operation mode, which can adapt to various rough terrains.
Uuri hinda
Saada taotlusStandard Features
- Self-leveling platform
- Hydraulic rotation platform
- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- 360° Turntable rotation
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
- Engine restart protection
- Automatic engine failure shutdown
- Spin out engine tray
Optional
- Platform swing gate
- Platform alternate leverage
- Welder connecting packages
- Welder wire connecting to the platform
- Airline to platform
- Hydraulic oil cooler
- Hydraulic oil for extremely cold areas
- Pipeline for extremely cold area
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
- Front driving light
- Traction packages
- AC power source
- Preheater
- Cold start components
- AC generator set
- Diesel exhaust gas purification muffler
- Diesel fireproof star silencer
- Air pre filter
