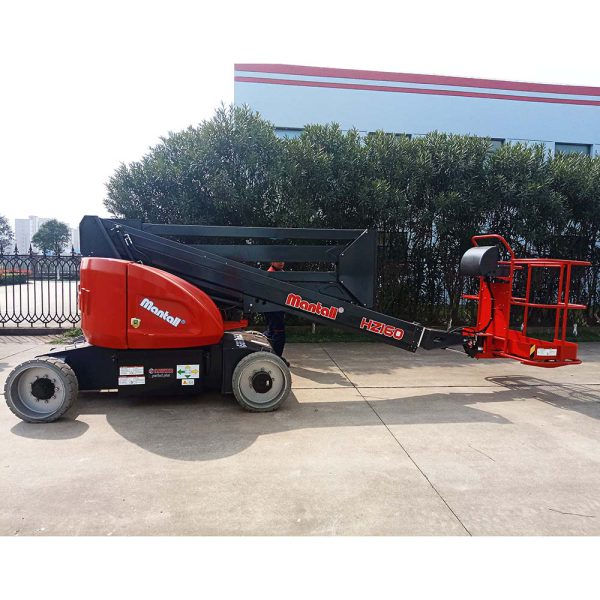

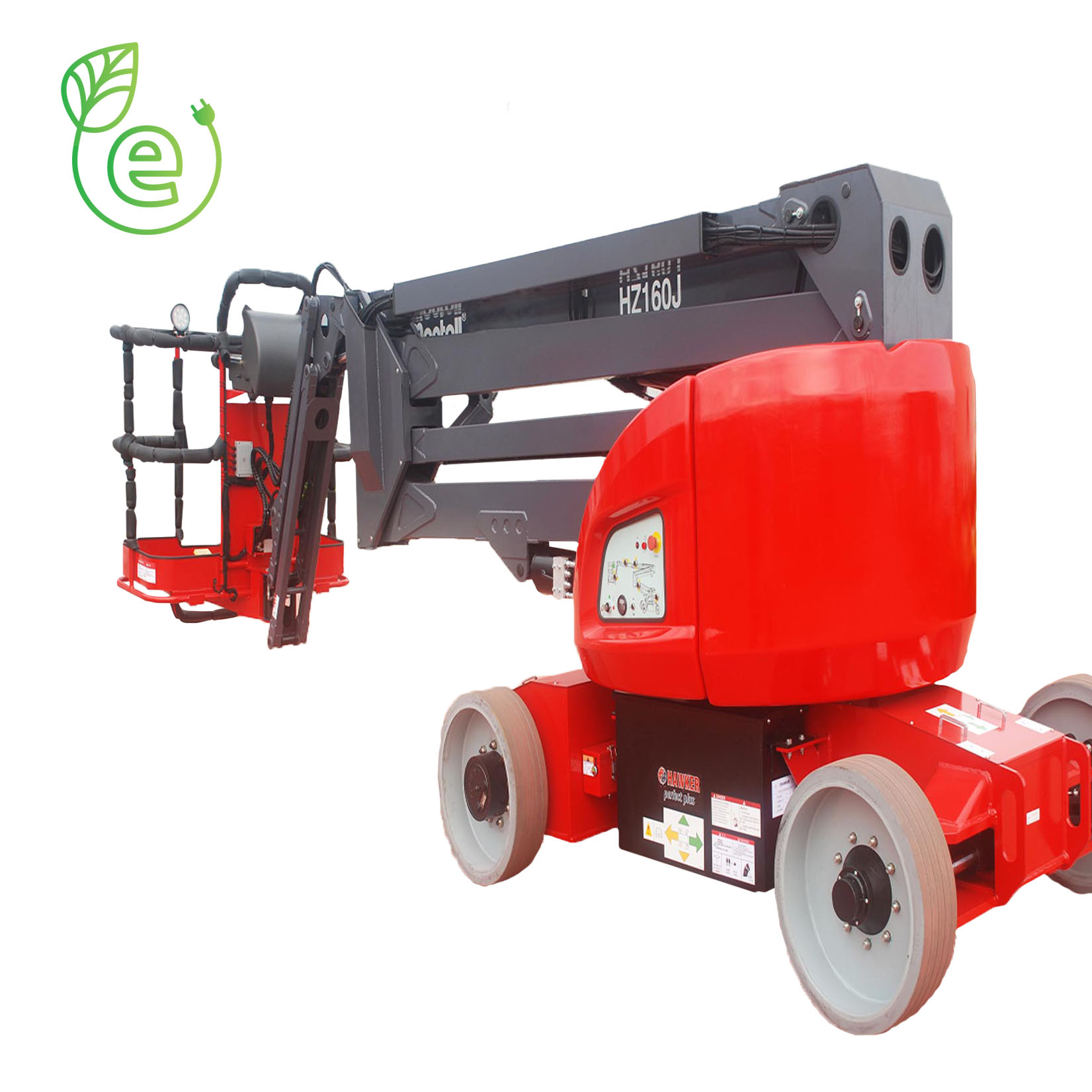

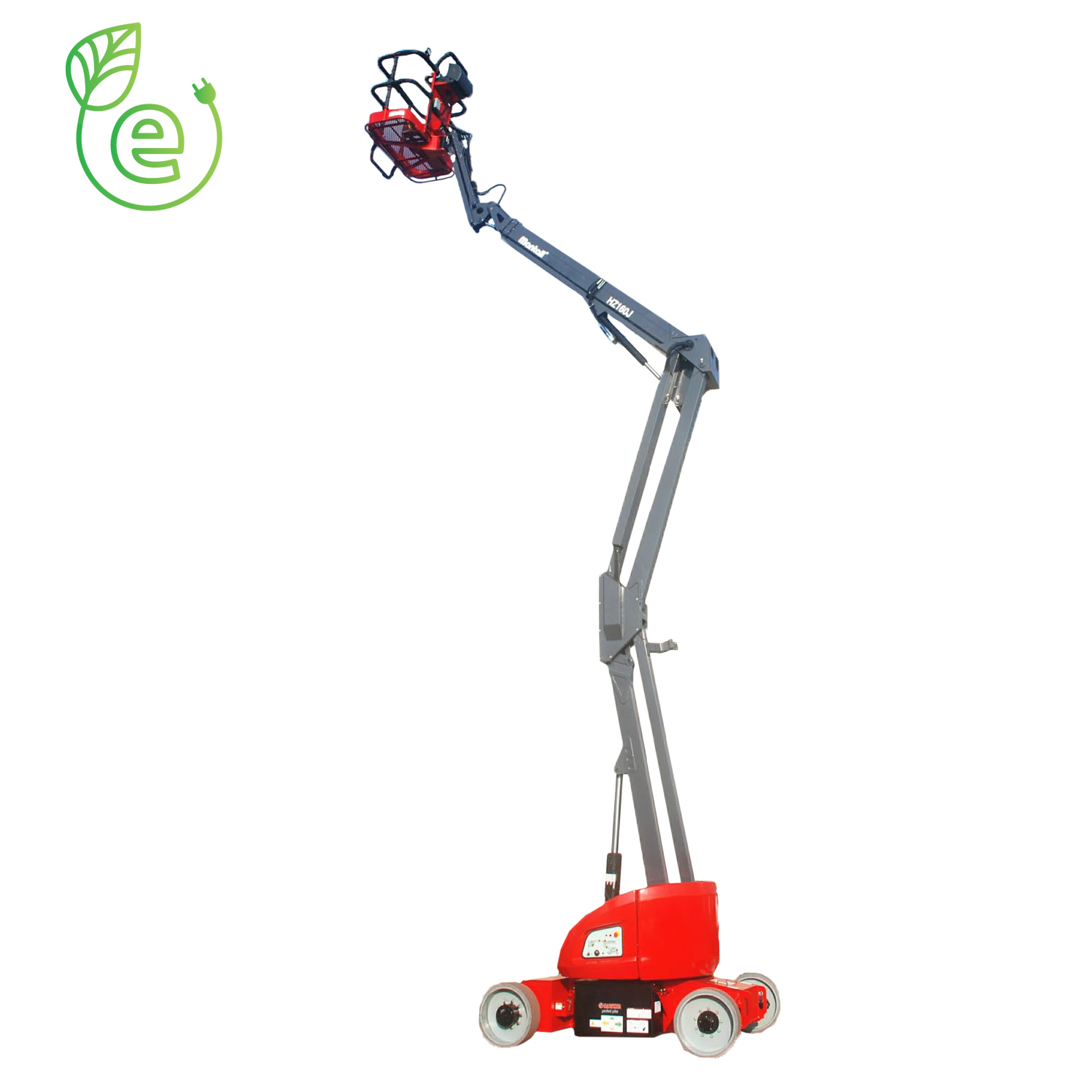

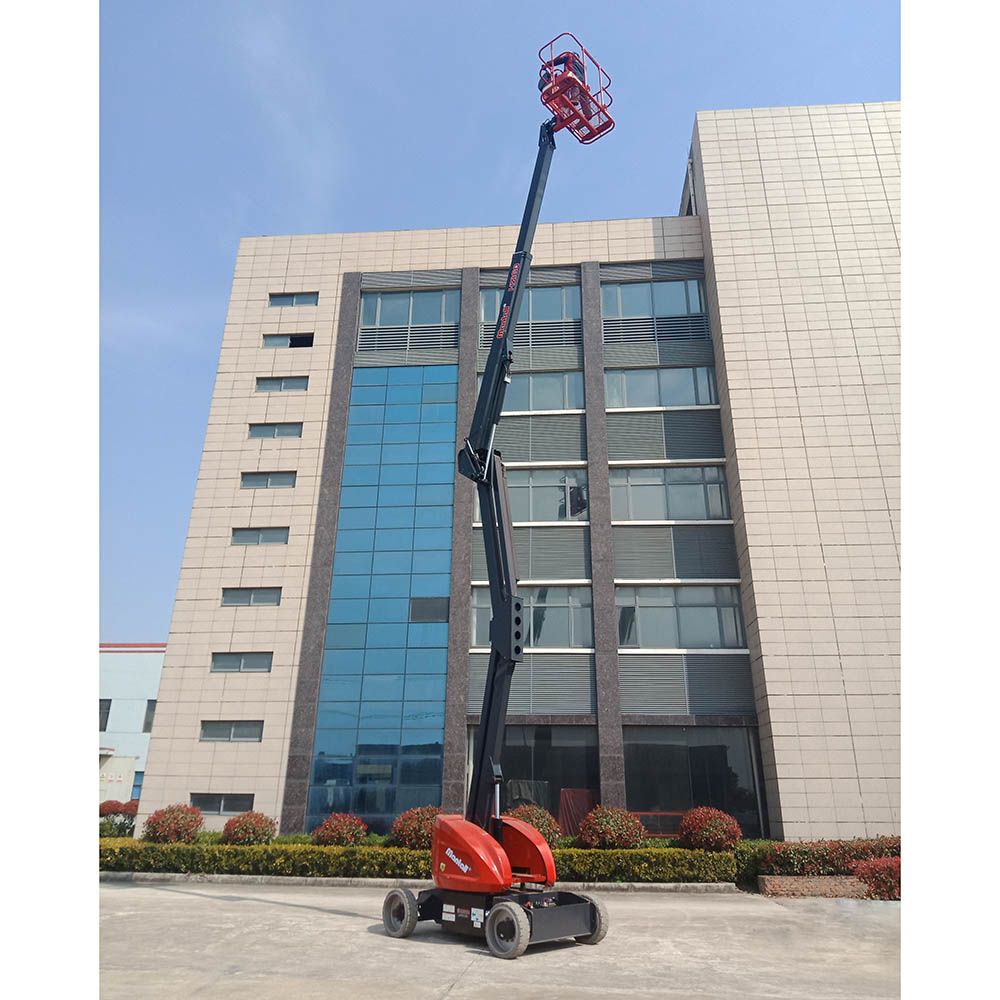

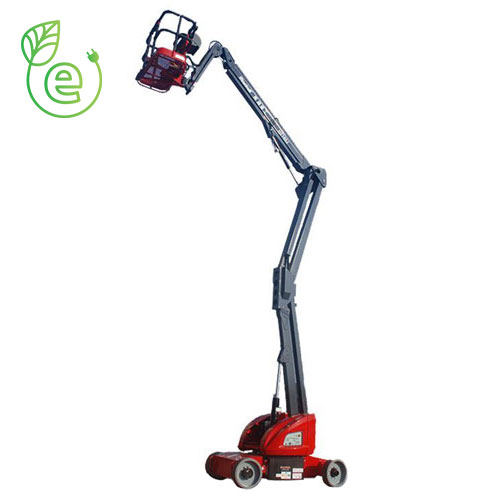

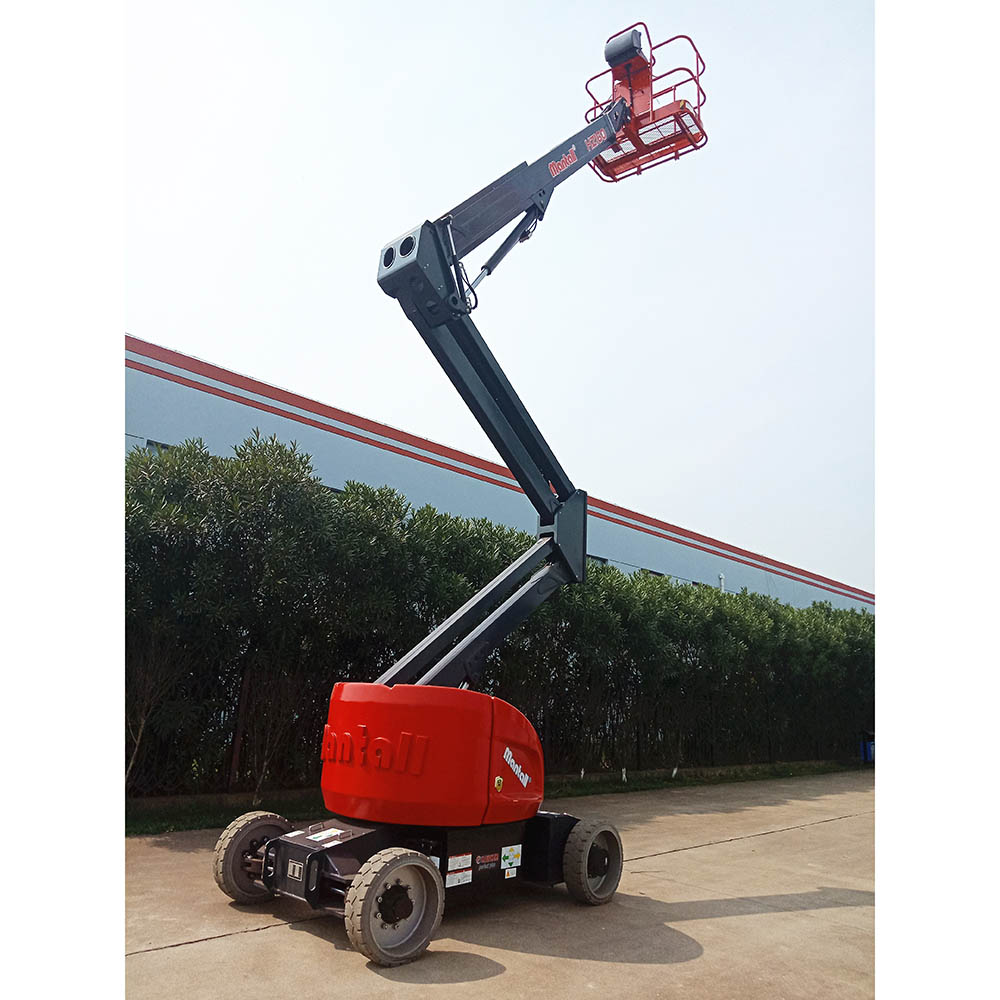

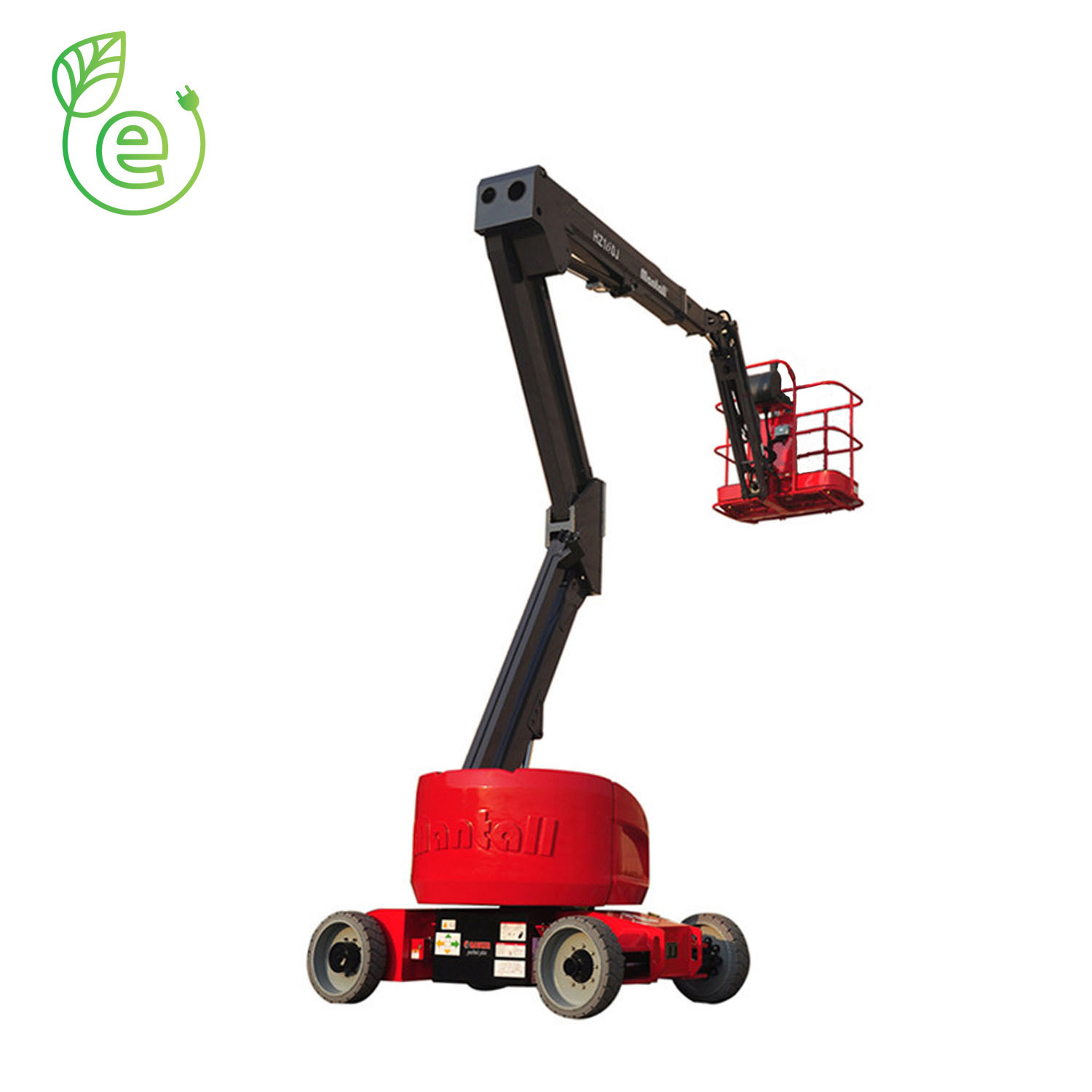

Mantall HZ160/HZ160J – 16m

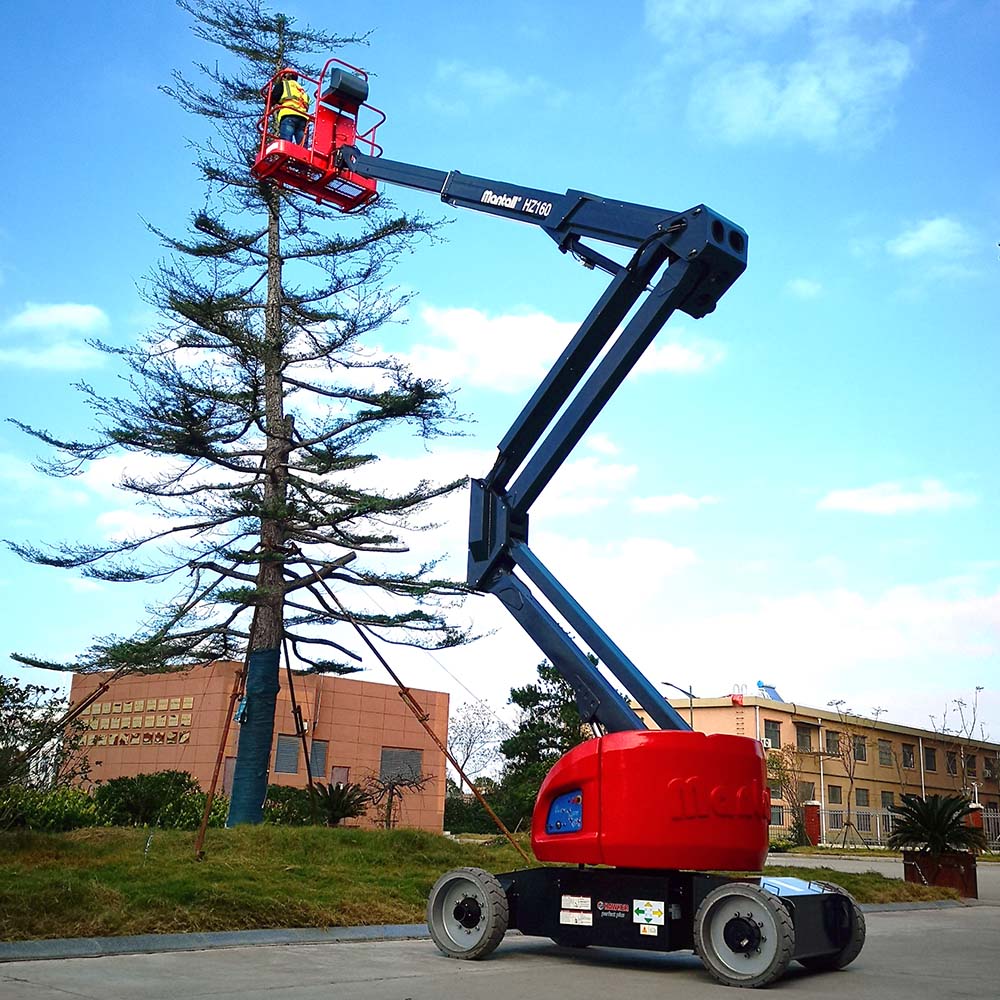

Designed with working height of 16 meters, the HZ160/HZ160J self-propelled articulated boom lift permits multi-directional precise positioning and lifting operations, enabling the worker to reach work areas that are difficult to access and avoid obstructions.

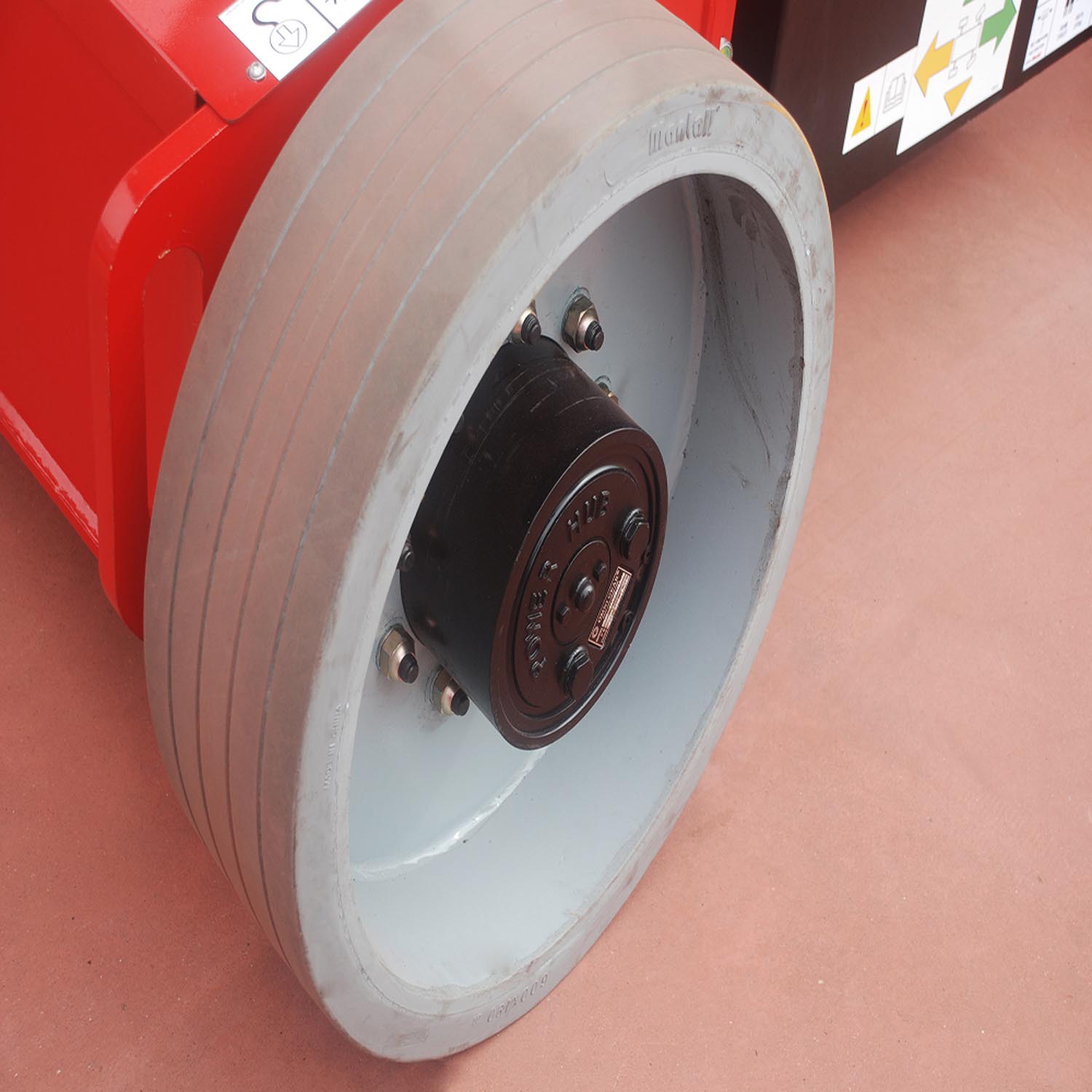

This self-propelled articulated boom lift is equipped with 360-degree rotating turntable and working platform that can move up and down, left and right to let workers do their tasks with ease. Due to the use of ultra-quiet non-marking tires, the articulated boom lift is suited for indoor applications and can protect floors.

Additionally, the fully proportional Hall effect joystick and CAN intelligent control system make the maintenance and upgrading of the self-propelled articulated boom lift simpler while facilitating multiple actions simultaneously.

Call for Price

Saada taotlus

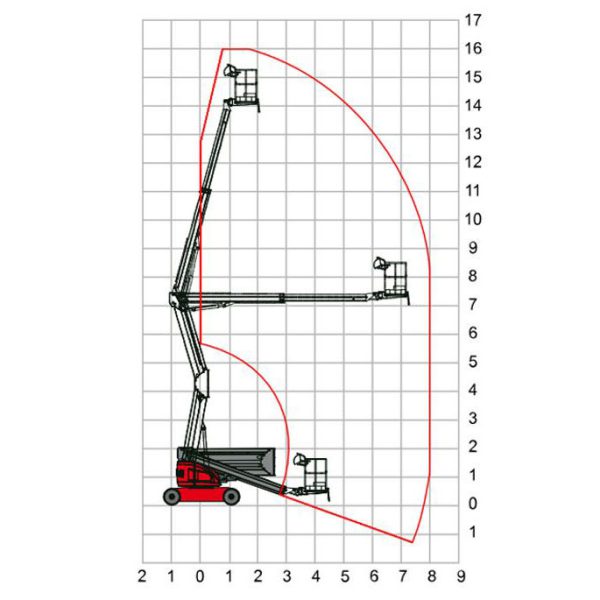

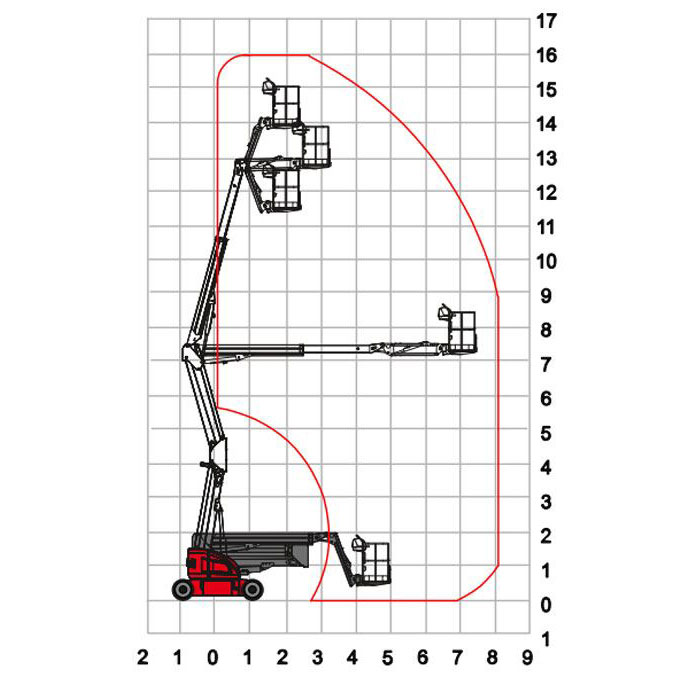

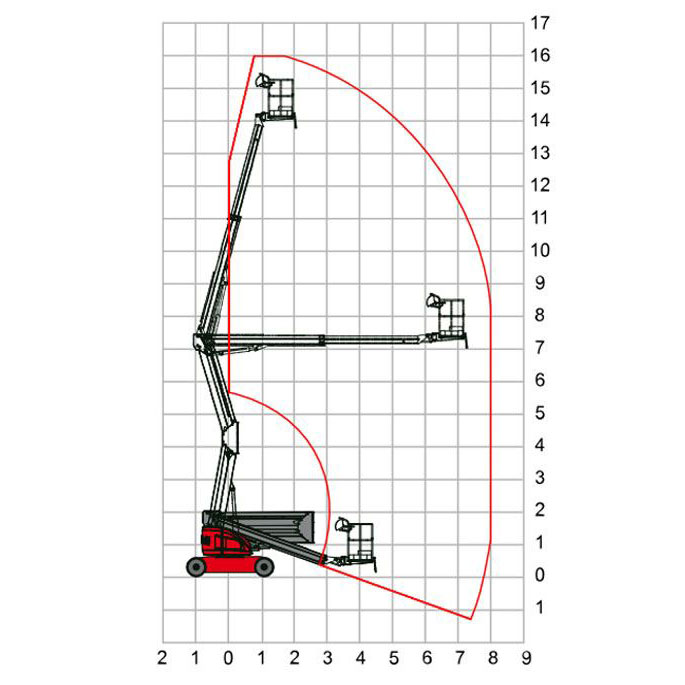

Max. working heigh H1

16m

Max. platform height H2

14m

Max. outreach

8.22m/8.32m

Max. up and over clearance

6.92m/7.47m

Lifting capacity

230kg

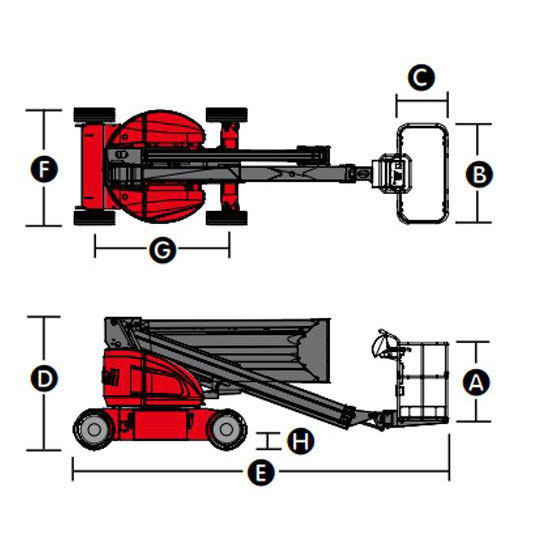

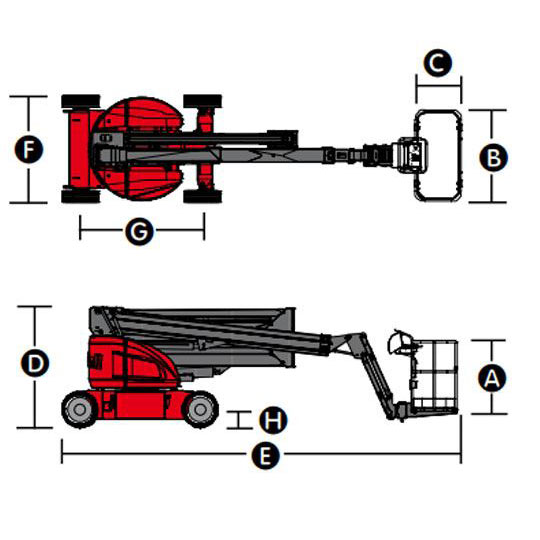

Platform size B*C*A

1.5m×0.76m×1.1m

Height D

2.00m

Length E

5.88m/6.47m

Width F

1.75m

Wheelbase G

2.00m

Ground clearance H

0.14m

Rotation

360° discontinuously

Rear swing
Platform rotation

180°

Jib Swing

0/140°(HZ160J only)

Platform level

Hydraulic level

Speed, platform down

4.8km/h

Speed, platform up

1.0km/h

Gradeability

30%

Tilt angle max

Lateral force N max

400N

Wind speed allowed max

12.5m/s

Turning radius inside

1.1m

Turning radius outside

3.50m

Drive wheel

2

Steering wheel

2

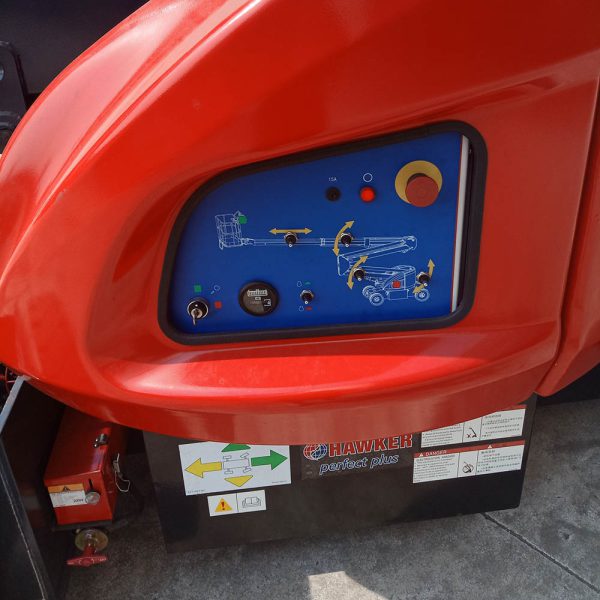

Controller

Electrical hydraulic proportional control

Voltage

DC24V

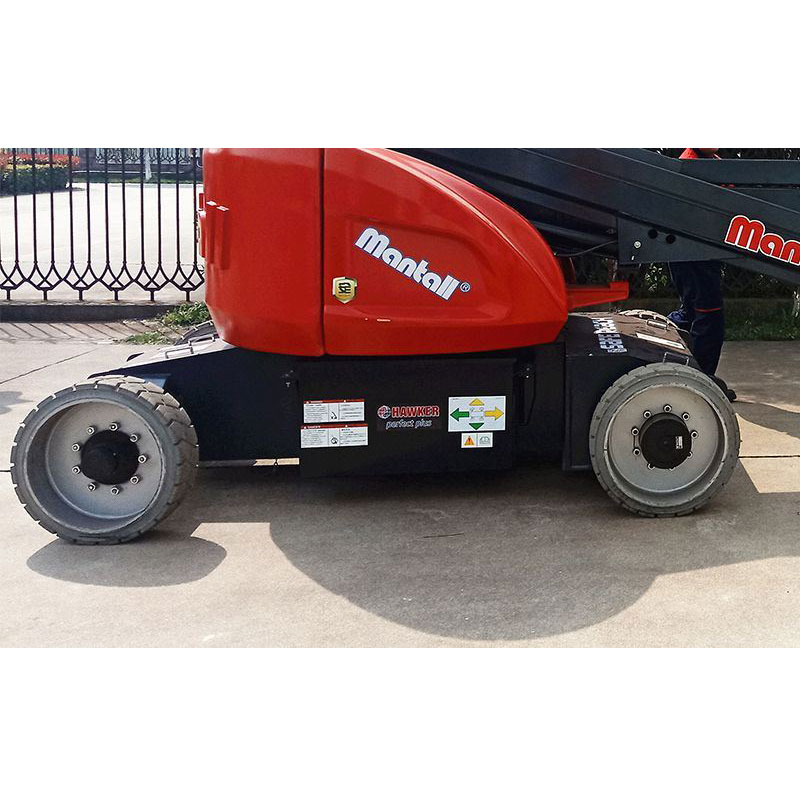

Wheels

600*190

Power source

DC48V/320Ah

Total weight

6.490kg / 6.640 kgT

Standard Features
  • Self-leveling platform
  • Hydraulic rotation platform
  • Hall effect fully proportional controls
  • Driving confirm
  • AC wiring to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Positive traction drive
  • Dual Speed motor
  • Emergency pump
  • CAN intelligent control
  • Overload sensor
Optional
  • Platform swing gate
  • Platform alternate leverage
  • Airline to platform
  • Hydraulic oil cooler
  • Hostile environment packages
  • Anti-crash air packages
  • Tool tray
  • Alarm packages
  • Platform work lights
