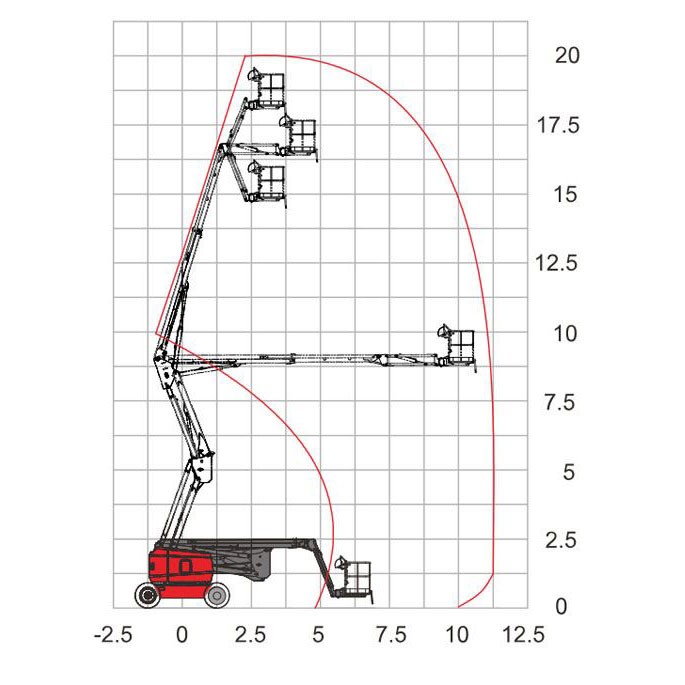

| Max. working heigh H1 | 20m |
|---|---|
| Max. platform height H2 | 18,3m |
| Max. outreach | 11,5m |
| Max. up and over clearance | 8,1m |
| Lifting capacity | 300kg |

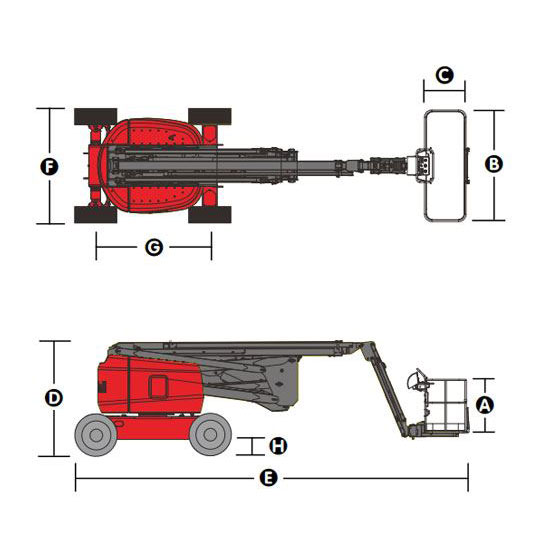

| Platform size B*C*A | 1.83m × 0.76m × 1.1m |
| Height D | 2.5m |
| Length E | 8,3m |
| Width F | 2.49m |
| Wheelbase G | 2.5m |
| Ground clearance H | 0.35m |
| Rotation | 360° discontinuously |
| Rear swing | 0.6 |
| Platform rotation | 180° |
| Jib Swing | 0/135° |
| Platform level | Hydraulisk |
| Speed, platform down | 6,1km/h |
| Speed, platform up | 1.0km/h |
| Gradeability | 40% |
| Tilt angle max | 3° |
| Lateral force N max | 400N |
| Wind speed allowed max | 12.5m/s |
| Turning radius inside | 2.38m |
| Turning radius outside | 5.69m |
| Drive wheel | 4stk |
| Steering wheel | 2stk |
| Controller | Electrical hydraulic proportional control |
| Voltage | DC12V |

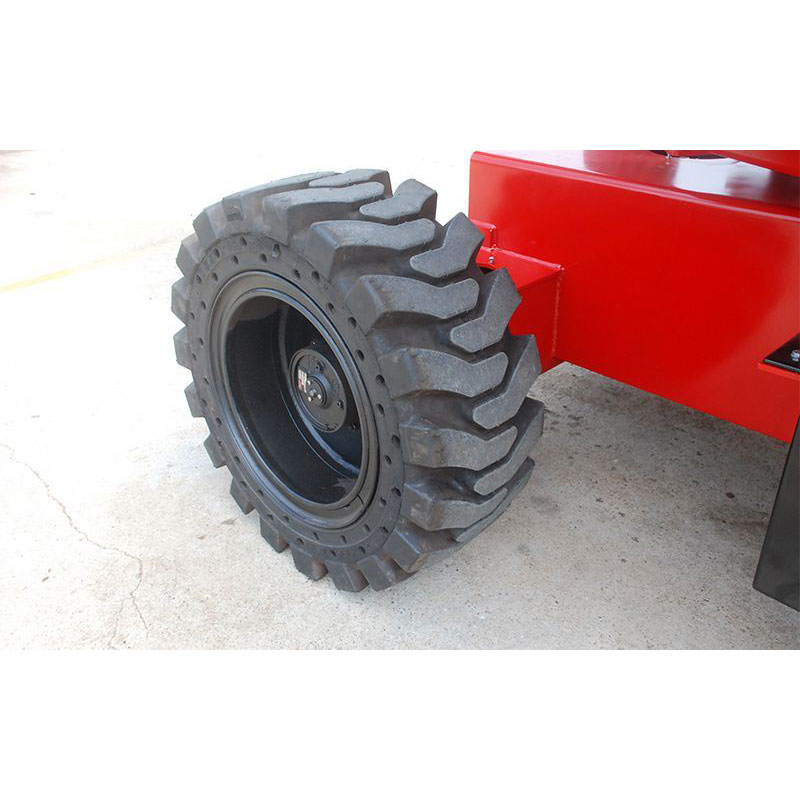

| Wheels | 355/55D-625 |
| Power source | DC48V/420Ah |
| Kaal | 6000 kg |
| Mõõtmed | 780 × 250 × 250 cm |
Mantall HZ 200J elektrisk – 20m

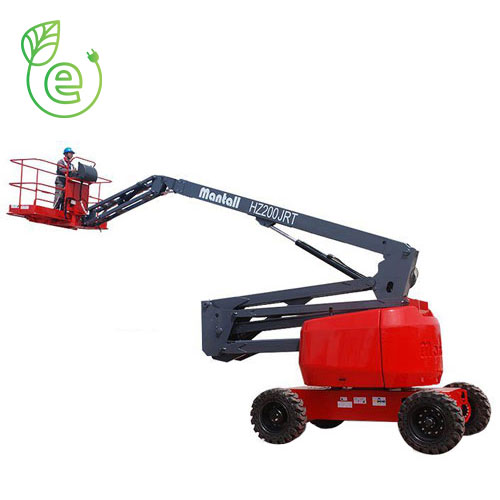

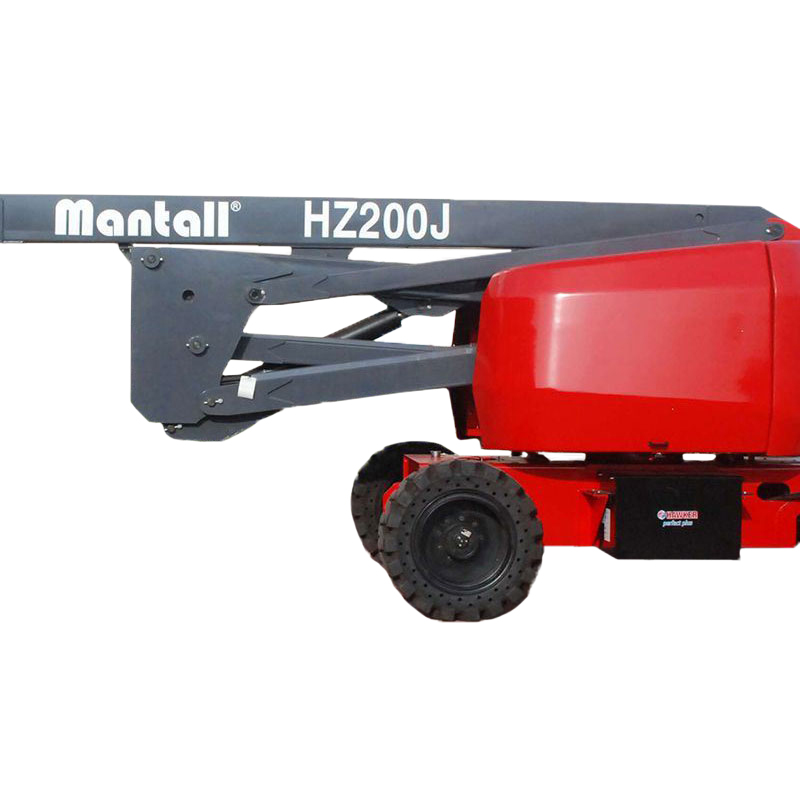

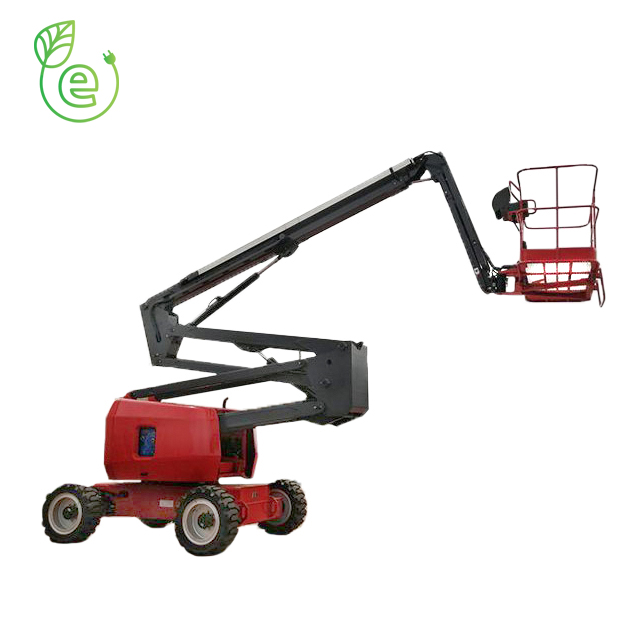

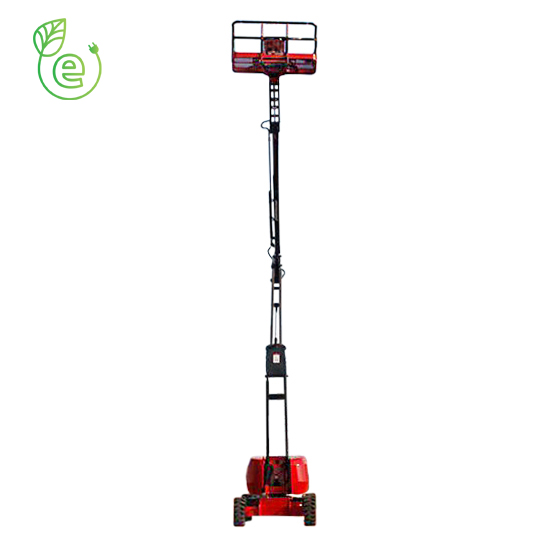

Mantall HZ200J is an electric articulated boom lift with a maximum working height of 20 metres and a horizontal reach of 11.5 metres. Lifting capacity in basket is 300kg.
The lift is equipped with Hall-effect proportional joystick and CAN intelligent control system. The lift can perform precise positioning and lifting operations in most directions, allowing the user to easily work in large areas and avoid obstacles.
The HZ200J is excellent for outdoor use and is designed for working and travelling in demanding terrain. As the lift is battery powered, it has zero emissions and low noise characteristics, which also makes it well suited for indoor use.
Call for Price
Saada taotlusStandard Features
- Self-leveling platform
- Hydraulic rotation platform
- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
Optional
- Swing axis
- Platform swing gate
- Platform alternate leverage
- Welder connecting packages
- Welder wire connecting to the platform
- Airline to platform
- Hydraulic oil cooler
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
