Mantall IMP80 – 8m

63-IMP80

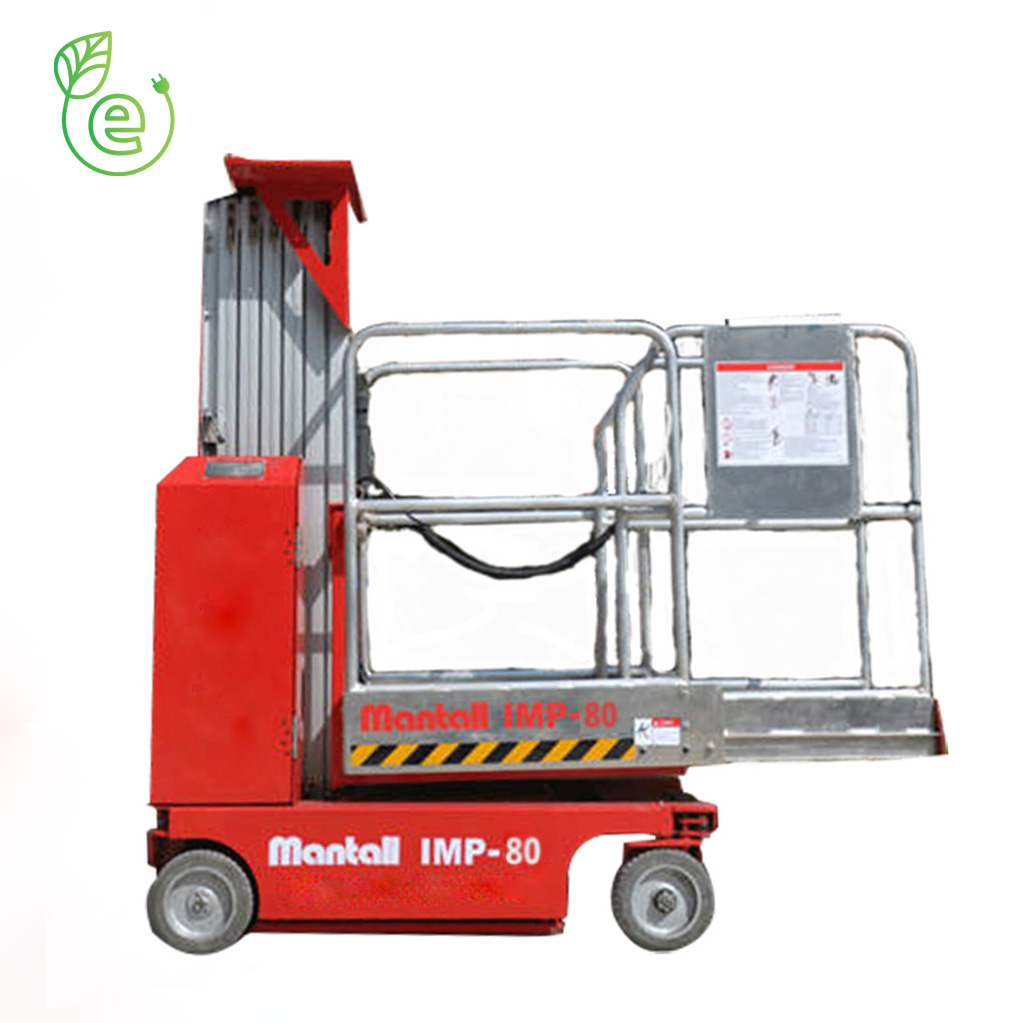

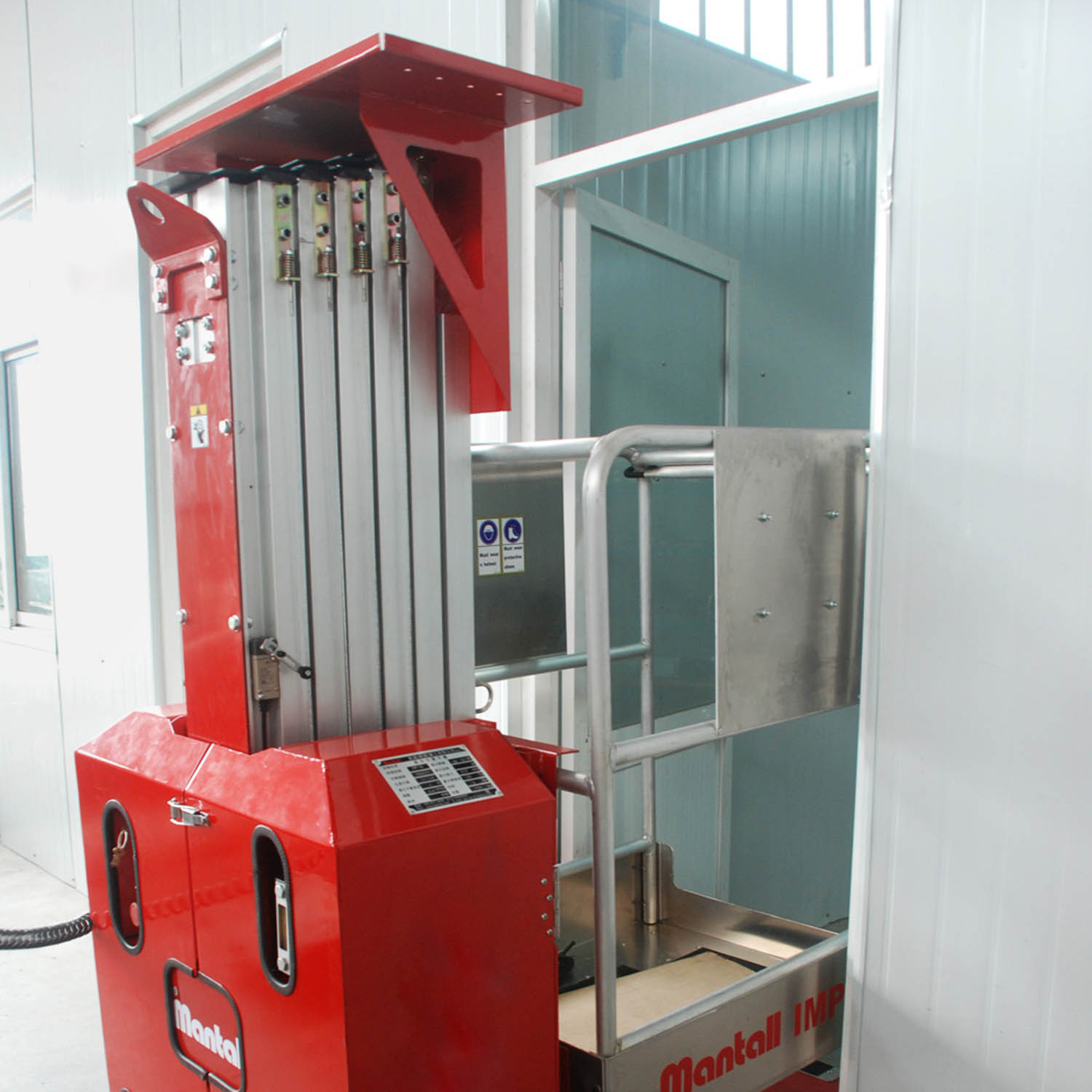

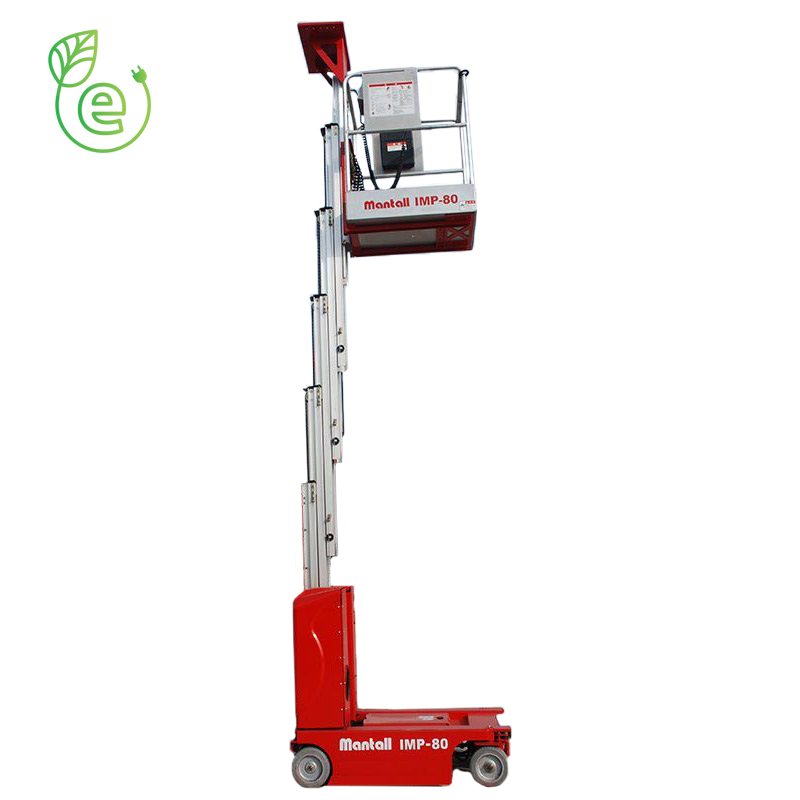

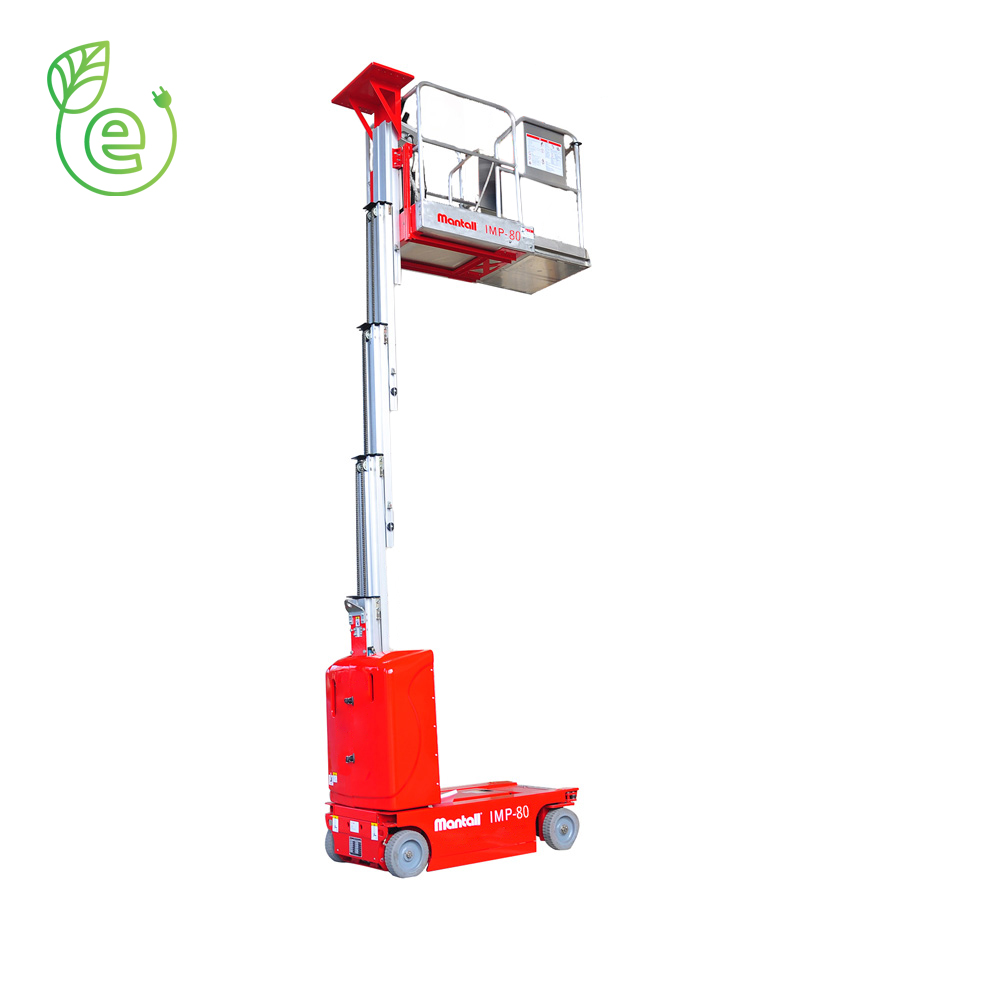

Mantall IMP80 is a compact and robust mast lift, with many features for maximum productivity and safety. The lift has a working height of 8m and a lifting capacity of 160kg. The platform can be extended by 0.6m.

The compact design makes it easy to use on small surfaces and it can be driven through doorways. Typical applications for the lift are warehouses, shops, sports halls, cultural buildings or general maintenance.

The lift also has a number of safety features for safe operation, as well as a joystick with proportional control for lifting and driving, making the lift very easy to use. The lift can be driven from full height.

15 831(eks. mva)

Saada taotlus
Max. working height H1

8m

Max. platform height H2

6m

Platform extension

0,6m

Lift capacity

160 kg

Lift capacity on extension

115 kg

Platform size B*C

0.9 × 0.75m

Platform size- extended

1.50 × 0.75m

Length and width E*F

1.40 × 0.8

Height

2m

Ground clearance H

0.06m

Turning radius inside
Turning radius outside

1.42m

Raise/lower time (sec)

24/21s

Speed, platform down

4.0km/h

Speed, platform up

0.8km/h

Gradeability

30%

Tire

250 × 80 × 200mm

Power source

DC24V/225Ah

Kaal 1110 kg
Mõõtmed 140 × 80 × 200 cm
Standard Features
  • Battery powered
  • Proportional driving
  • Push out on platform
  • AC wiring to platform
  • Non-marking wheels
  • Automatic braking system
  • Emergency lowering
  • Emergency stop
  • Self-diagnosis system
  • Hour meter
  • Forklift pockets
  • Warning light
  • Integrated battery charger
  • CE-marked
