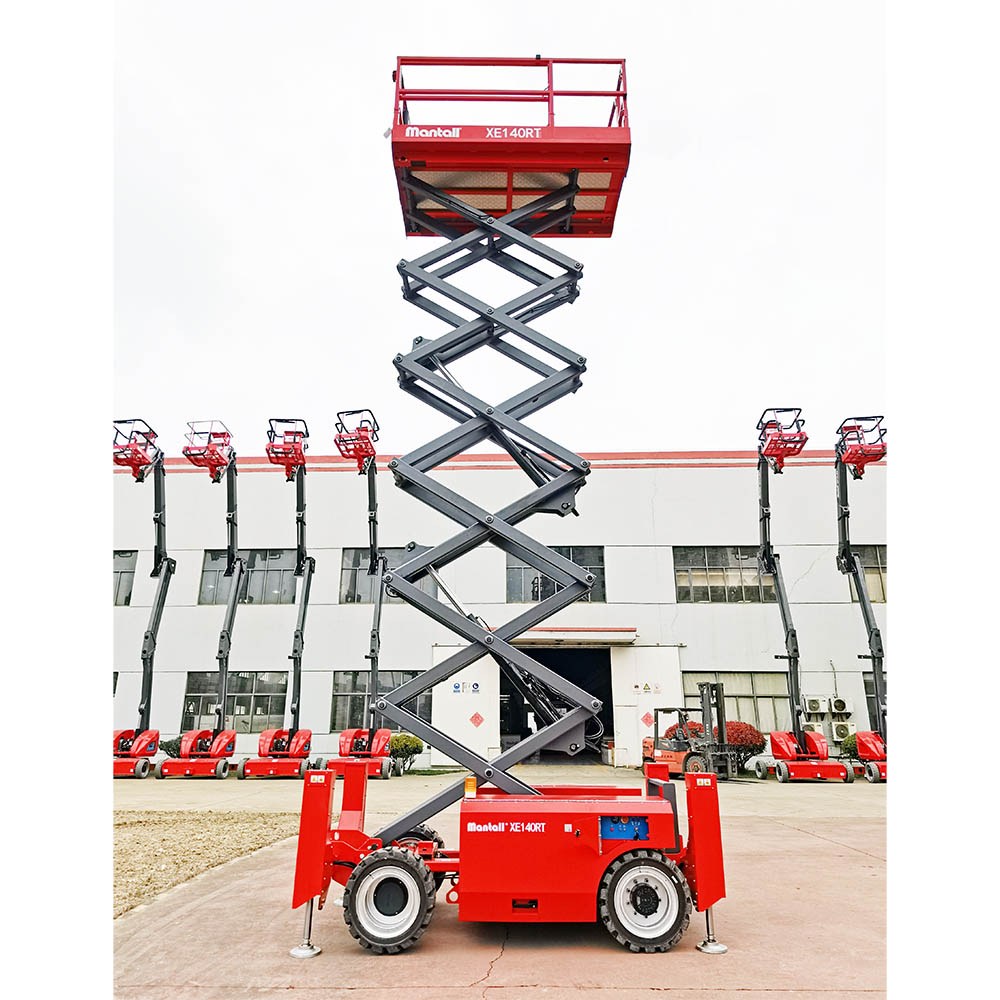

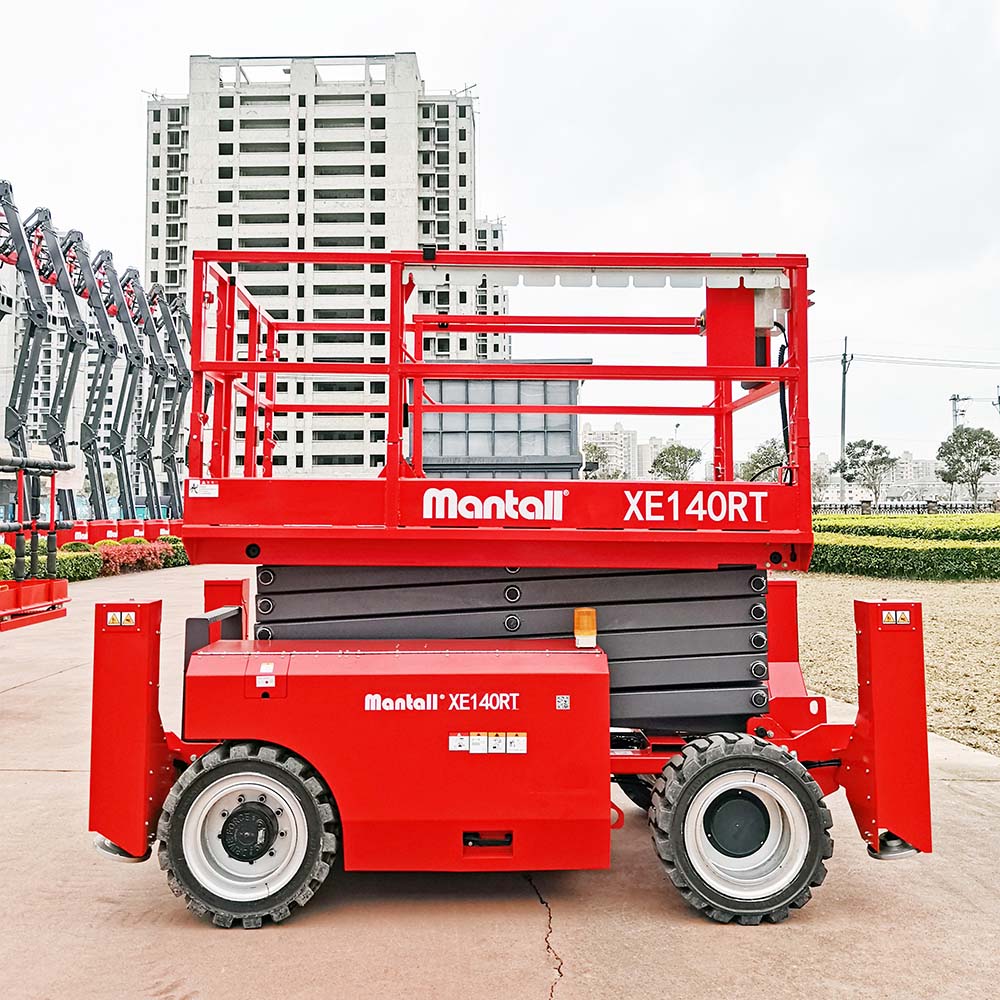

Mantall XE140RT – 14m

Mantall XE-RT series self-propelled rough terrain scissor lifts are a type of aerial work platform that uses battery power and operates without emission and noise.

The Mantall XE140RT has a maximum working height of 14 meters and a load capacity of 345 kg.

The lift has the characteristics of 30% gradeability, maximum traction speed of 4km/h, full-height driving, no emission and no noise. It is equipped with on-board diagnostic system, fault alarm device and strong power.

This lift has excellent driving force and climbing ability for rough terrain.

Call for Price

Saada taotlus

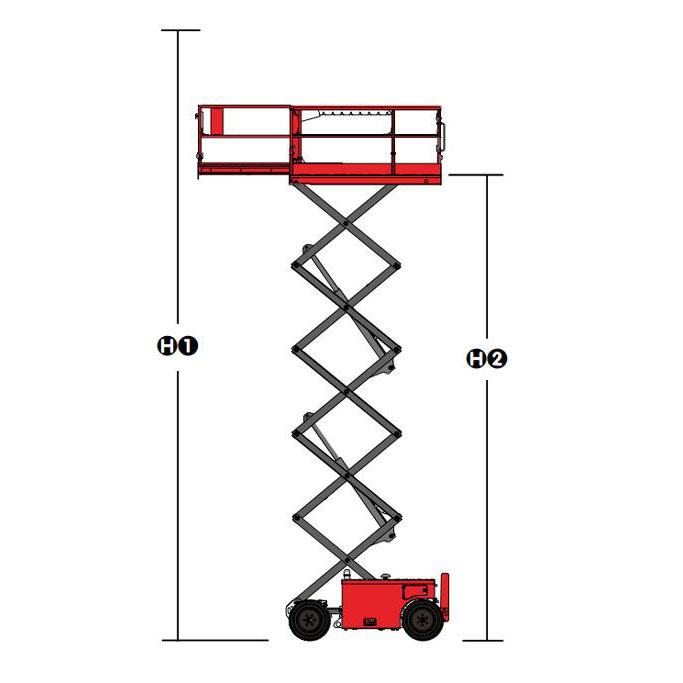

Max. working heigh H1


Max. platform height H2


Platform extension

1.5 m

Lifting capacity

345 kg

Lifting capacity on extension

136 kg

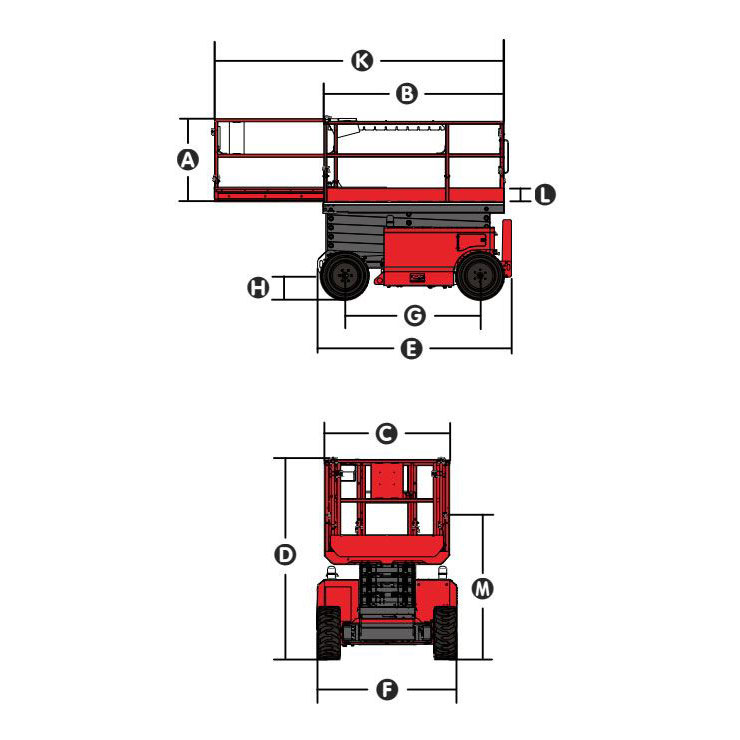

Platform size B*C*A

2.5 * 1.6 * 1.15 m

Platform length with extension K

4 m

Length and width E*F

2.67 * 1.76 m

Height D

2.65 m

Height - railing down M

1.98 m

Wheelbase G

1.89 m

Ground clearance H

0.17 m

Turning radius inside

1.58 m

Turning radius outside

3.89 m

Raise/lower time (sec)


Speed, platform down

4.0 km/h

Speed, platform up

0.8 km/h



Tilt sensor (front to back/side to side)

3° / 2°

Outrigger level (front to back)

Outrigger level (side to side)



675*280 mm

Max number of people in lift (indoor/outdoor)

3/2 pers

Power source

48V 220Ah

Wheel drive



4270 kg

Weight with support leg

4730 kg

Mõõtmed 267 × 176 × 265 cm
Standard Features
  • Foldable guardrail
  • Diagnostic system
  • AC wiring to platform
  • 2 wheel drive
  • Tilt level sensor with an audible alarm
  • Lowering alarm
  • Horn
  • Hour meter

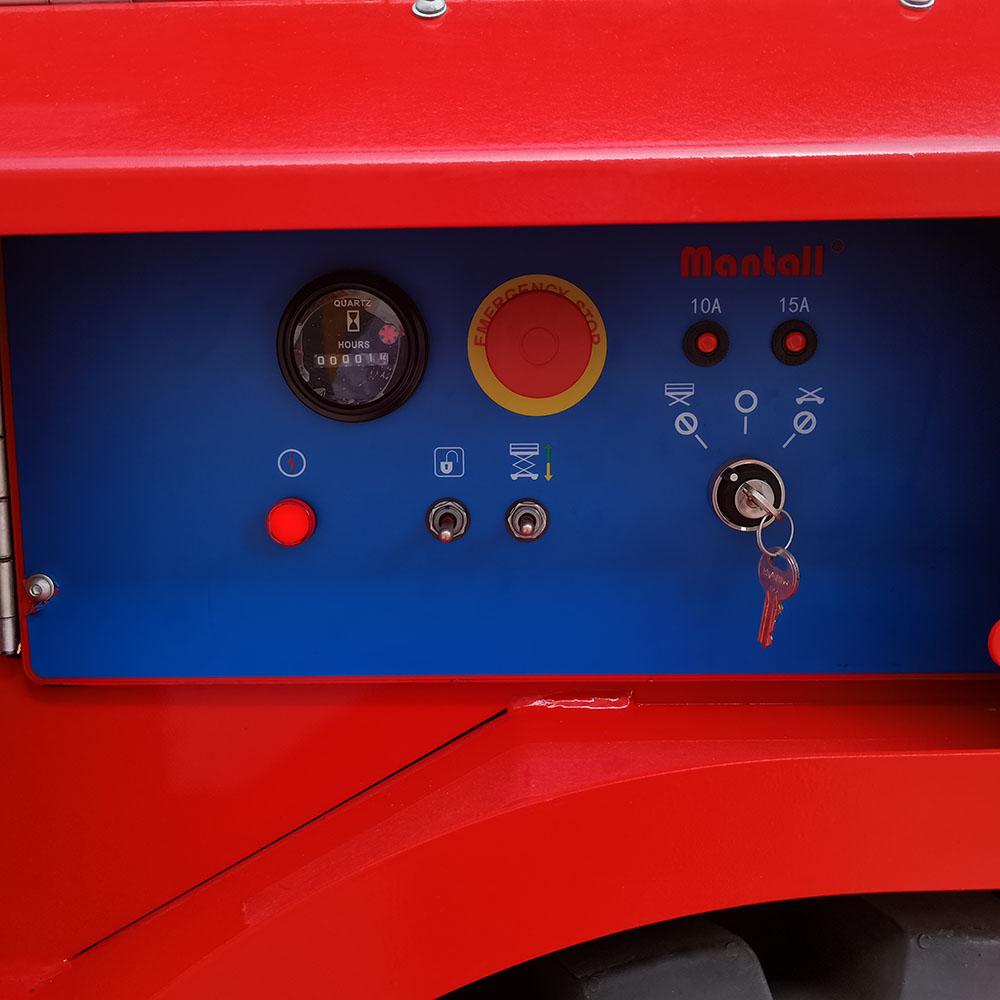

  • Emergency pump

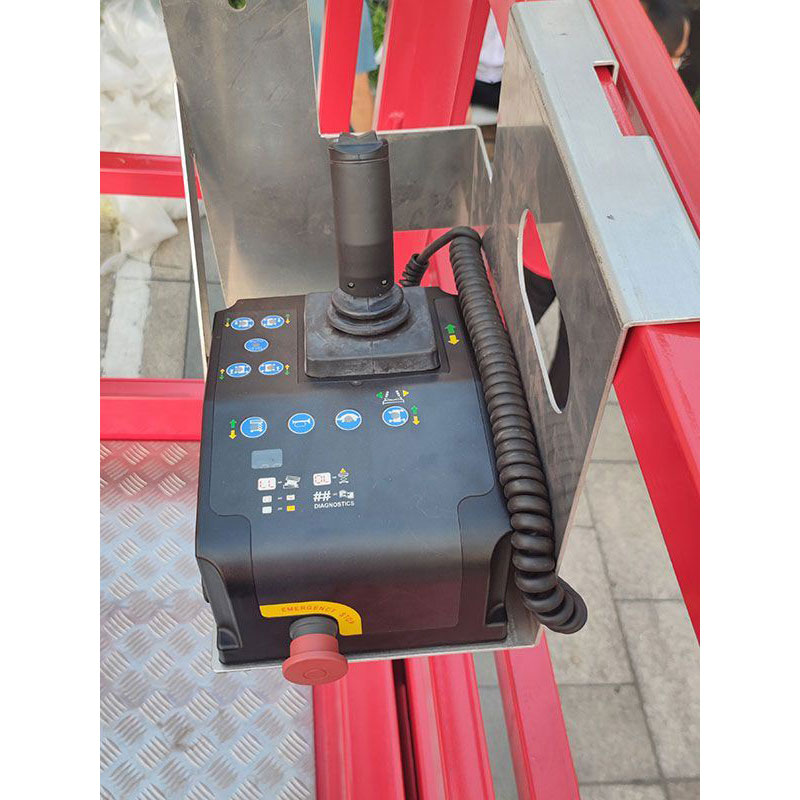

  • Proportional controls
  • Solid rough tire
  • Safety brackets
  • Dual flashing beacon

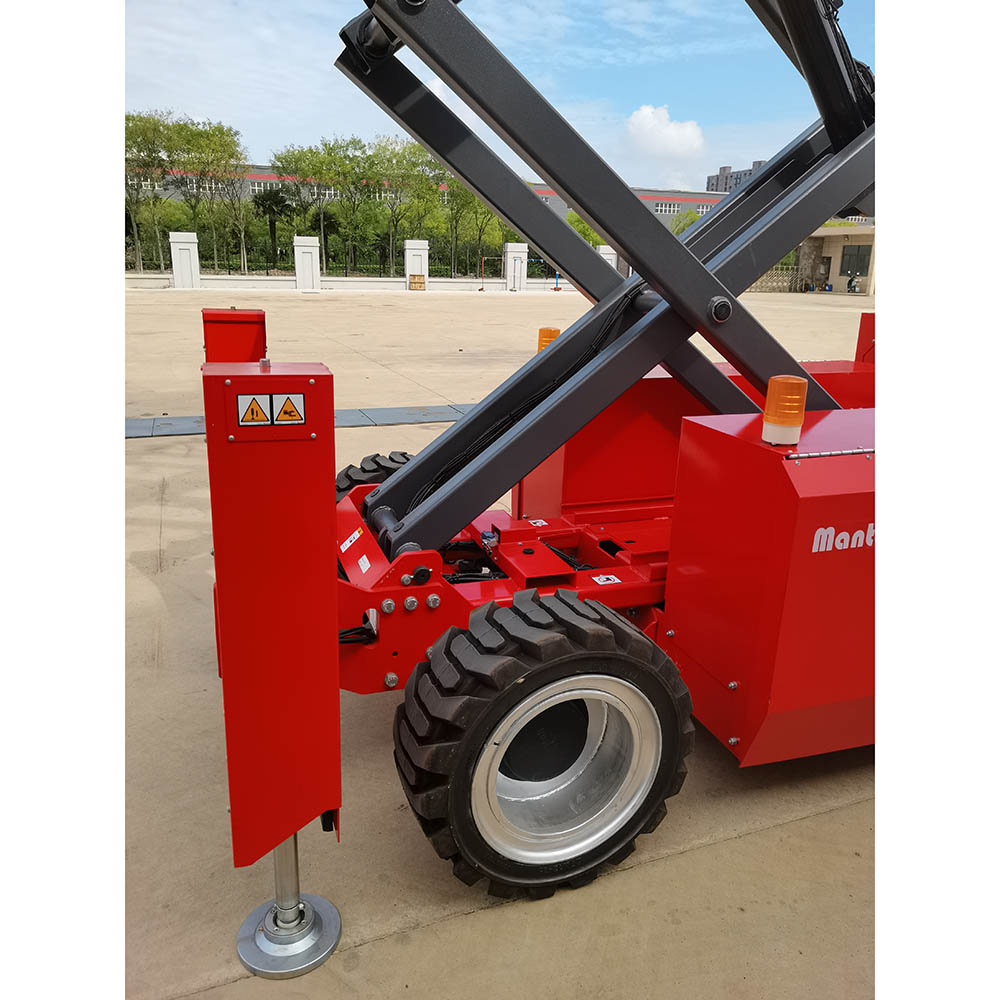

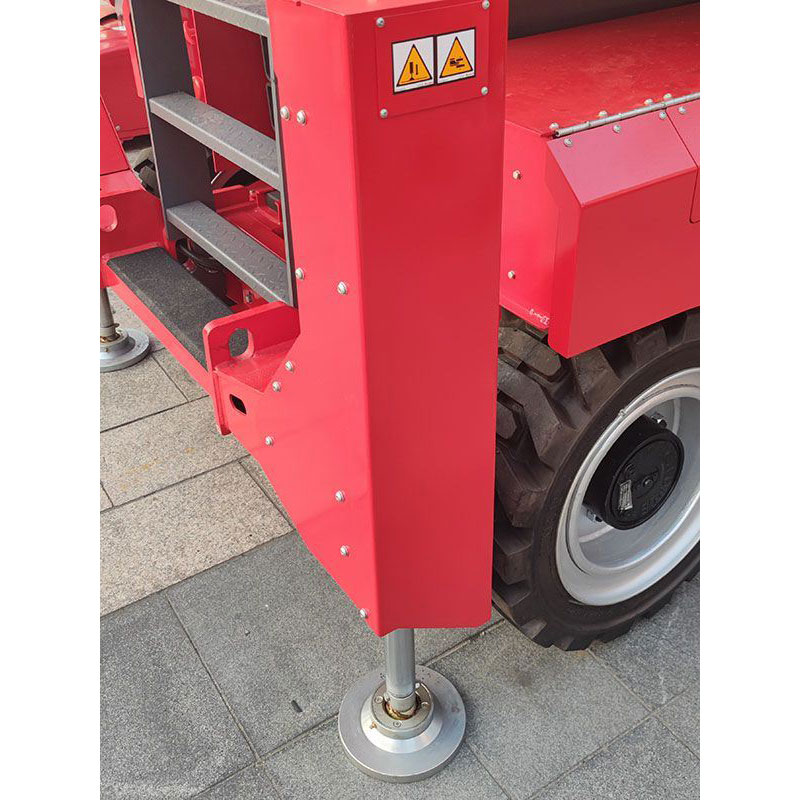

  • Automatic leveling hydraulic outriggers
  • Airline to platform
  • Overload sensor
  • Lithium battery
  • Non-mark rough tires

Function Description

  • Electric rough terrain scissor lift has zero emission and no noise characteristic. It also has strong climbing function.
  • Super load capacity, stable lifting, safe and reliable
  • 4 wheel drive with strong power and fast walking speed
  • With Diagnostic system, intelligent fault alarm system and other functions
