| Max. working heigh H1 | 10m |
|---|---|
| Max. platform height H2 | 8m |
| Platform extension | 1.5 m |
| Lifting capacity | 567 kg |
| Lifting capacity on extension | 136 kg |
| Platform size B*C*A | 2.5 * 1.6 * 1.15 m |
| Platform length with extension K | 4 m |
| Length and width E*F | 2.67 * 1.76 m |
| Height D | 2.4 m |
| Height - railing down M | 1.7 m |
| Wheelbase G | 1.89 m |
| Ground clearance H | 0.17 m |
| Turning radius inside | 1.58 m |
| Turning radius outside | 3.89 m |
| Raise/lower time (sec) | 40/35 s |
| Speed, platform down | 4.0 km/h |
| Speed, platform up | 0.8 km/h |
| Gradeability | 35% |
| Tilt sensor (front to back/side to side) | 3° / 2° |
| Outrigger level (front to back) | 9° |
| Outrigger level (side to side) | 13° |
| Tire | 675*280 mm |
| Max number of people in lift (indoor/outdoor) | 4/4 pers |
| Power source | 48V 220Ah |
| Wheel drive | 2WD |
| Weight | 3710 kg |
| Weight with support leg | 4170 kg |
| Mõõtmed | 267 × 176 × 240 cm |

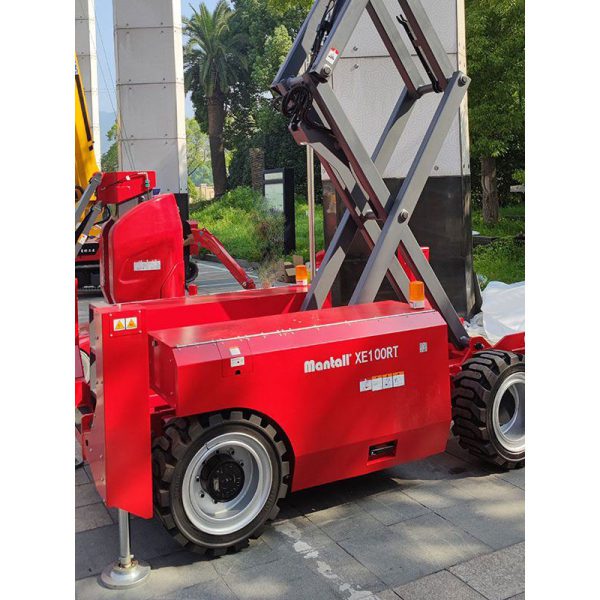

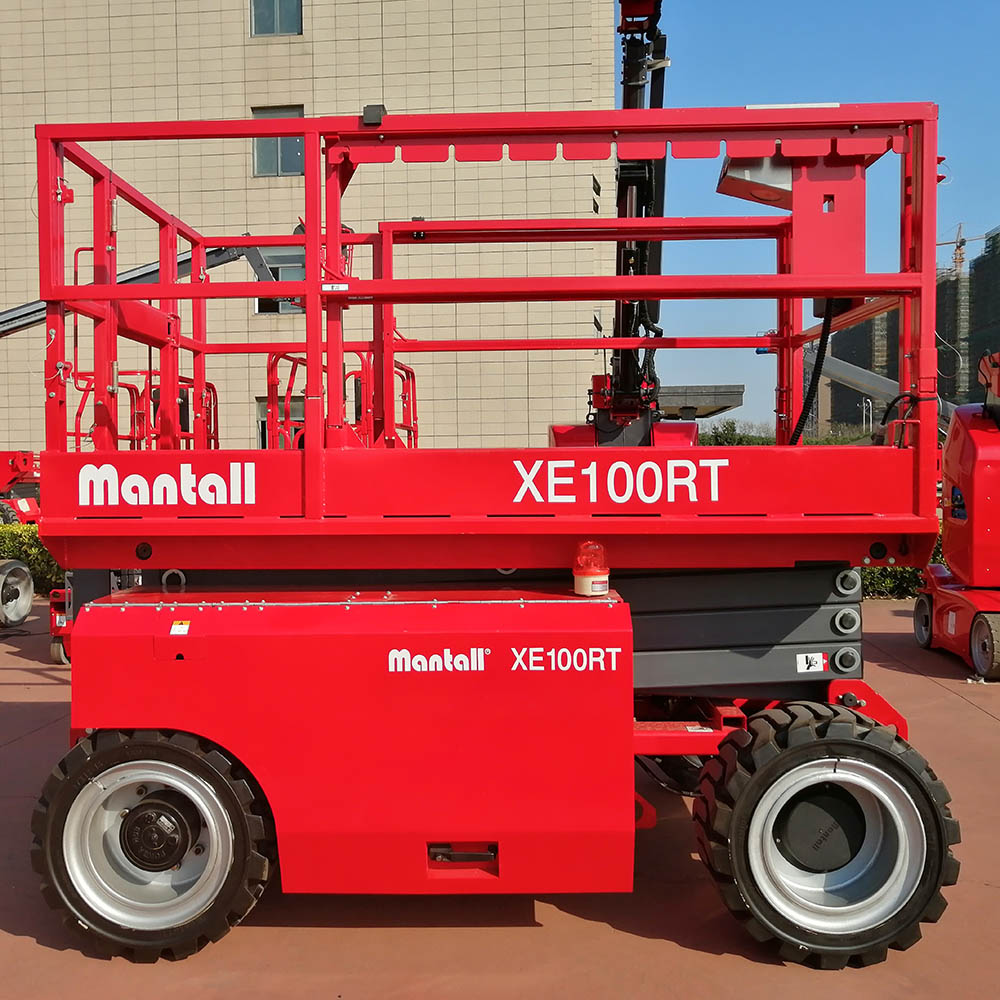

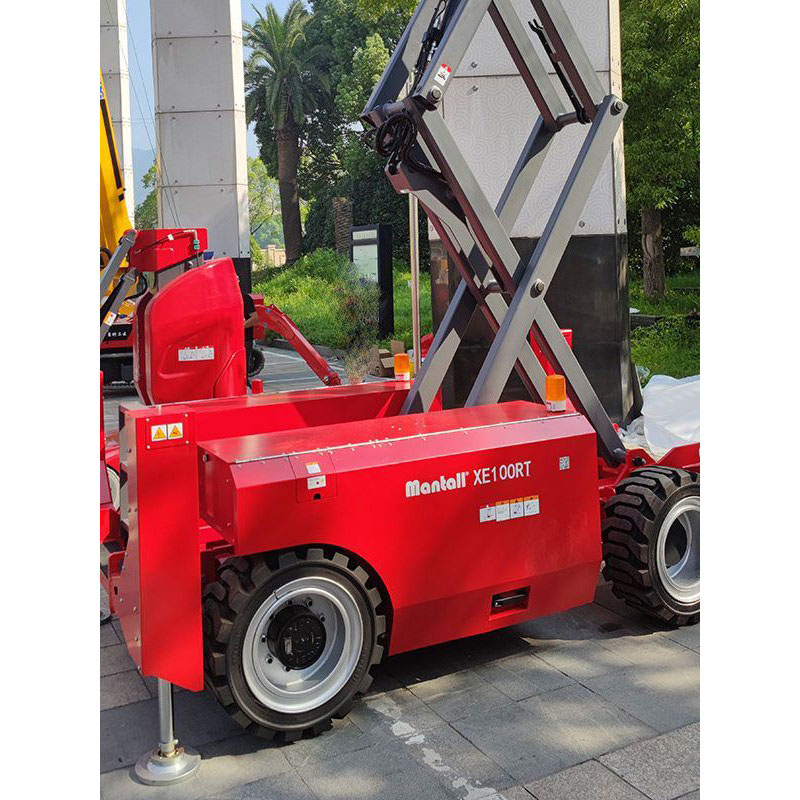

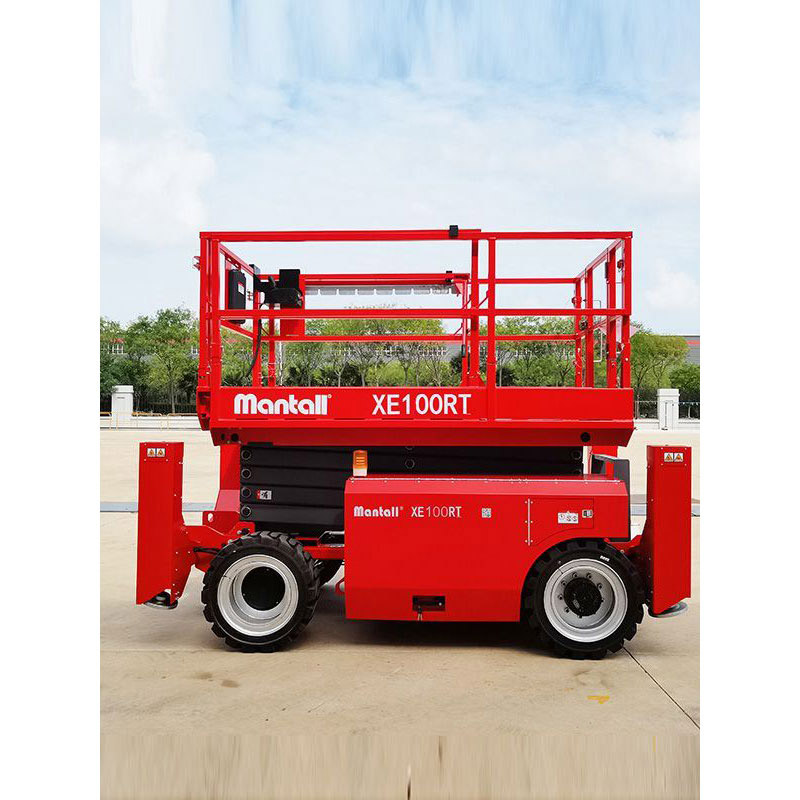

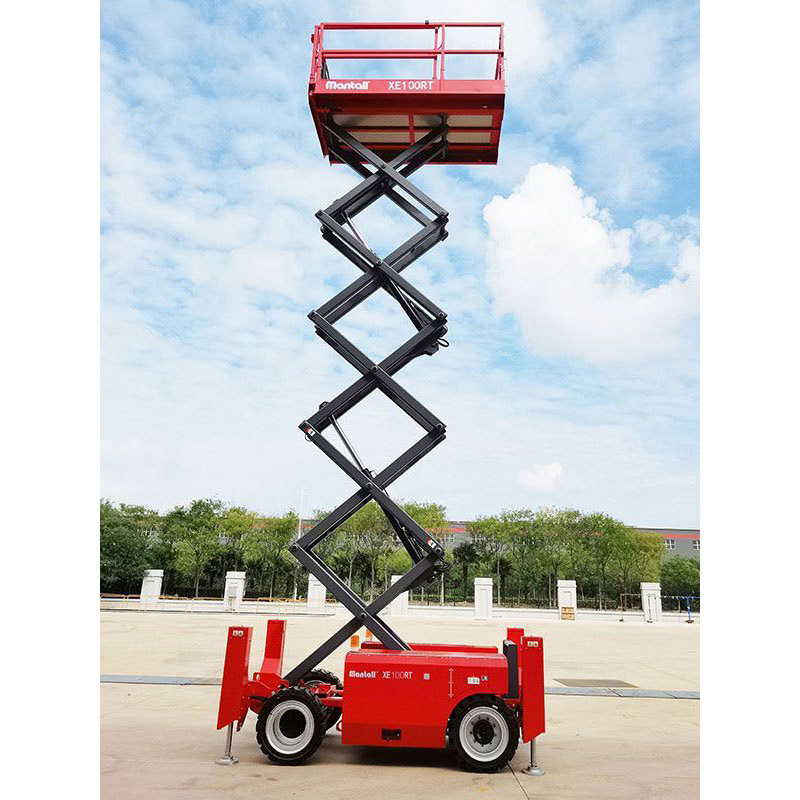

Mantall XE100RT – 10m
Mantall XE-RT series self-propelled rough terrain scissor lifts are a type of aerial work platform that uses battery power and operates without emission and noise.
The Mantall XE100RT has a maximum working height of 10 meters and a load capacity of 567 kg.
The lift has the characteristics of 35% gradeability, maximum traction speed of 4km/h, full-height driving, no emission and no noise. It is equipped with on-board diagnostic system, fault alarm device and strong power.
This lift has excellent driving force and climbing ability for rough terrain.
Call for Price
Saada taotlusStandard Features
- Foldable guardrail
- Diagnostic system
- AC wiring to platform
- 2 wheel drive
- Tilt level sensor with an audible alarm
- Lowering alarm
- Horn
- Hour meter
- Emergency pump
- Proportional controls
- Solid rough tire
- Safety brackets
- Dual flashing beacon
Optional
- Automatic leveling hydraulic outriggers
- Airline to platform
- Overload sensor
- Lithium battery
- Non-mark rough tires
Function Description
- Electric rough terrain scissor lift has zero emission and no noise characteristic. It also has strong climbing function.
- Super load capacity, stable lifting, safe and reliable
- 4 wheel drive with strong power and fast walking speed
- With Diagnostic system, intelligent fault alarm system and other functions
