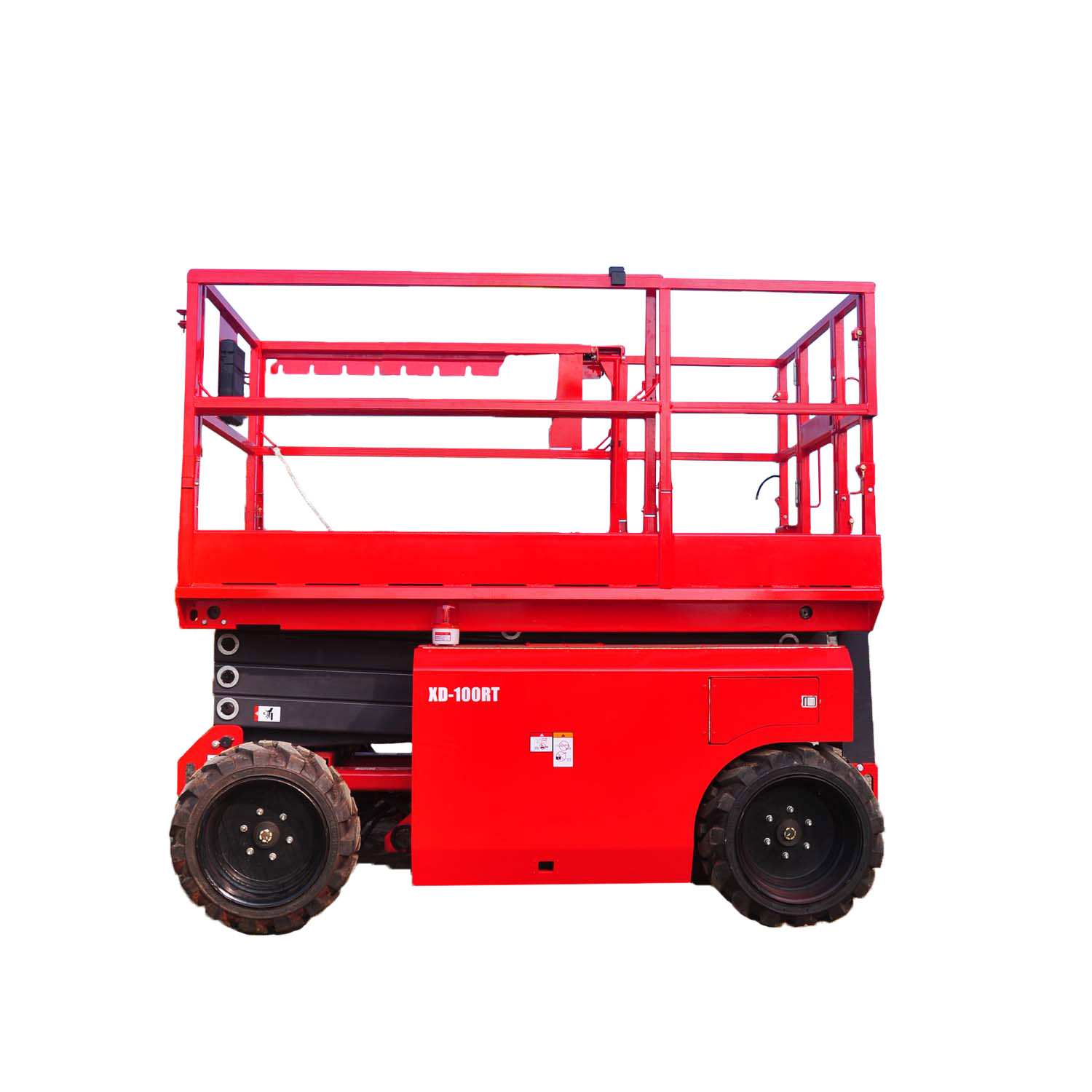

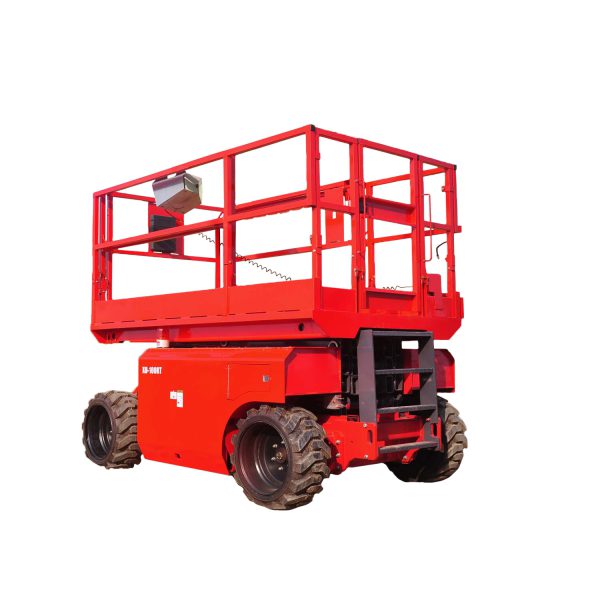

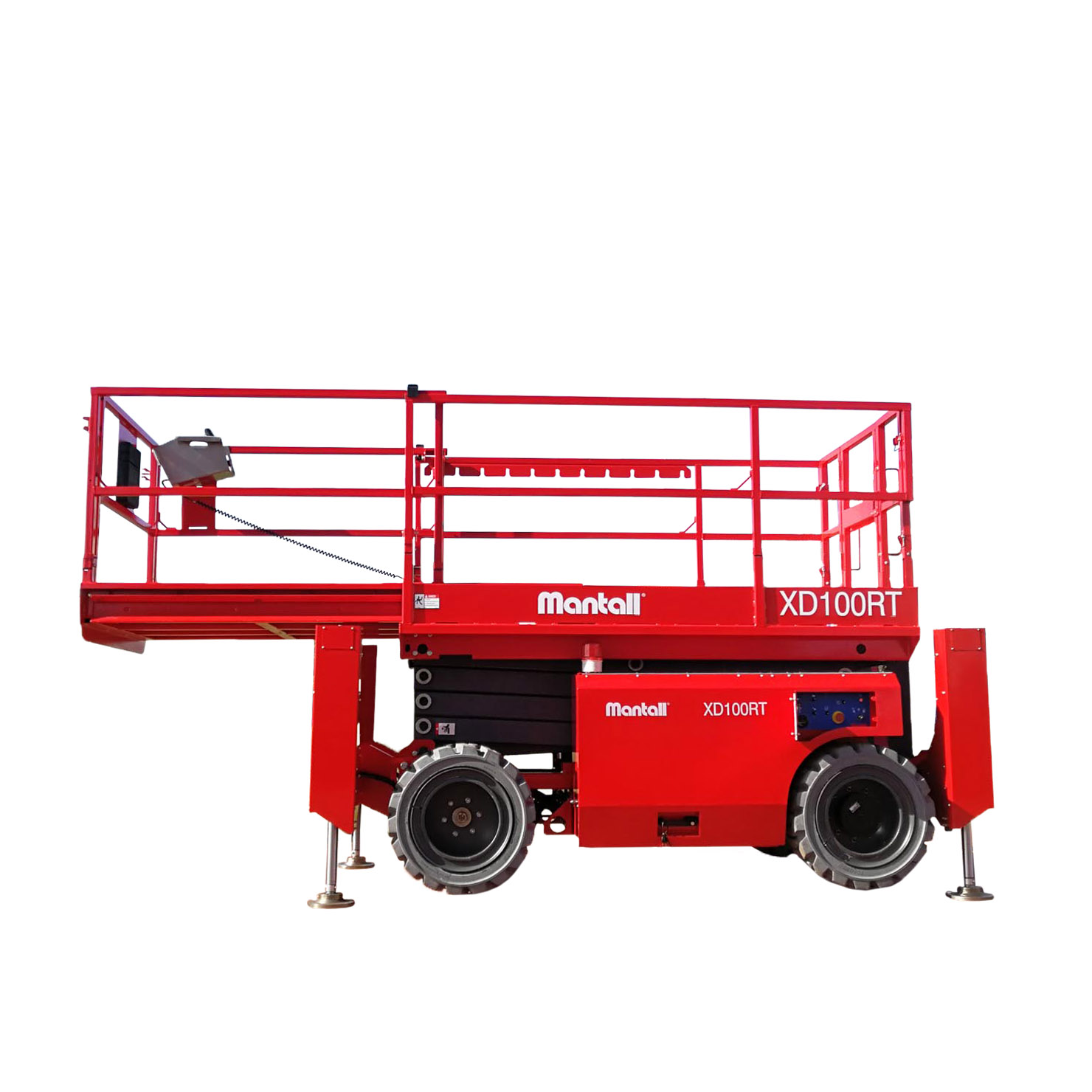

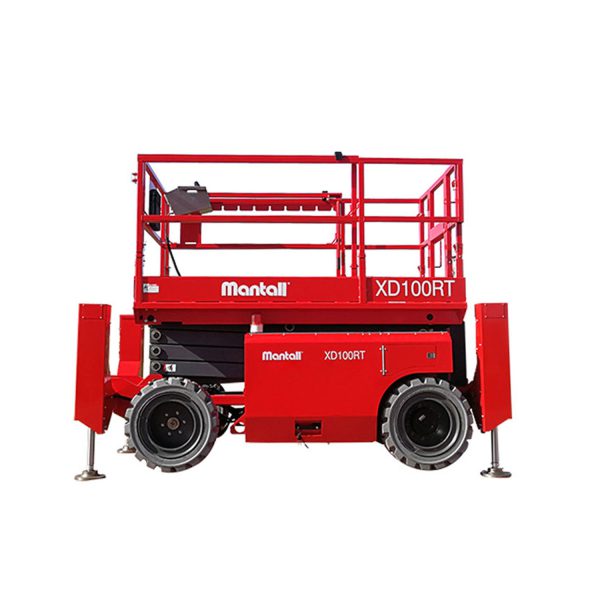

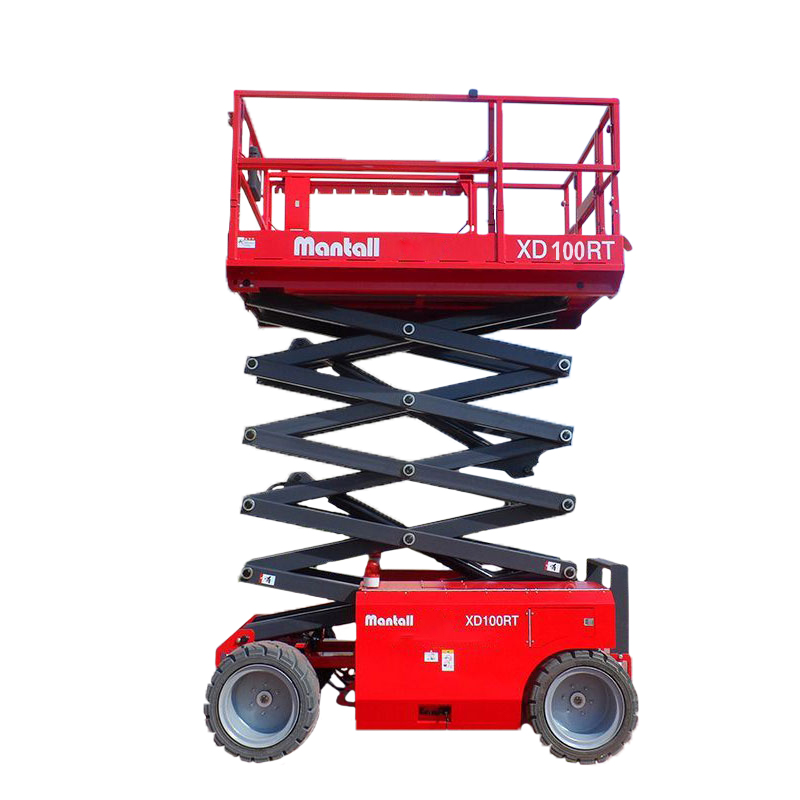

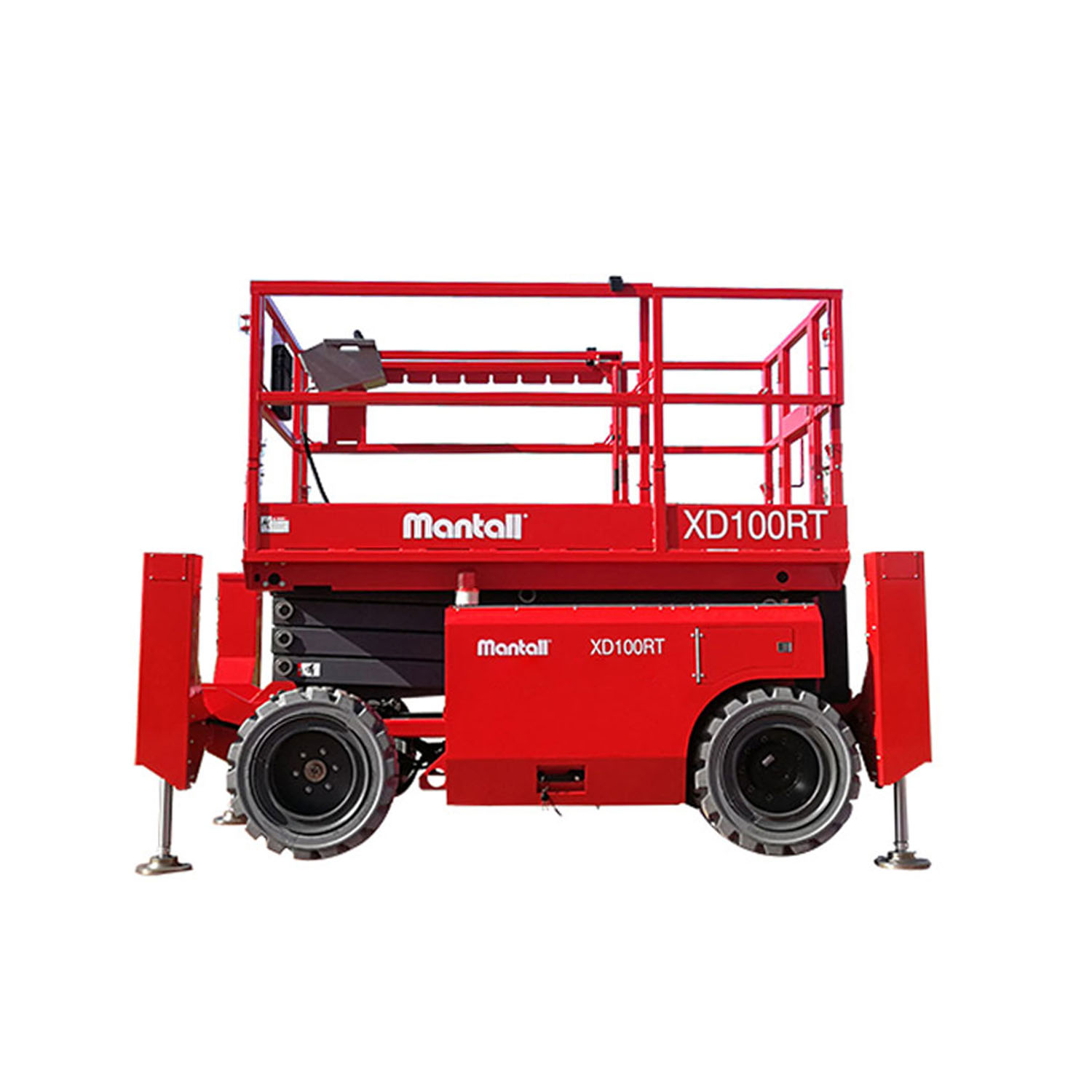

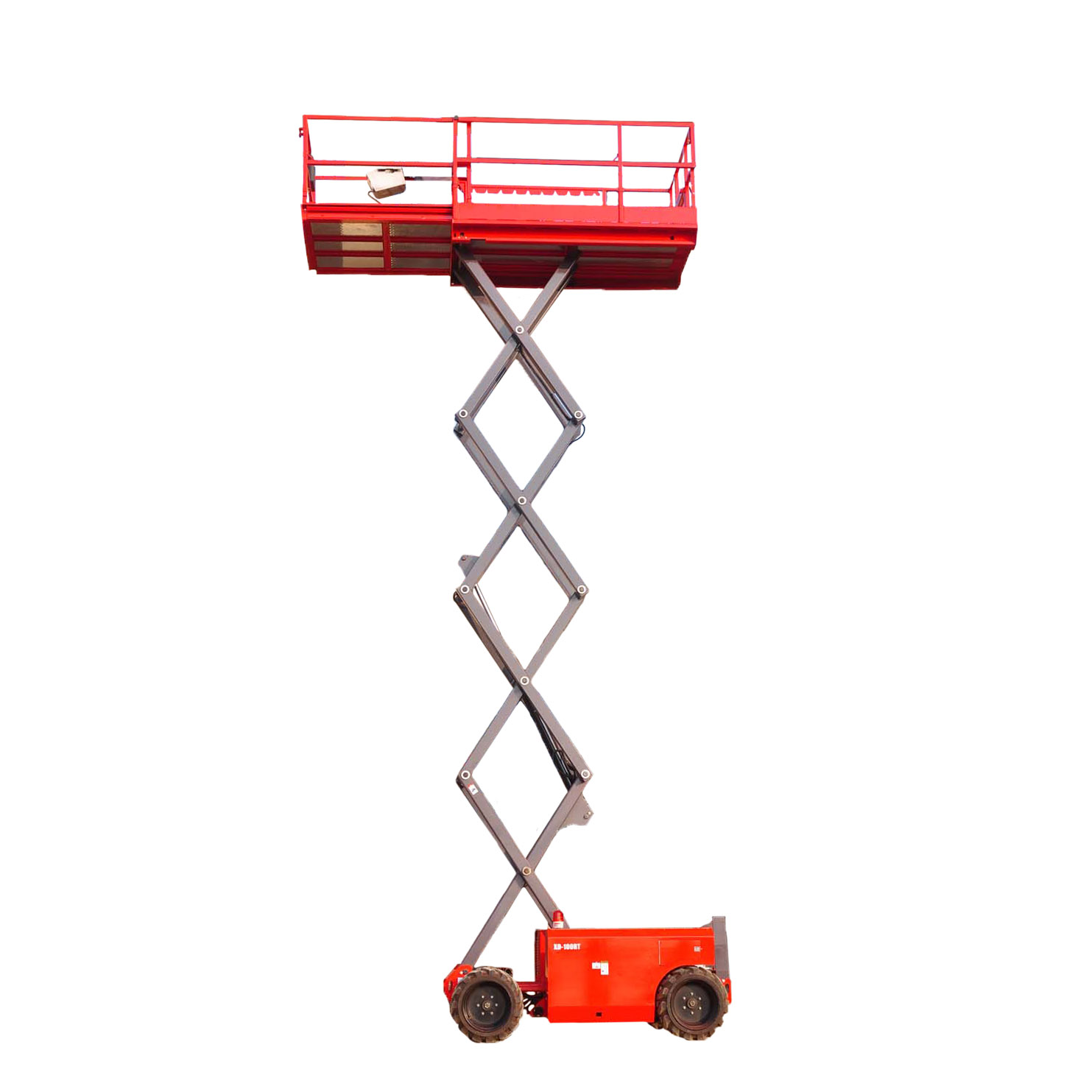

Mantall XD100RT – 10m

Mantall XD100RT is an all-terrain scissor lift with a maximum working height of 10 meters. The machine has a platform capacity of 567 kg.

The lift is equipped with a diesel engine, four-wheel drive and 40 percent gradeability, enabling you to perform most jobs in rough terrain.

The XD100RT also has a number of safety features for safe operation, as well as joystick with proportional control for lifting and traveling, making the lift very easy to use.

Call for Price

Saada taotlus
Working height max H1


Platform height max H2


Platform extension

1.5 m

Lifting capacity

567 kg

Lifting capacity on the extension

136 kg

Dimension of the platform B*C*A

2.5*1.6*1.15 m

Platform length with extension K

4 m

Length and width E*F

2.67 * 1.76 m

Height D

2.4 m

Height - guardrail down M

1.7 m

Wheelbase G

1.89 m

Ground clearance H

0.17 m

Turning radius-inside

1.58 m

Turning radius-outside

3.89 m

Raising time/lowering time

40/35 s

Drive speed-stowed

4.0 km/h

Drive speed-raised

0.8 km/h



Tilt (front to back/side to side)

3° / 2°

Outrigger level (front to back)

Outrigger level (side to side)



675*280 mm

Max. number of people in lift

2 personer

Power source


Wheel drive



3660 kg

Weight with outriggers

4120 kg

Mõõtmed 267 × 176 × 240 cm
Standard Features
  • Diesel engine
  • Foldable railing
  • Diagnostic system
  • AC wiring to platform
  • 4 WD
  • Tilt sensor with alarm
  • Emergency lowering
  • Emergency stop
  • Hour meter
  • Warning light
  • Proportional driving
  • Solid tires for terrain
  • Push-out on platform
  • CE-marked
