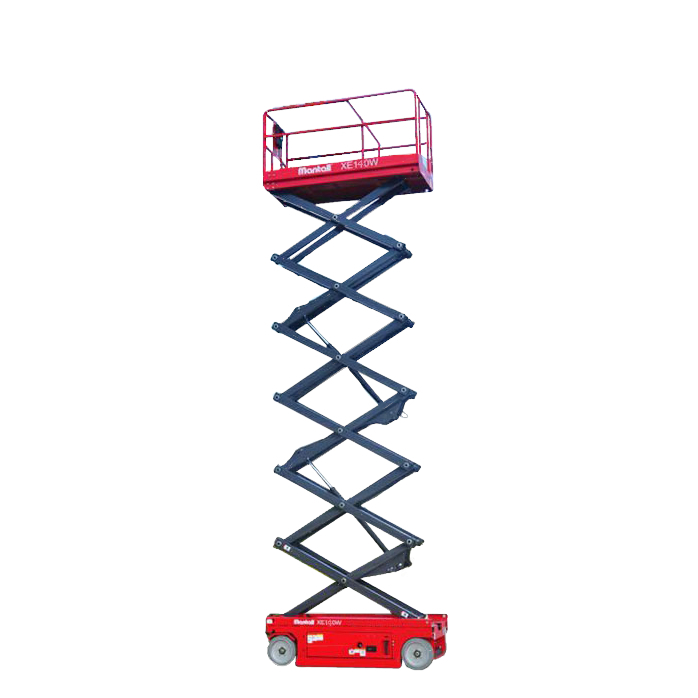

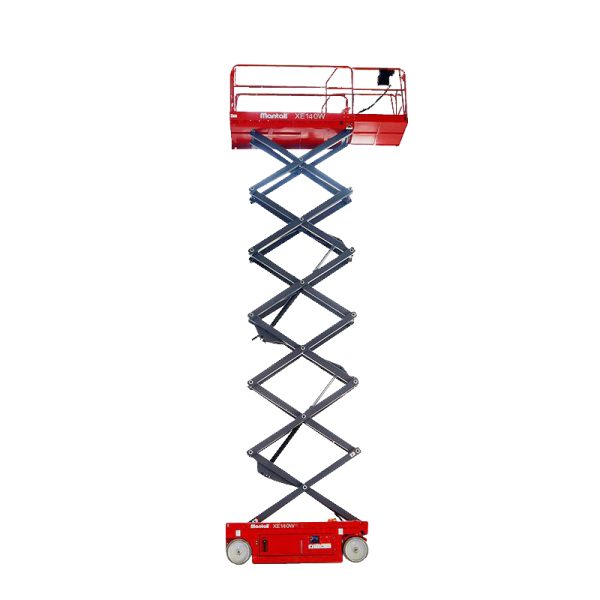

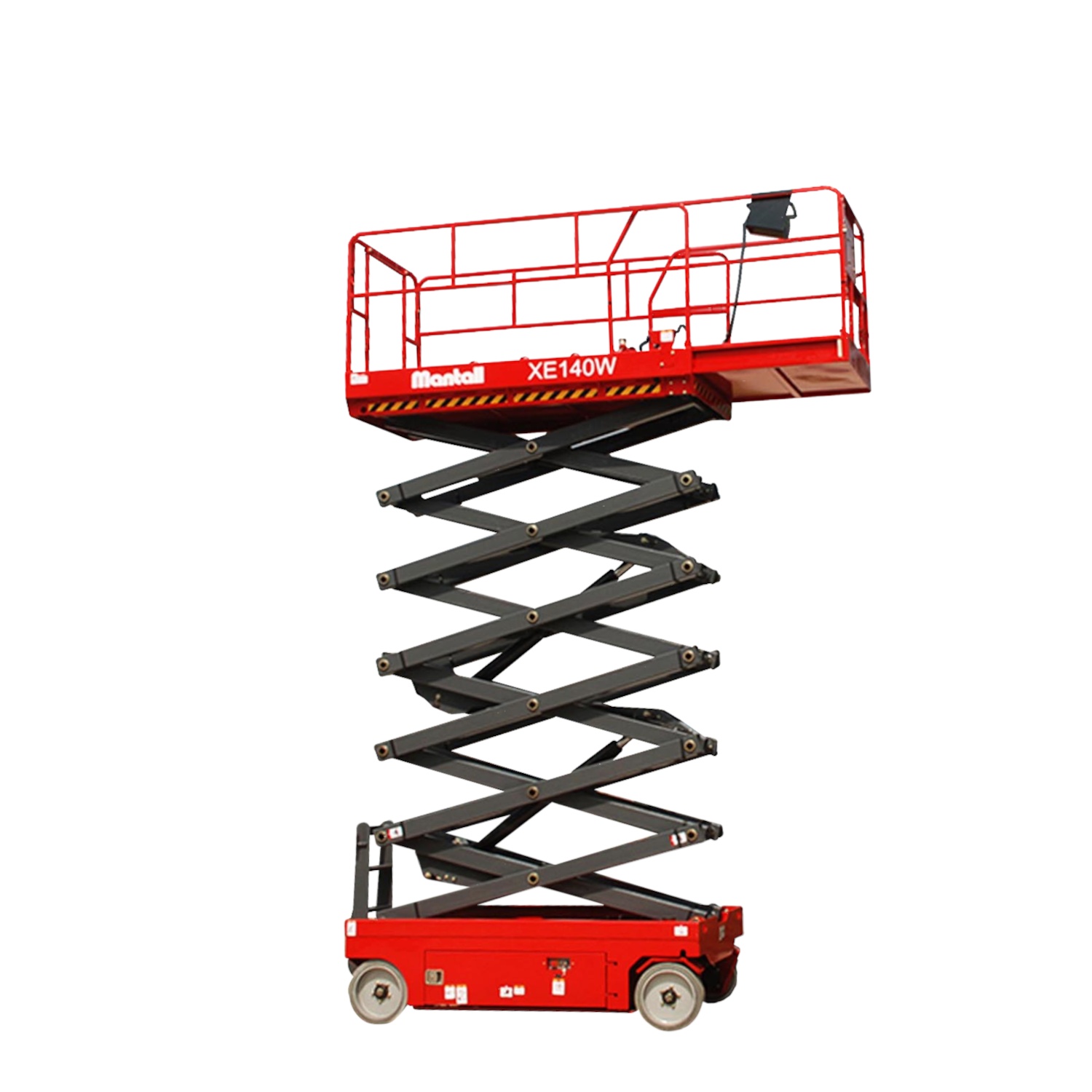

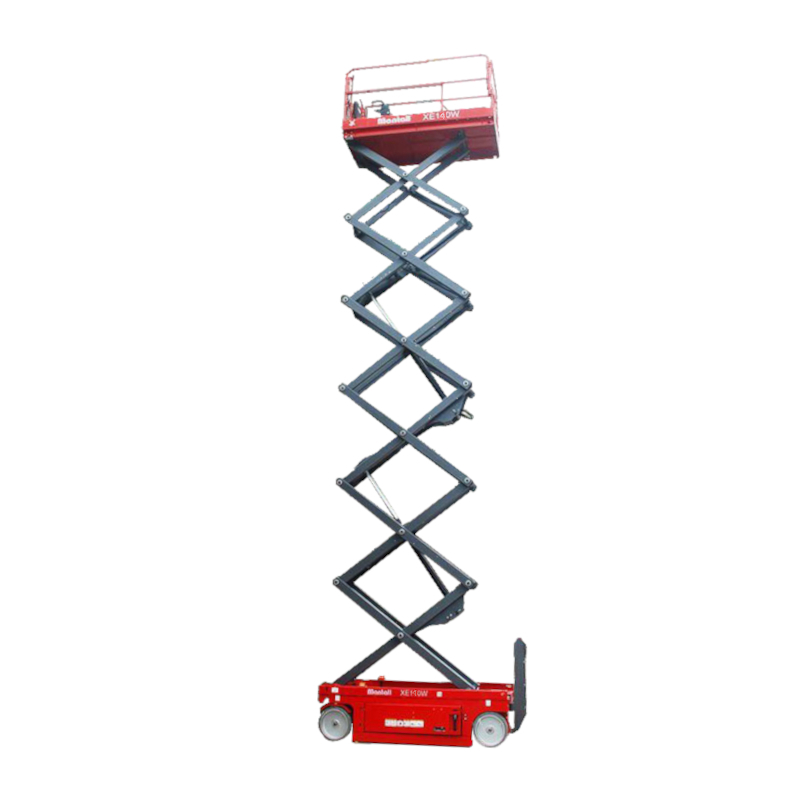

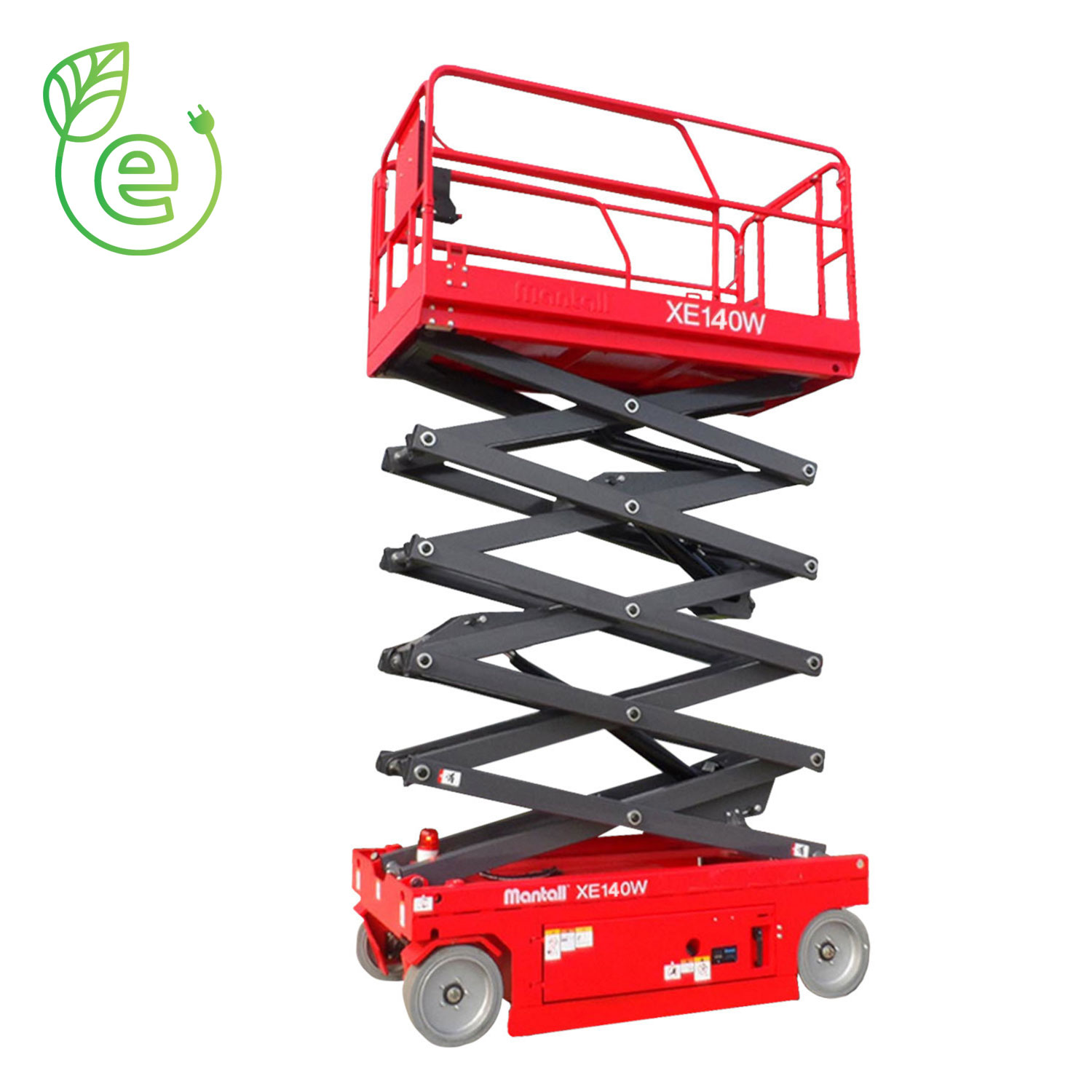

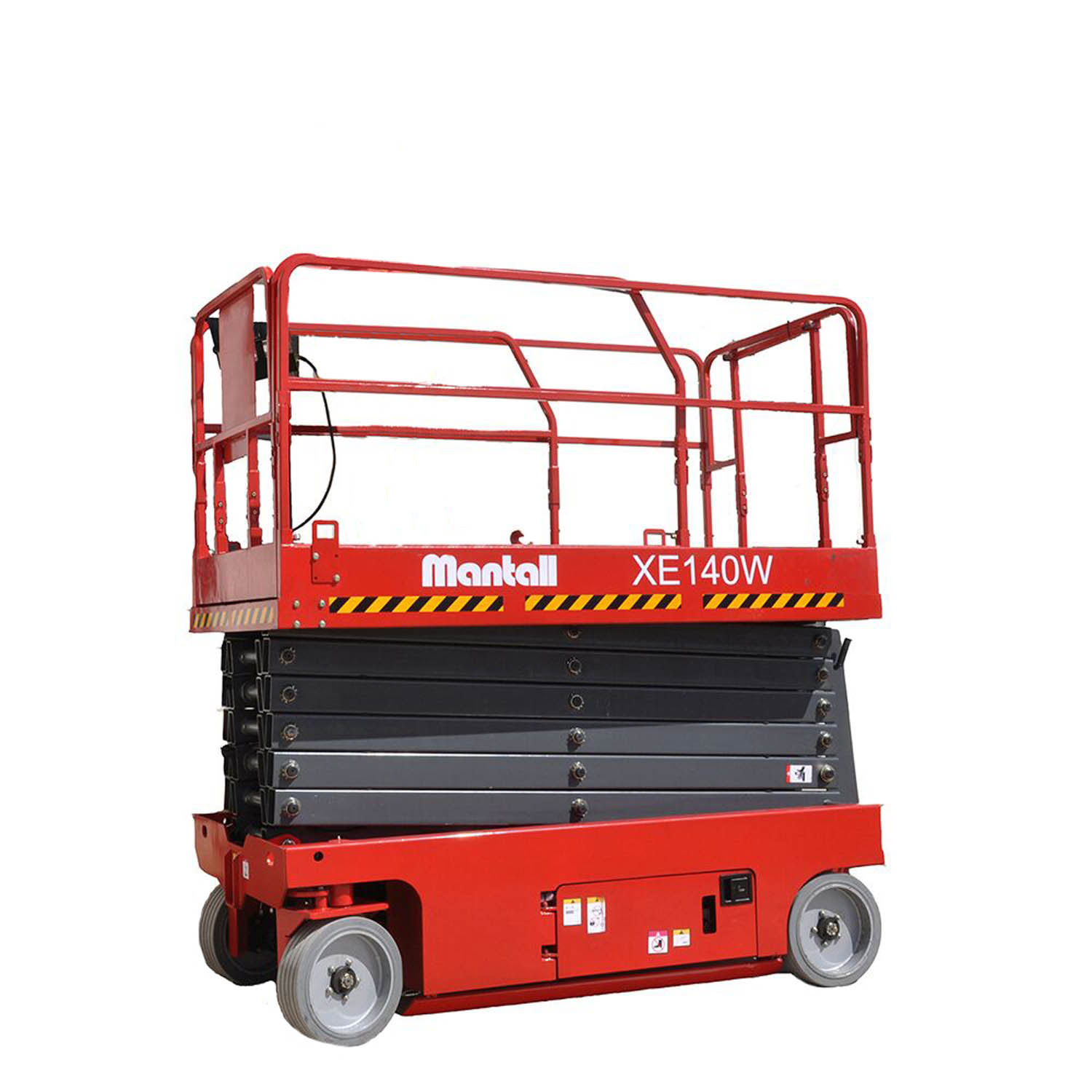

Mantall XE140W – 14m


Versatile electric scissor lift for indoor use and/or flat surfaces. The lift has a maximum working height of up to 14 m and allows for 2 persons in the basket.

Mantall XE140W is intended for those who need platform space and high lifting capacity. The lift has a platform width of 1.12m and a lifting capacity of 350 kg, providing plenty of space for extra work equipment.

The lift has very low noise levels, no emissions and is suitable for indoor use. It can be operated from full height and has a 1m extendable platform.

The lift also has a number of safety features for safe operation, as well as joystick with proportional control for lifting and driving, making the lift very easy to use.

Call for Price

Saada taotlus
Working height max H1

14 m

Platform height max H2

12 m

Platform extension


Lifting capacity

350 kg

Lifting capacity on the extension

120 kg

Max. platform occupancy

2 pers

Dimension of the platform B*C*A

2.25 * 1.14 * 1.12 m

Length and width E*F

2.51 * 1.2 m

Height D

2.55 m

Height-guardrails folded M

1.87 m

Wheelbase G

1.85 m

Ground clearance H

0.1 m

Ground clearance-deployed potholes

0.019 m

Turning radius-inside
Turning radius-outside

2.3 m

Raising time/lowering time

61/42 s

Drive speed-stowed

3.4 km/h

Drive speed-raised

0.7 km/h



Tilt (front to back/side to side)

3° / 2°

Tire size

406 * 127 mm

Power source


Kaal 3245 kg
Mõõtmed 251 × 120 × 255 cm
Standard Features
  • Battery powered
  • Proportional driving
  • 2WD
  • Extension on platform
  • Foldable railing
  • Non-marking wheels
  • Automatic braking system
  • Emergency lowering
  • Emergency stop
  • Self-diagnosis system
  • Tilt sensor with alarm
  • Hour meter
  • Forklift pockets
  • Warning light
  • Integrated battery charger
  • CE-marked
