| Working height max H1 | 5 m |
|---|---|
| Platform height max H2 | 3 m |
| Lifting capacity | 240 kg |
| Max. platform occupancy | 2 pers |
| Dimension of the platform B*C*A | 1.15 X 0.76 X 1.1 m |
| Length and width E*F | 1.37 X 0.76 m |
| Height stowed D | 1.85 m |
| Wheelbase G | 1.07 m |
| Ground clearance H | 0.06 m |
| Tilt sensor-front to back | 2° |
| Tilt sensor-side to side | 1° |
| Raising time/Lowering time | 28/24 s |
| Tire | 150mm |
| Power source | 12V/100AH |
| Kaal | 480 kg |
| Mõõtmed | 137 × 76 × 185 cm |

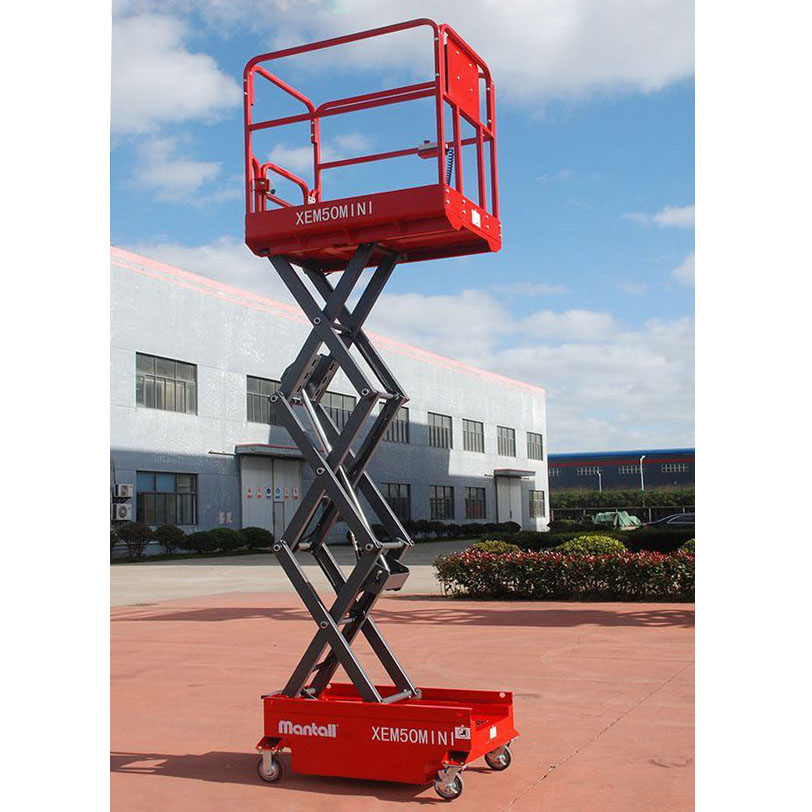

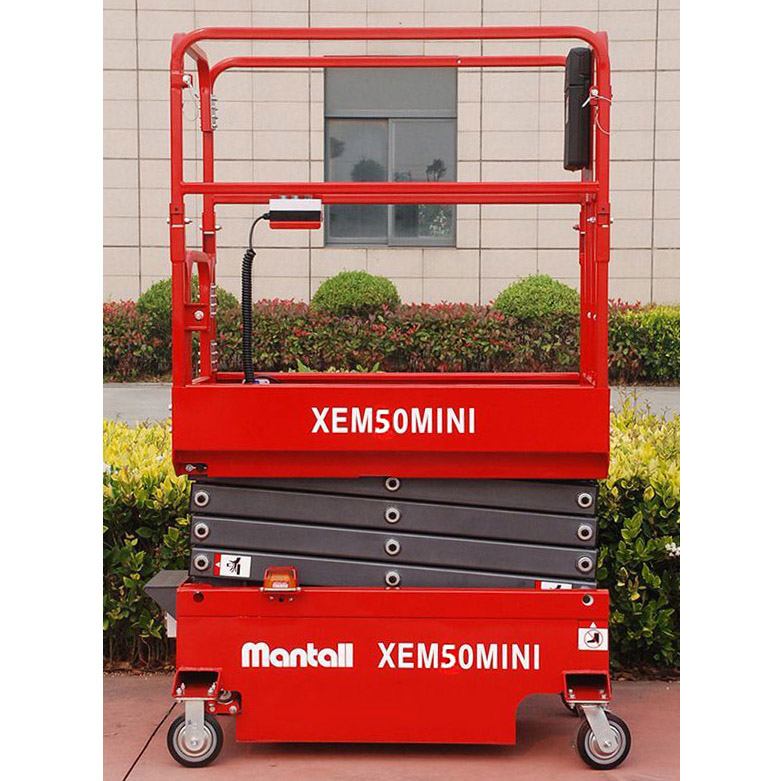

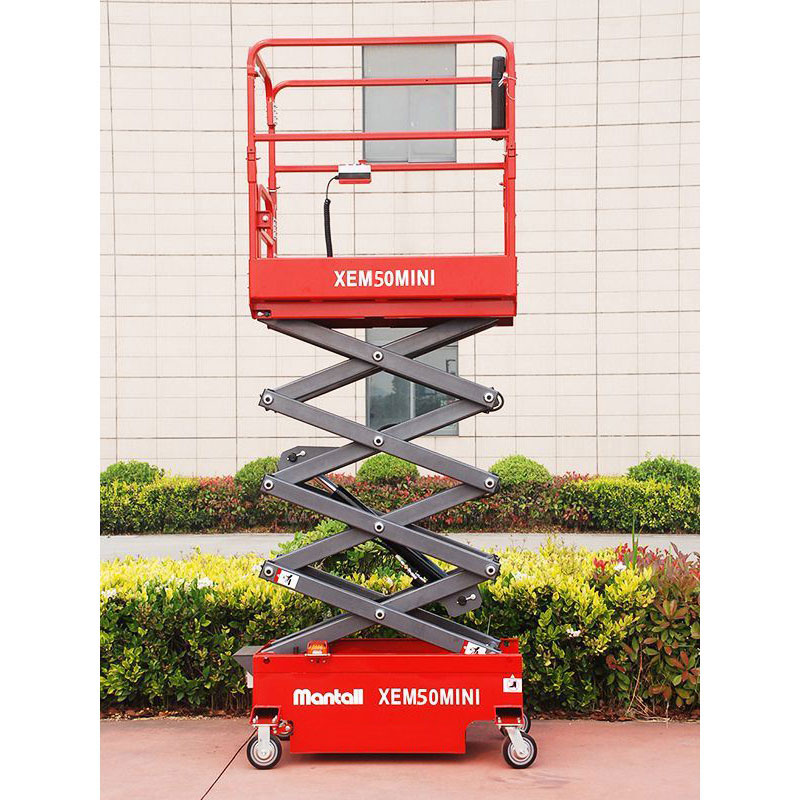

Mantall XEM-50MINI – 5m
Mantall XEM-50MINI is a small, manual scissor lift that is very easy to use. The lift has a working height of up to 5 m and a lifting capacity of 240 kg.
The scissor lift weighs no more than 480 kg and due to its small size, it can easily pass through most doors and can be used in small and confined spaces.
The lift is very easy to use and is particularly suitable for use in areas with little space or limited floor space.
Call for Price
Saada taotlusStandard Features
- Battery powered lift up/down
- Charger indicator
- Level indicator
- Emergency lowering system
- Emergency stop button
- Double front wheel brake
- Forklift pockets
- Non-marking wheels
- Load protection system
