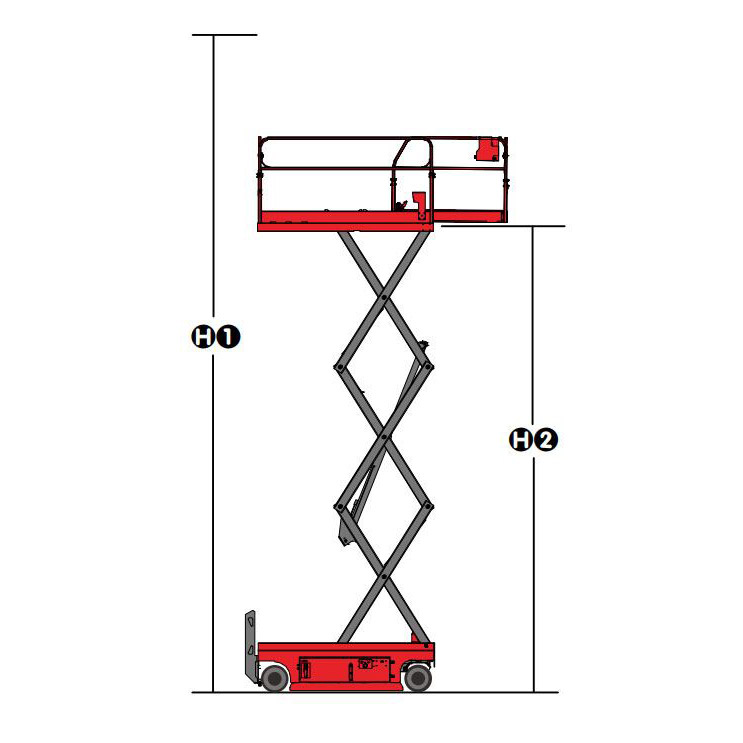

| Working height max H1 | 8 m |
|---|---|
| Platform height max H2 | 6 m |
| Platform extension size | 1 m |
| Lifting capacity | 350 kg |
| Lifting capacity on the extension | 120 kg |
| Max. platform occupancy | 2 pers |

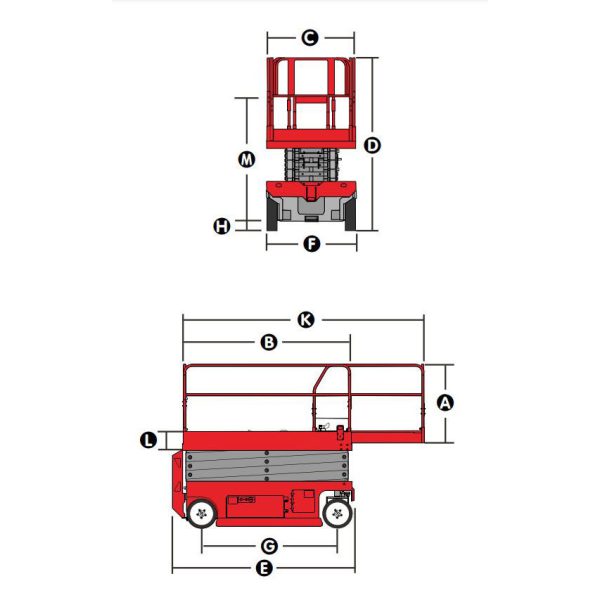

| Dimension of the platform B*C*A | 2.25 × 0.8 × 1.1 m |
| Length and width E*F | 2.5 * 0.8 m |
| Height D | 2.17 m |
| Height-guardrails folded M | 1.72 m |
| Wheelbase G | 1.85 m |
| Ground clearance H | 0.1 m |
| Ground clearance-deployed potholes | 0.019 m |
| Turning radius-inside | |
| Turning radius-outside | 2.12 m |
| Raising time/lowering time | 27/29 s |
| Drive speed-stowed | 3.4 km/h |
| Drive speed-raised | 0.7 km/h |
| Gradeability | 30% |
| Tilt (front to back/side to side) | 3° / 2° |
| Tire | 356*114*254 mm |
| Power source | 4×6V/225Ah |
| Kaal | 1910 kg |
| Mõõtmed | 250 × 80 × 217 cm |

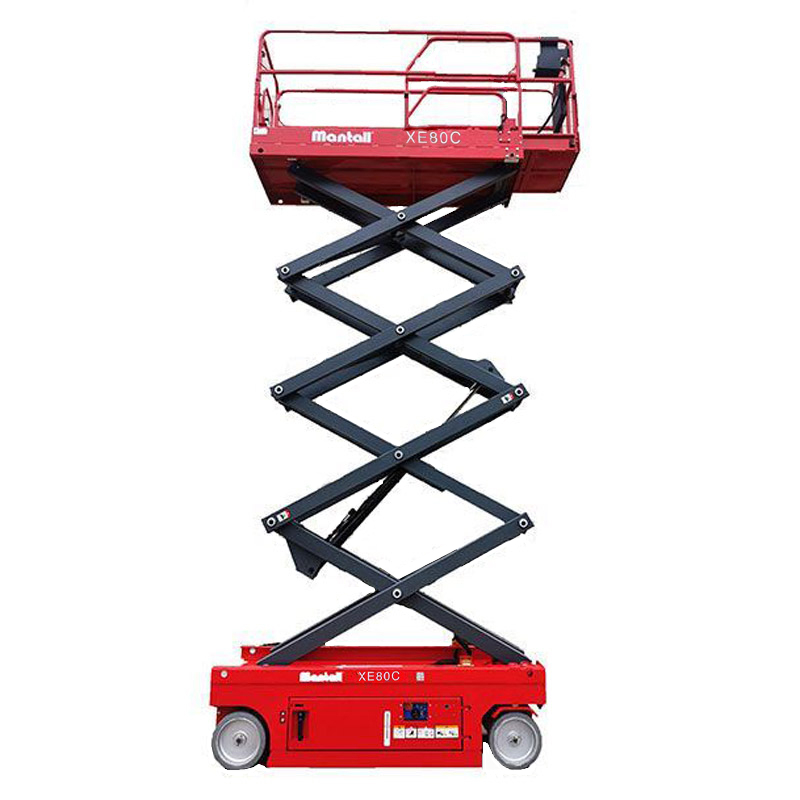

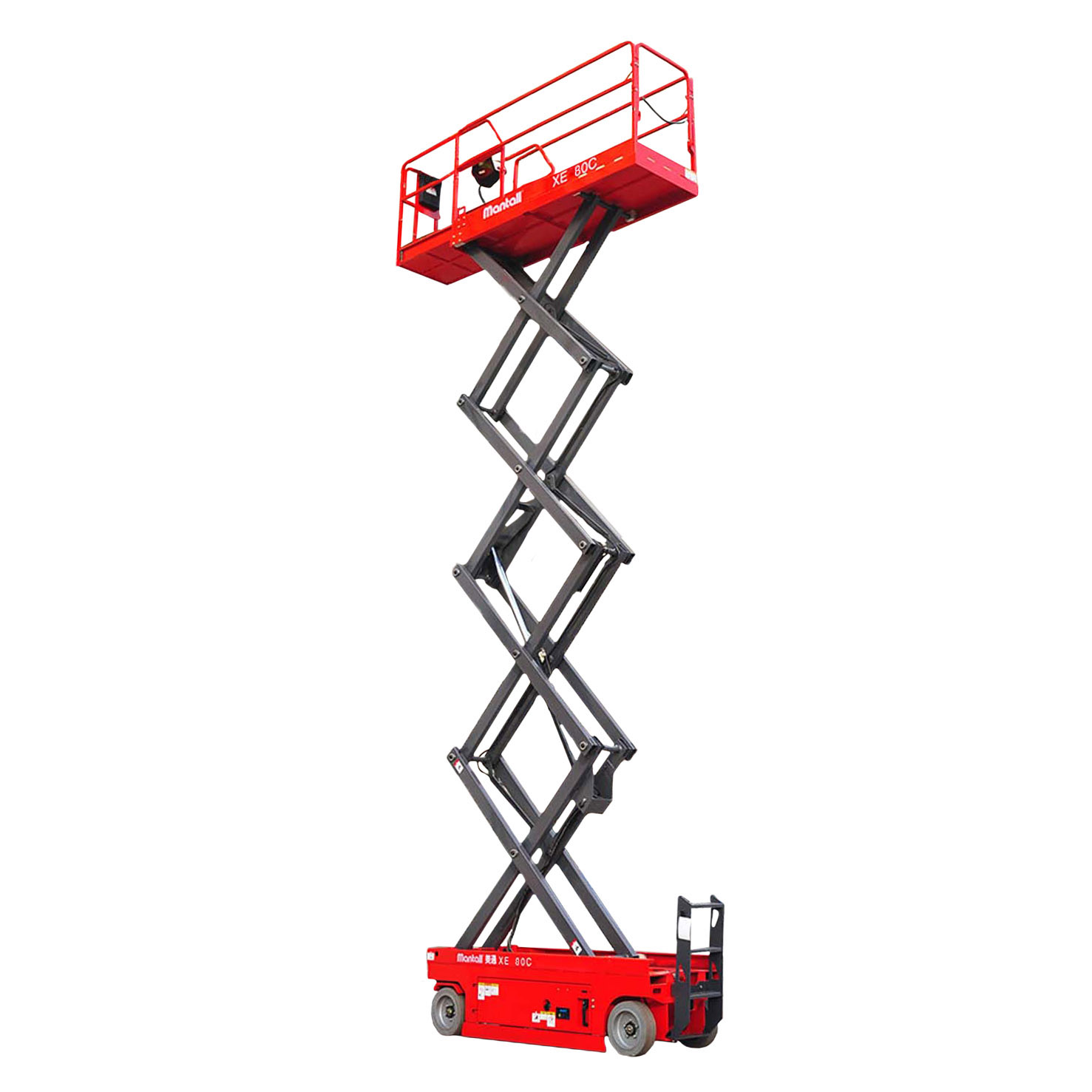

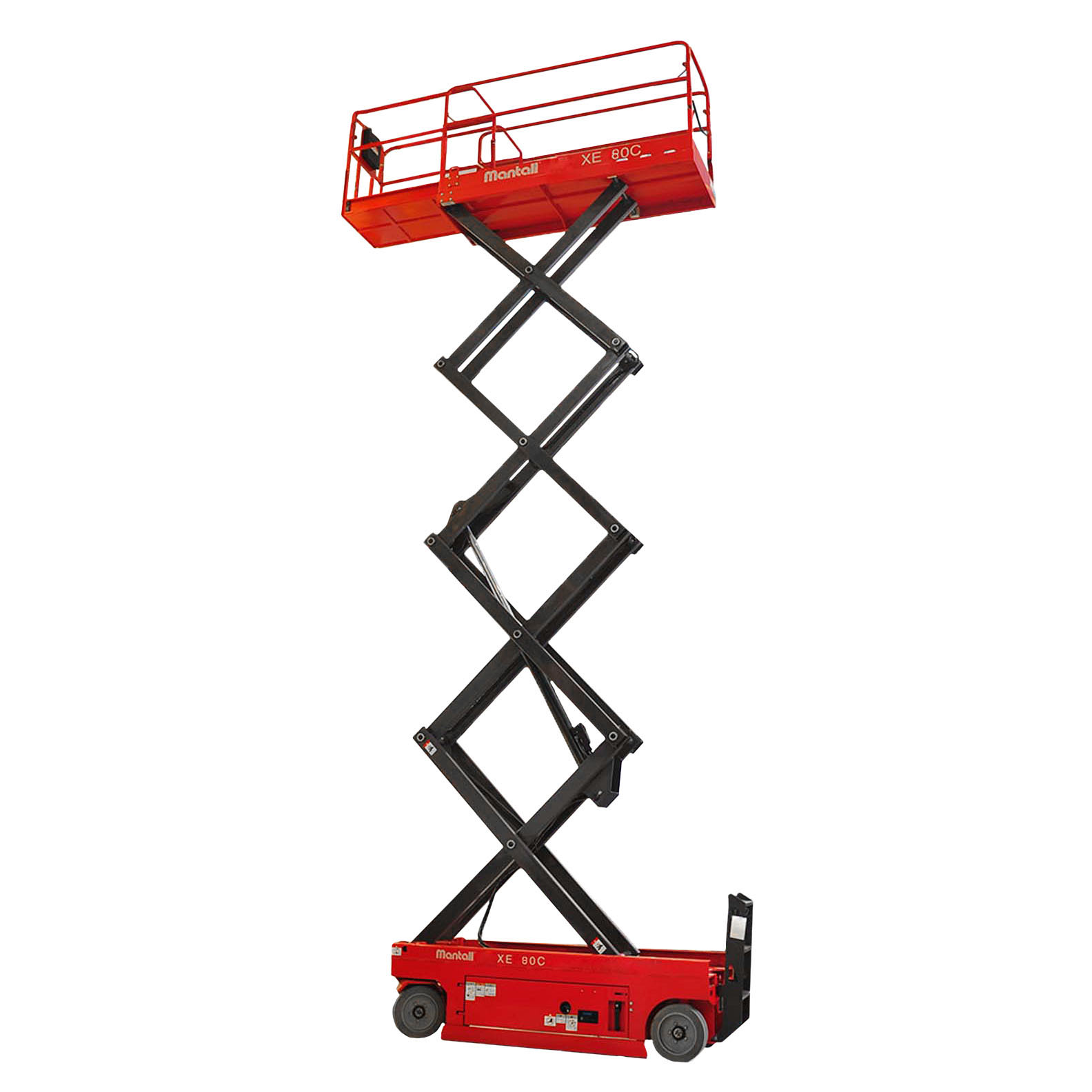

Mantall XE80C – 8m
Narrow electric scissor lift for indoor use and/or flat surfaces. Lifting capacity of 350 kg and working height up to 8m. Permitted for 2 persons in a basket.
Mantall XE80C has a very large lifting capacity and is therefore well suited for tasks that require a lot of weight. The lift also has very low noise levels, no emissions and is suitable for indoor use. It can be operated from full height and has a 1m extendable platform.
The lift also has a number of safety features for safe operation, as well as a joystick with proportional control for lifting and driving, making the lift very easy to use.
Call for Price
Saada taotlusStandard Features
- Battery powered
- Proportional driving
- 2WD
- Extension on platform
- Foldable railing
- Non-marking wheels
- Automatic braking system
- Emergency lowering
- Emergency stop
- Self-diagnosis system
- Tilt sensor with alarm
- Hour meter
- Forklift pockets
- Warning light
- Integrated battery charger
- CE-marked
