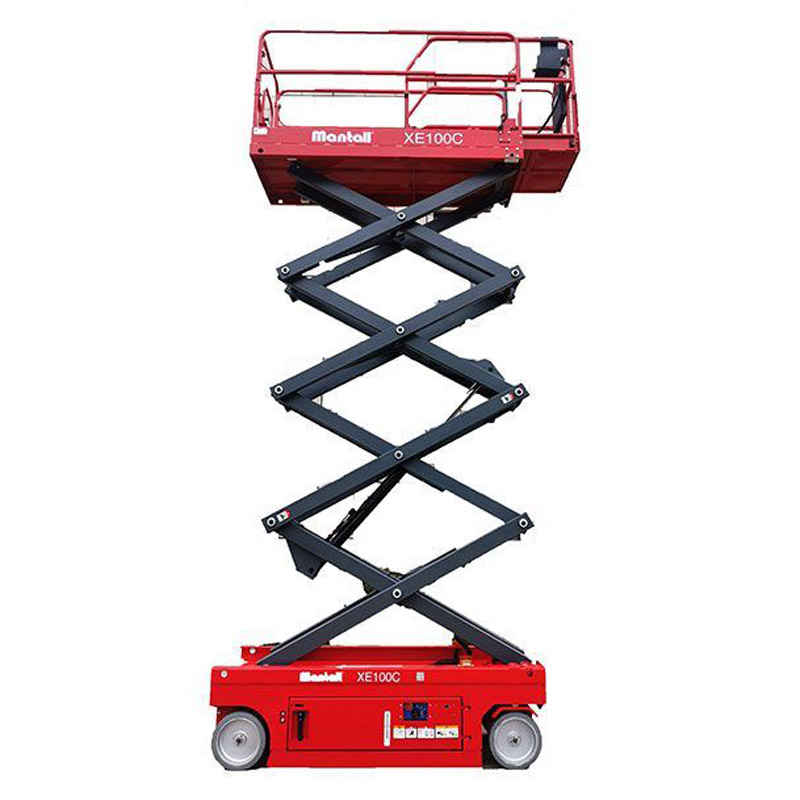

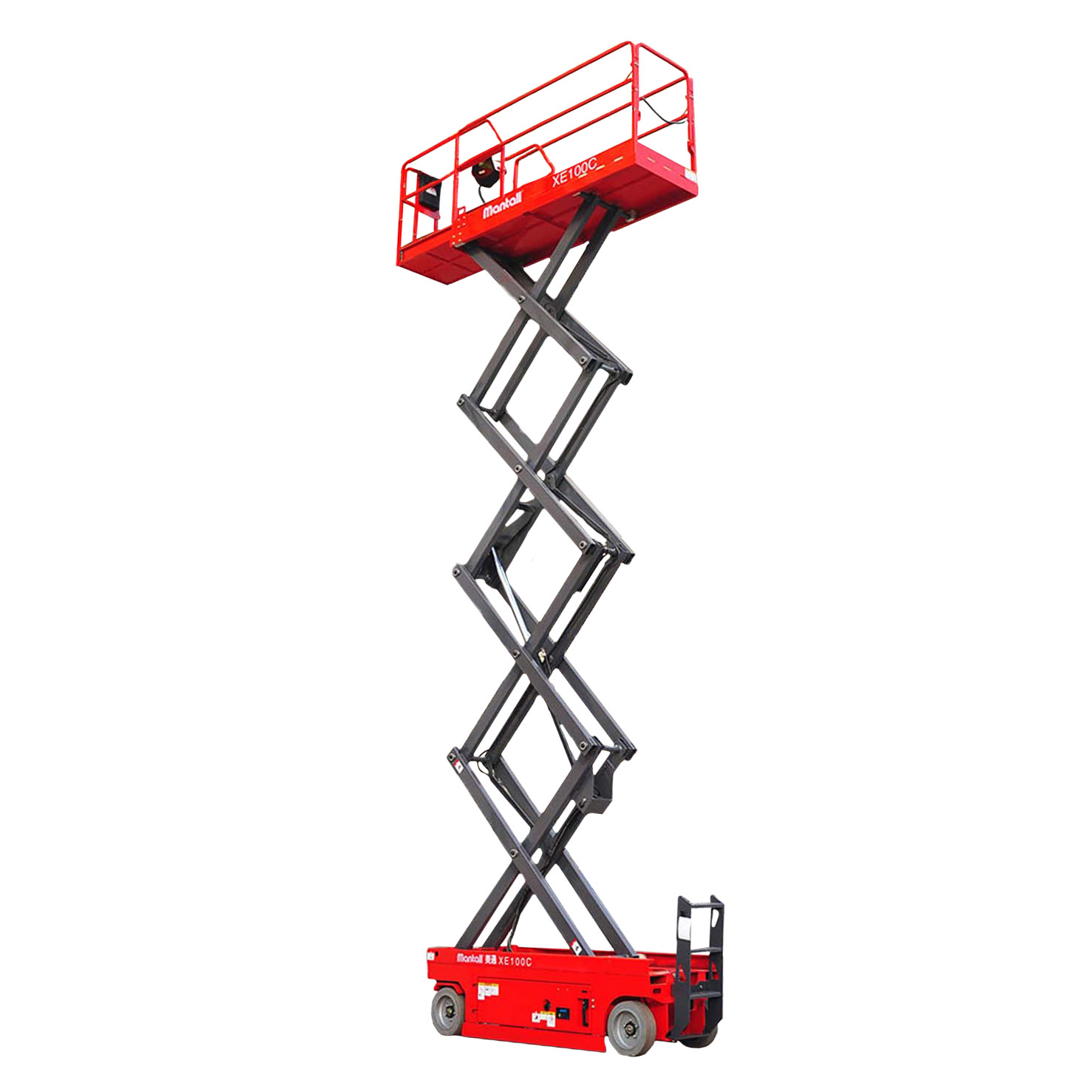

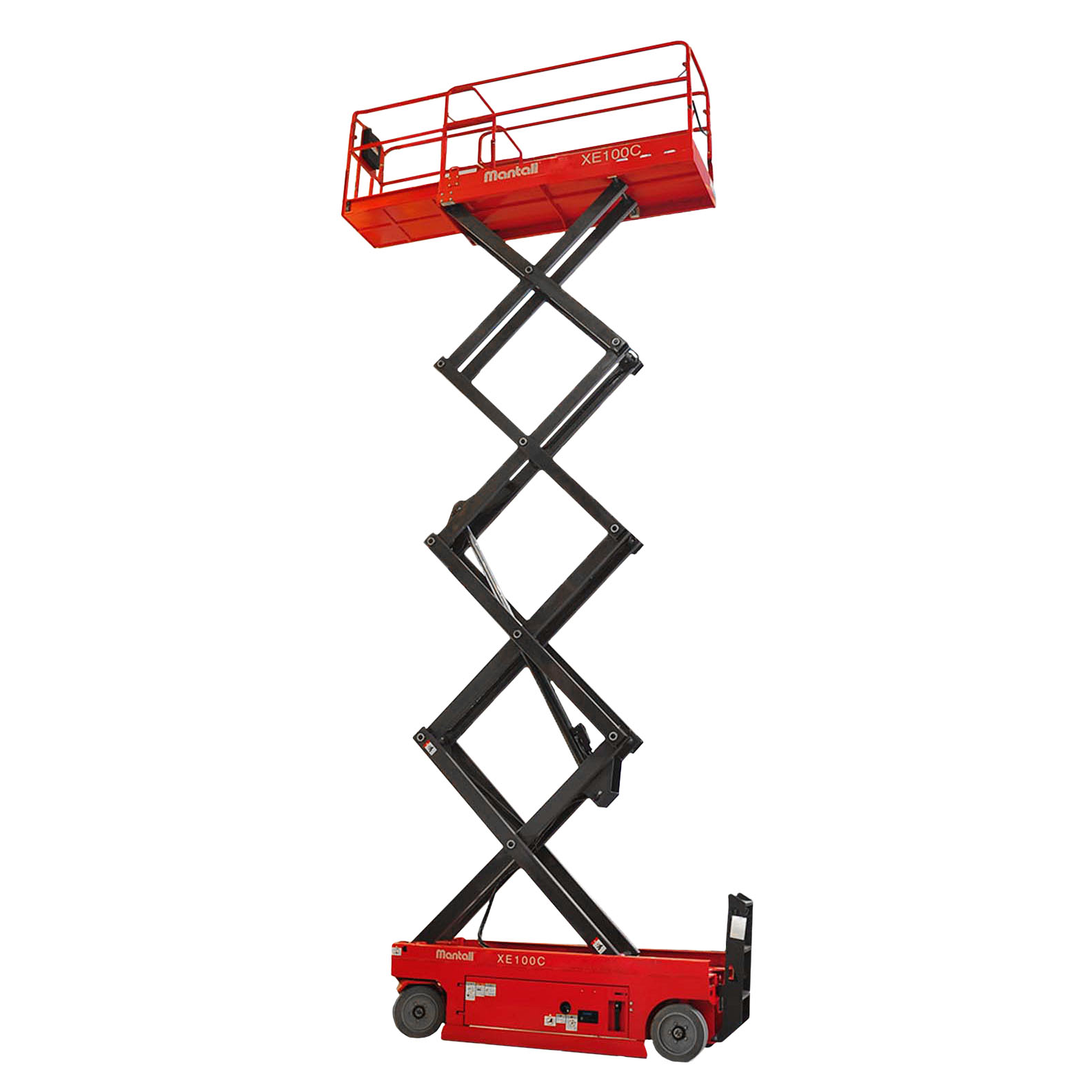

Mantall XE100C – 10m

Narrow electric scissor lift for indoor use and/or flat surfaces. Lifting capacity of 230 kg and working height up to 10 m. Permitted for 2 persons in basket.

Mantall XE100C has very low noise levels, no emissions and is suitable for indoor use. It can be operated from full height and has a 1m extendable platform.

The lift also has a number of safety features for safe operation, as well as joystick with proportional control for lifting and traveling, making the lift very easy to use.

Call for Price

Saada taotlus
Working height max H1

10 m

Platform height max H2

8 m

Platform extension size

1 m

Lifting capacity

230 kg

Lifting capacity on the extension

120 kg

Max. platform occupancy

2 pers

Dimension of the platform B*C*A

2.25 × 0.8 × 1.1 m

Length and width E*F

2.5 * 0.8 m

Height D

2.3 m

Height-guardrails folded M

1.86 m

Wheelbase G

1.85 m

Ground clearance H

0.1 m

Ground clearance-deployed potholes

0.019 m

Turning radius-inside
Svingradius utsideTurning radius-outside

2.12 m

Raising time/lowering time

35/17 s

Drive speed-stowed

3.4 km/h

Drive speed-raised

0.7 km/h

Gradeability

25%

Tilt (front to back/side to side)

3° / 2°

Tire

356 * 114 * 254 mm

Power source

4×6V/225Ah

Kaal 2000 kg
Mõõtmed 250 × 80 × 230 cm
Standard Features
  • Battery powered
  • Proportional driving
  • 2WD
  • Extension on platform
  • Foldable railing
  • Non-marking wheels
  • Automatic braking system
  • Emergency lowering
  • Emergency stop
  • Self-diagnosis system
  • Tilt sensor with alarm
  • Hour meter
  • Forklift pockets
  • Warning light
  • Integrated battery charger
  • CE-marked
