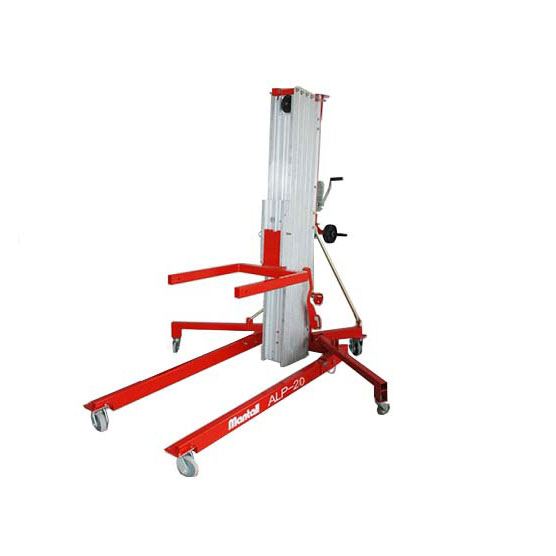

Mantall APL-20

ALP-20

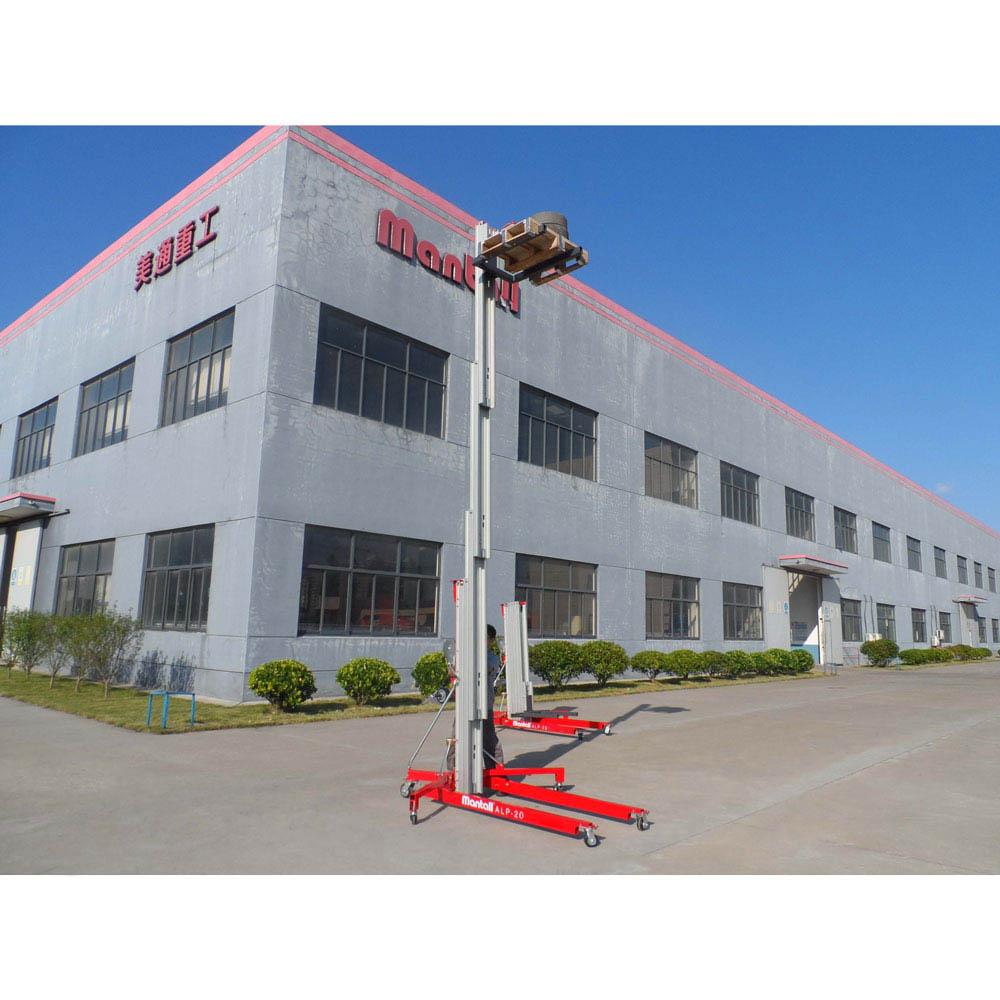

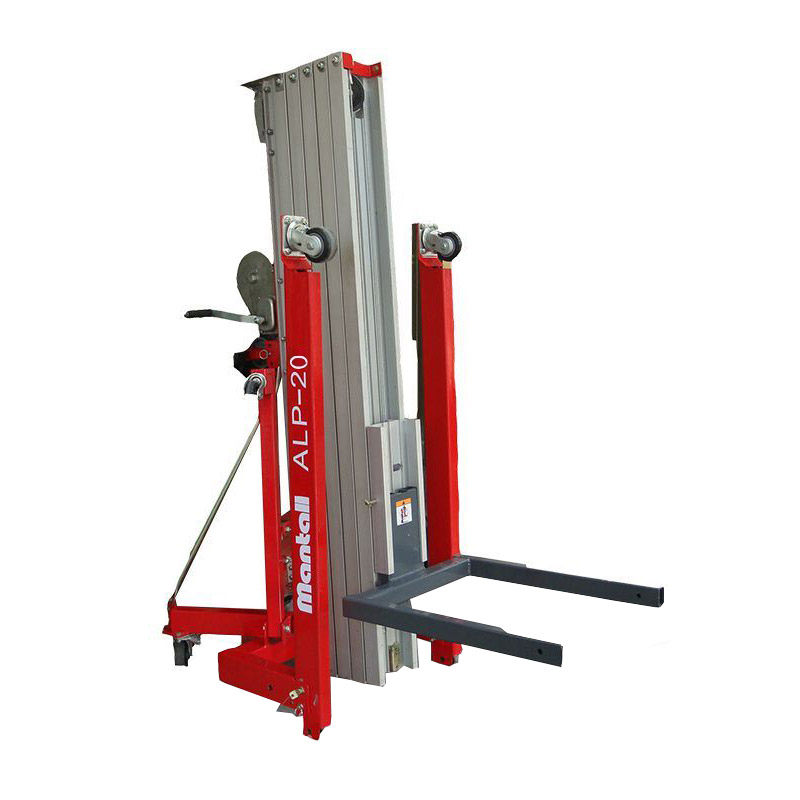

The Mantall ALP-20 super material lift can lift a heavy load of 363kg up to 6.45 meters in height. The ALP series super material lift is a manually operated material lift with no power source required.

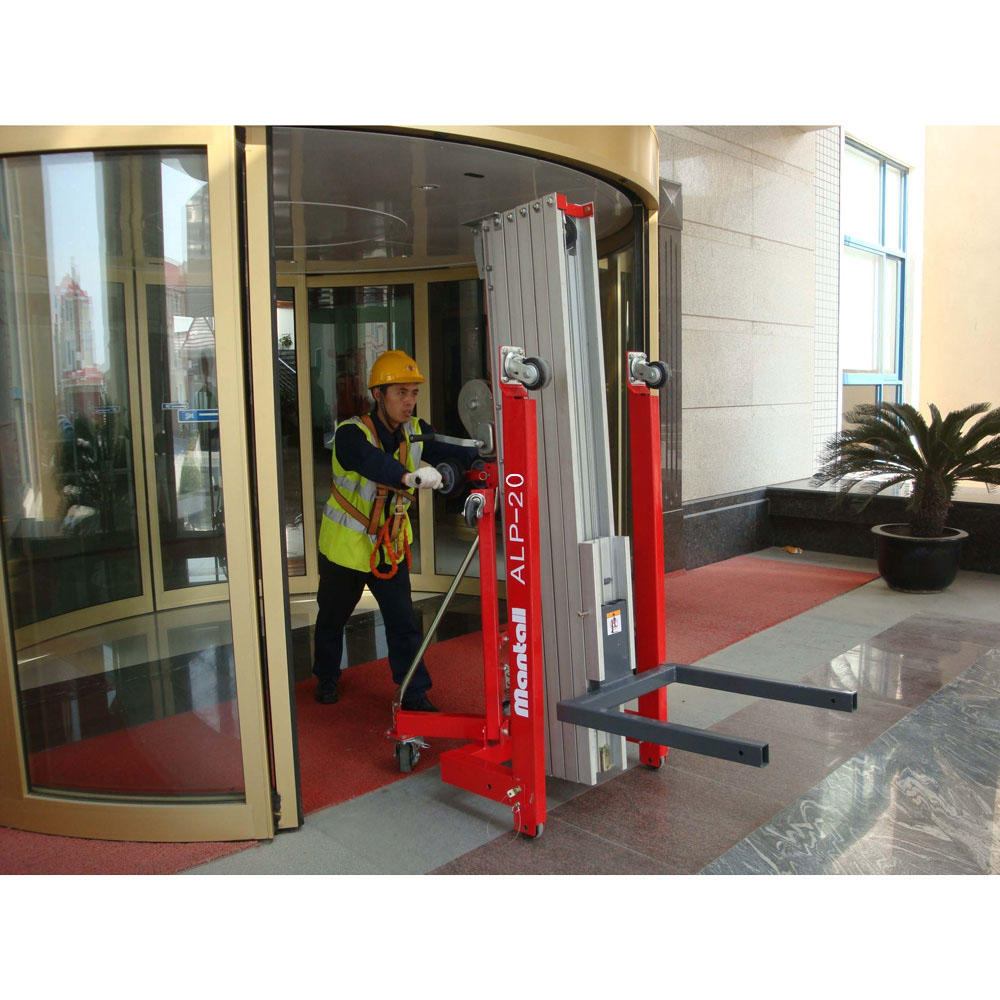

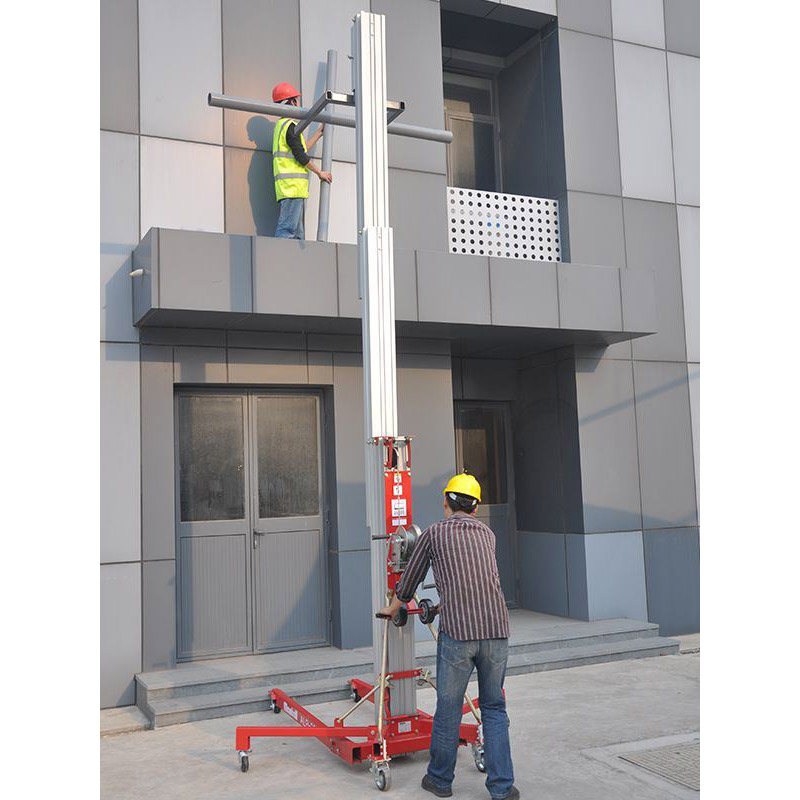

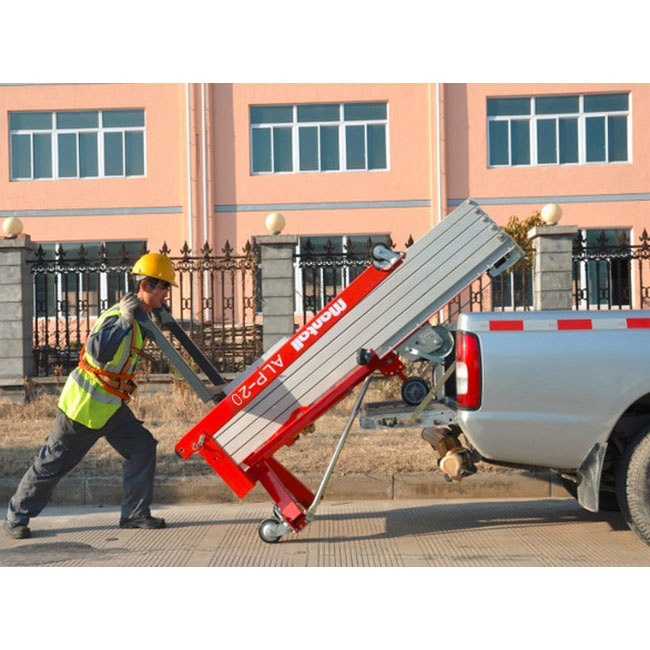

The compact structure, lightweight and portable design enable it to effortlessly pass through standard doorways, as well as easily to be set up and loaded into a truck. The product is ideal for applications requiring lifting tasks, such as warehouse picking, ducting and ventilation installation, stage construction, HVAC repairing, etc.

Max height: 6.45m
Max load: 363kg
Product height: 2.05m
Product width: 0.79m

3 079(eks. mva)

Saada taotlus

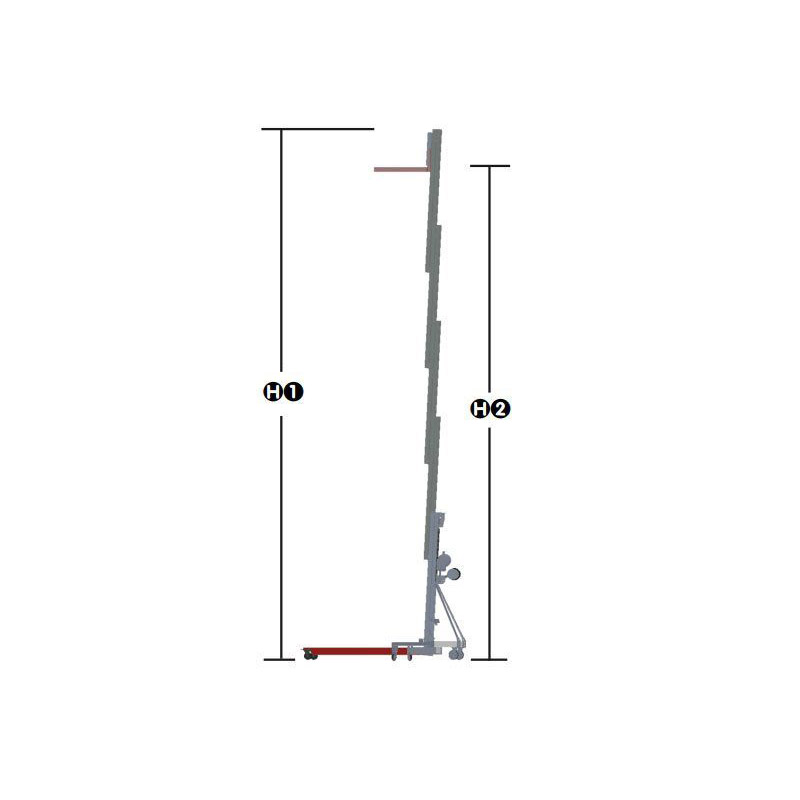

Standard height forks-up H1

6.45m

Standard height forks-down H2

5.93m

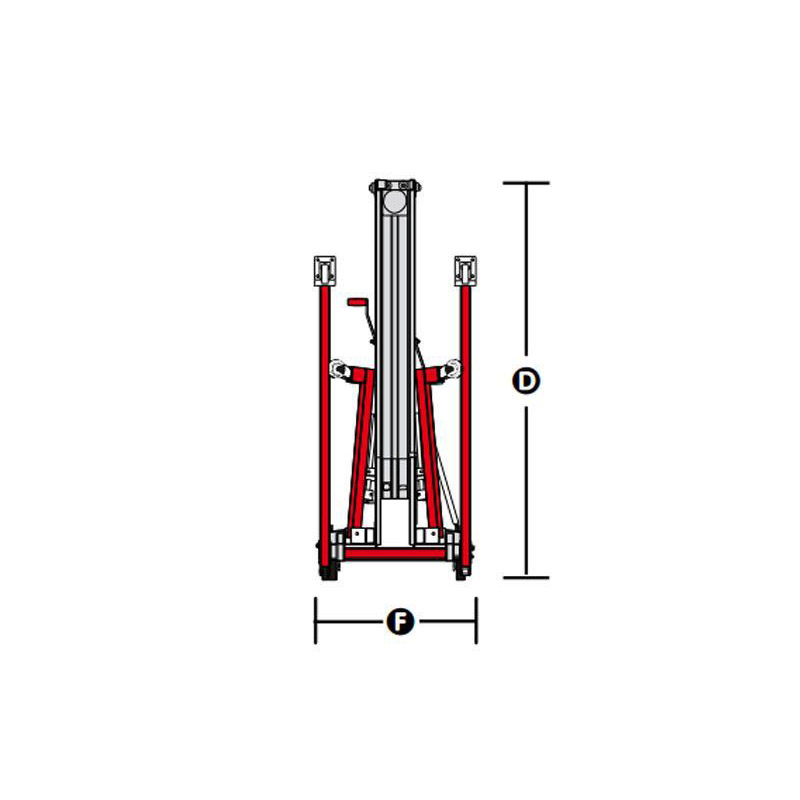

Height-stowed D

2.05m

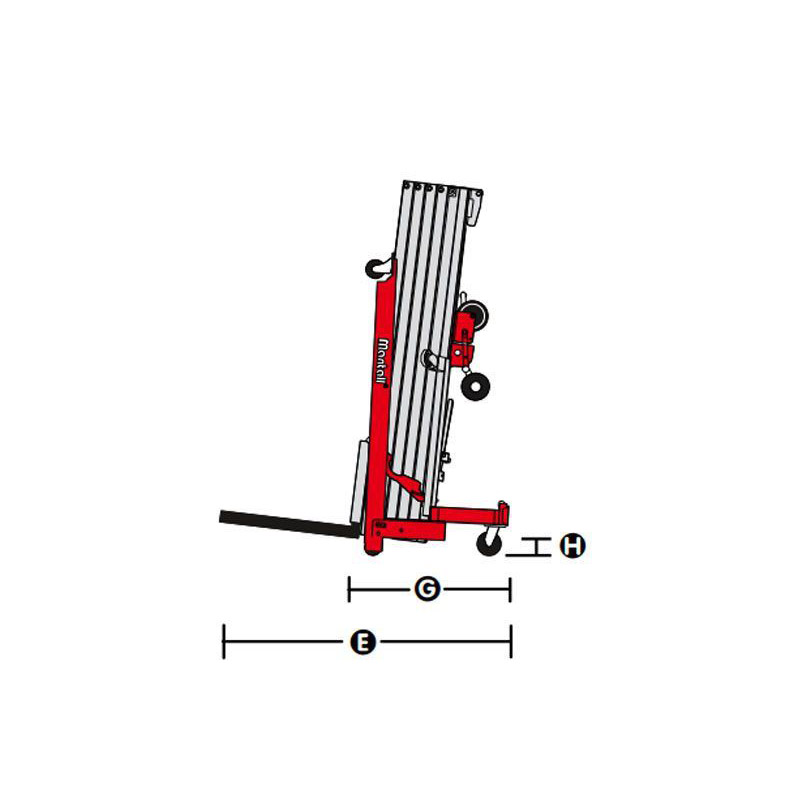

Length-stowed E

0.77m

Length-operating K

2.2m

Width-stowed F

0.79m

Stabilizers lowered

1.9m

Load height minimum

0.15m

Load center (46 cm)

363kg

Load center (61cm)

272kg

Load center (107cm)

159kg

Power

Single speed winch

Kaal 203 kg
Mõõtmed 77 × 79 × 205 cm

Standard Features
Incorporates a silent ratchet system
Transportation wheels
Roller wheels with brake
Standard forks
Telescopic mast design
Solid steel base

Optional
Adjustable forks
Flat forks
Boom
Pipe cross forks
Load platform
Anti-fall function
