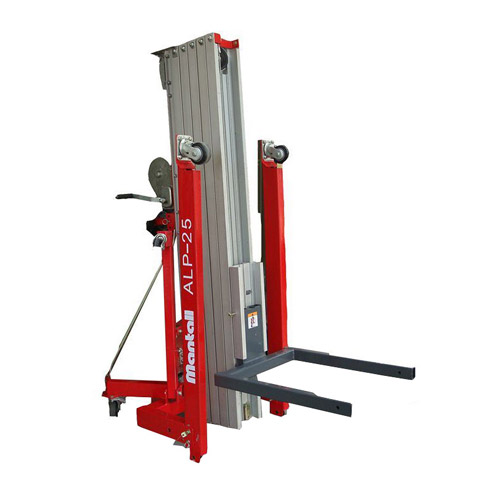

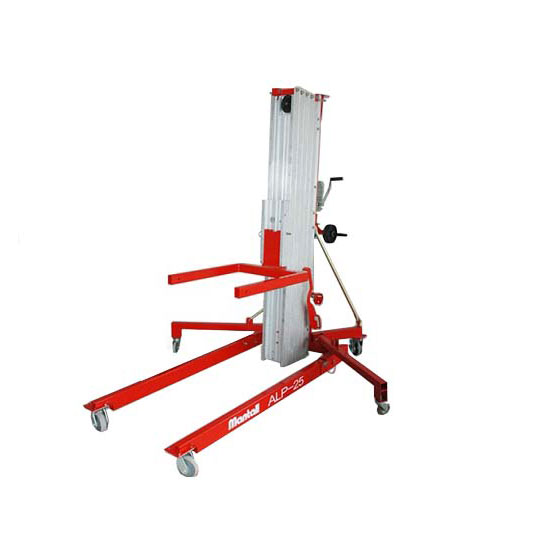

Mantall ALP-25

ALP-25

The Mantall ALP-25 super material lift can lift a heavy load of 295kg up to 7.95 meters in height. The ALP series super material lift is a manually operated material lift with no power source required.

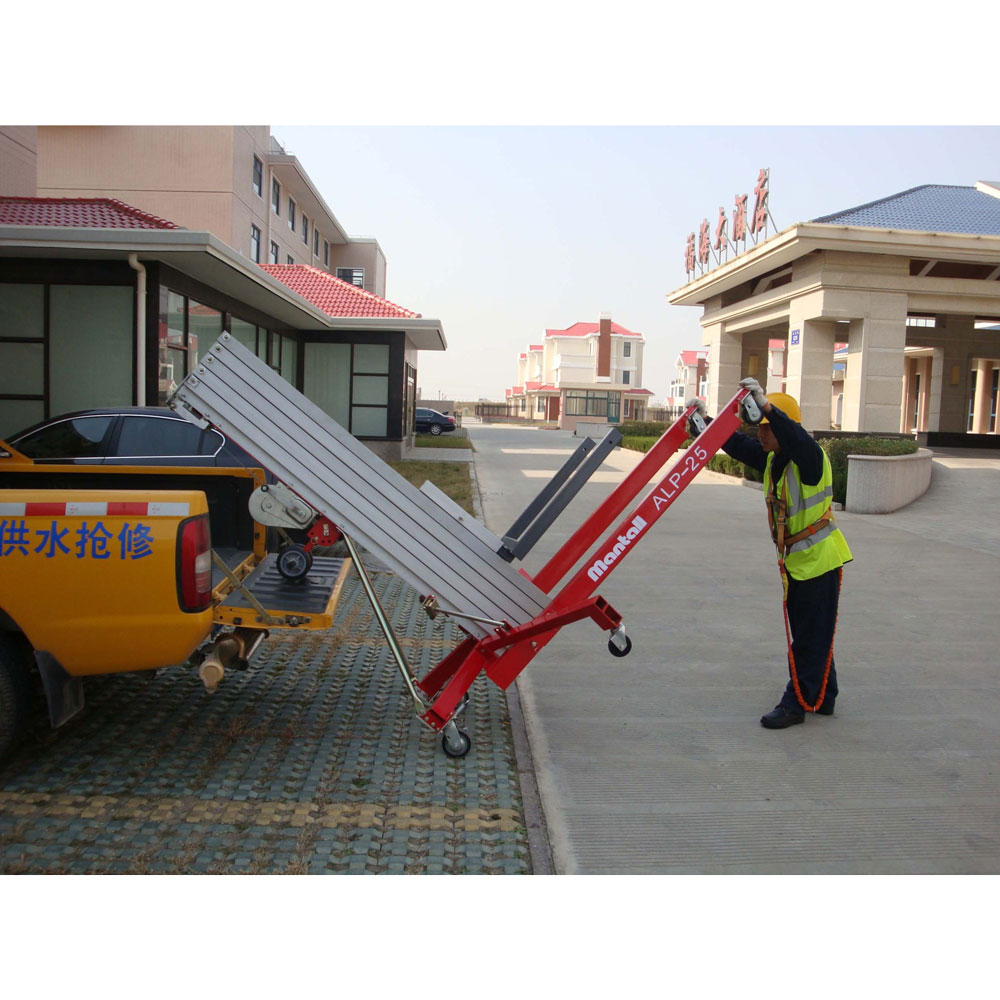

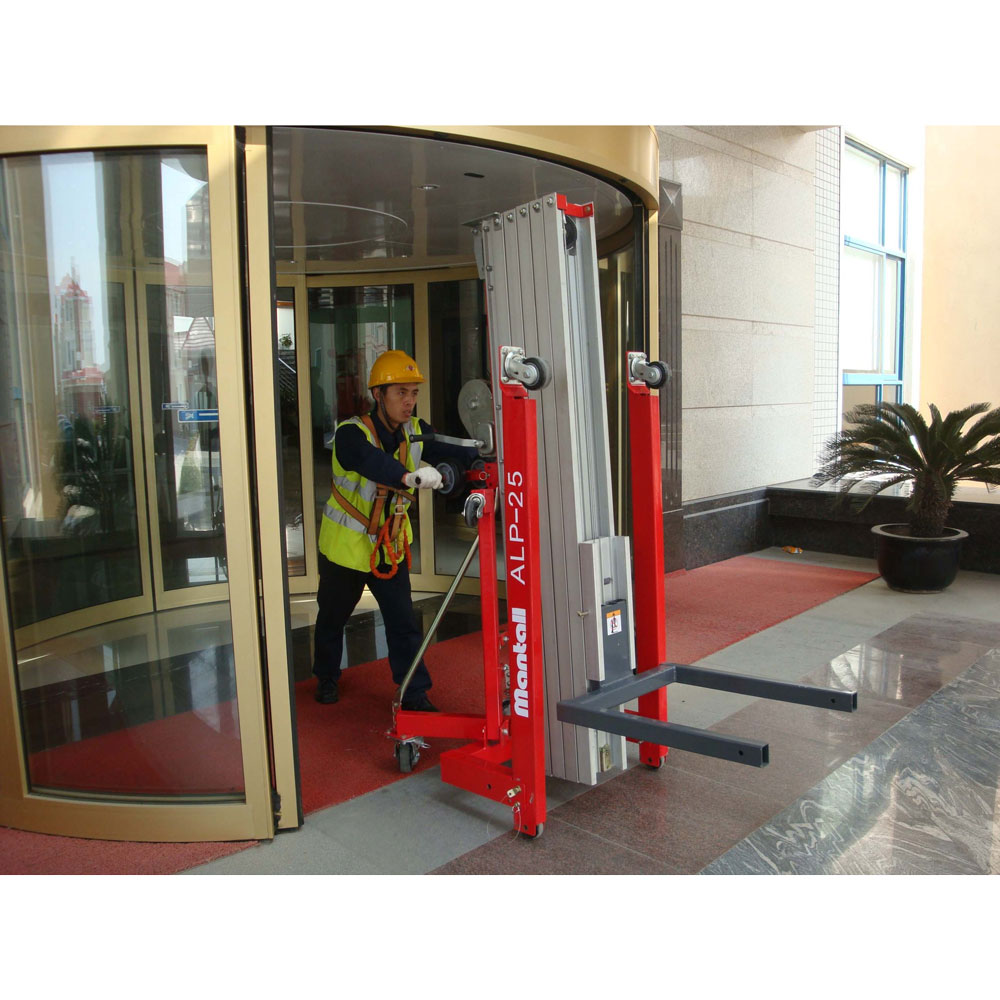

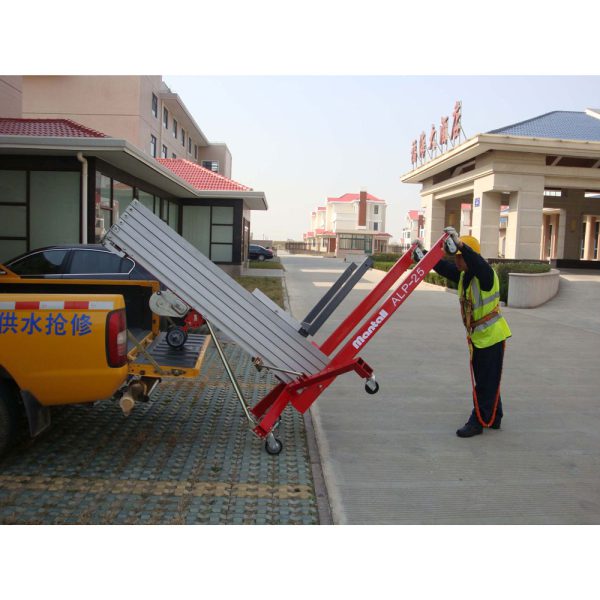

The compact structure, lightweight and portable design enable it to effortlessly pass through standard doorways, as well as easily to be set up and loaded into a truck. The product is ideal for applications requiring lifting tasks, such as warehouse picking, ducting and ventilation installation, stage construction, HVAC repairing, etc.

Max height: 7.95m
Max load: 295kg
Product height: 2,07m
Product width: 0,79m

3 519(eks. mva)

Saada taotlus
Standard height forks-up H1

7.95m

Standard height forks-down H2

7.43m

Height-stowed D

2.07m

Length-stowed E

0.83m

Length-operating K

2.2m

Width-stowed F

0.79m

Stabilizers lowered

1.9m

Load height minimum

0.15m

Load center (46 cm)

295kg

Load center (61cm)

204kg

Load center (107cm)

113kg

Power

Single speed winch

Kaal 236 kg
Mõõtmed 83 × 79 × 207 cm

Standard Features
Incorporates a silent ratchet system
Transportation wheels
Roller wheels with brake
Standard forks
Telescopic mast design
Solid steel base

Optional
Adjustable forks
Flat forks
Boom
Pipe cross forks
Load platform
Anti-fall function
